Automatic Transmission/Transaxle: Testing and Inspection

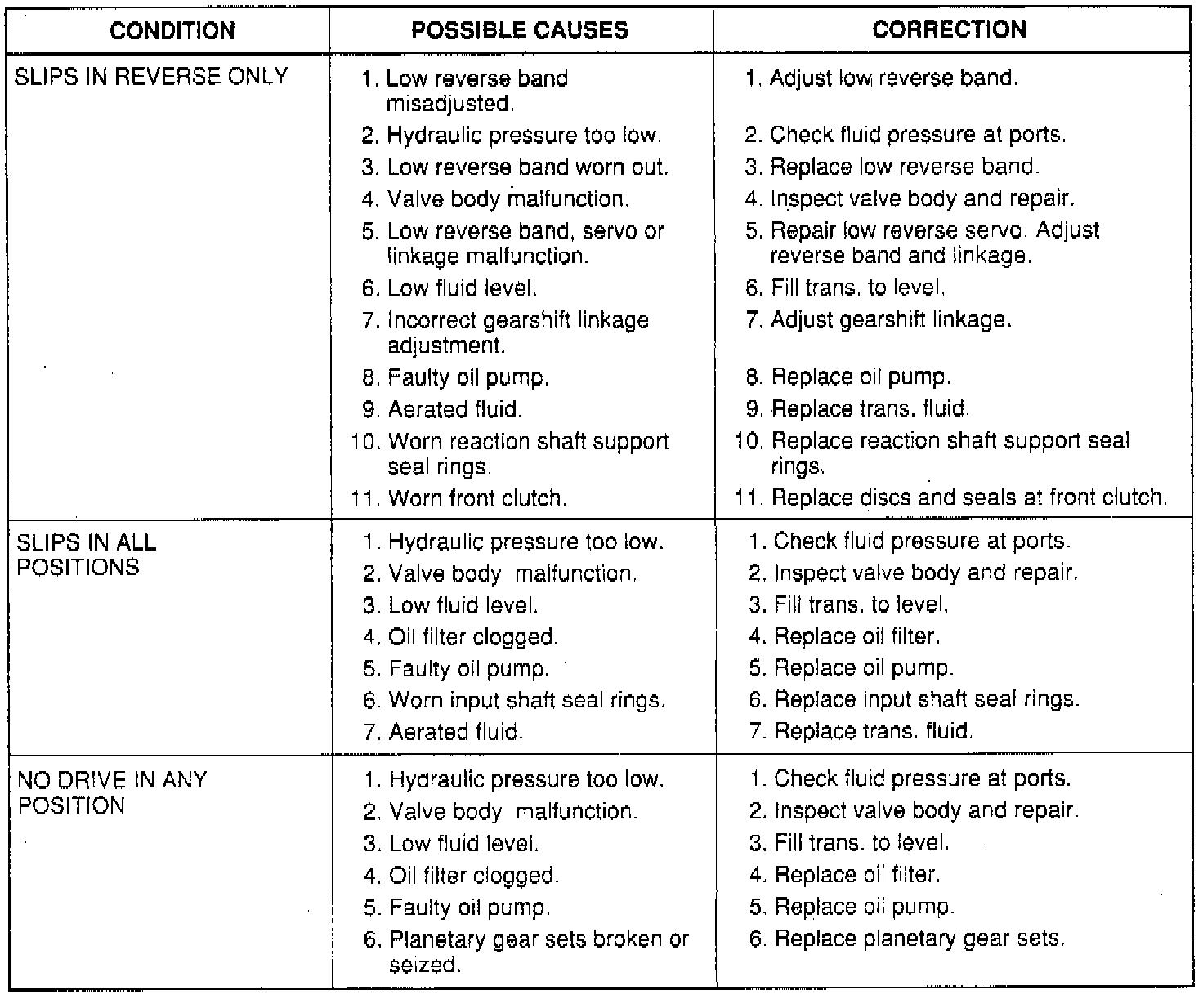

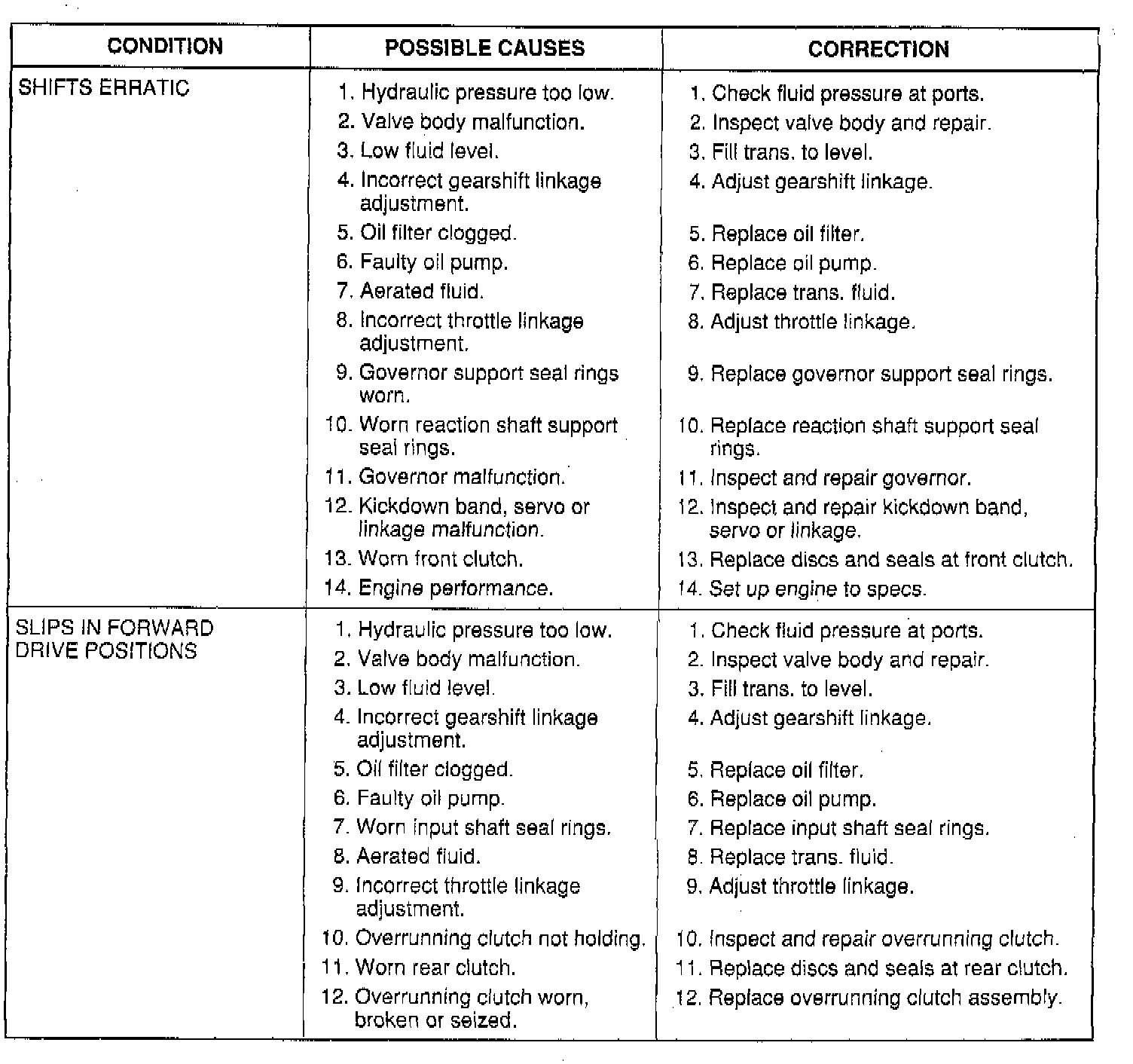

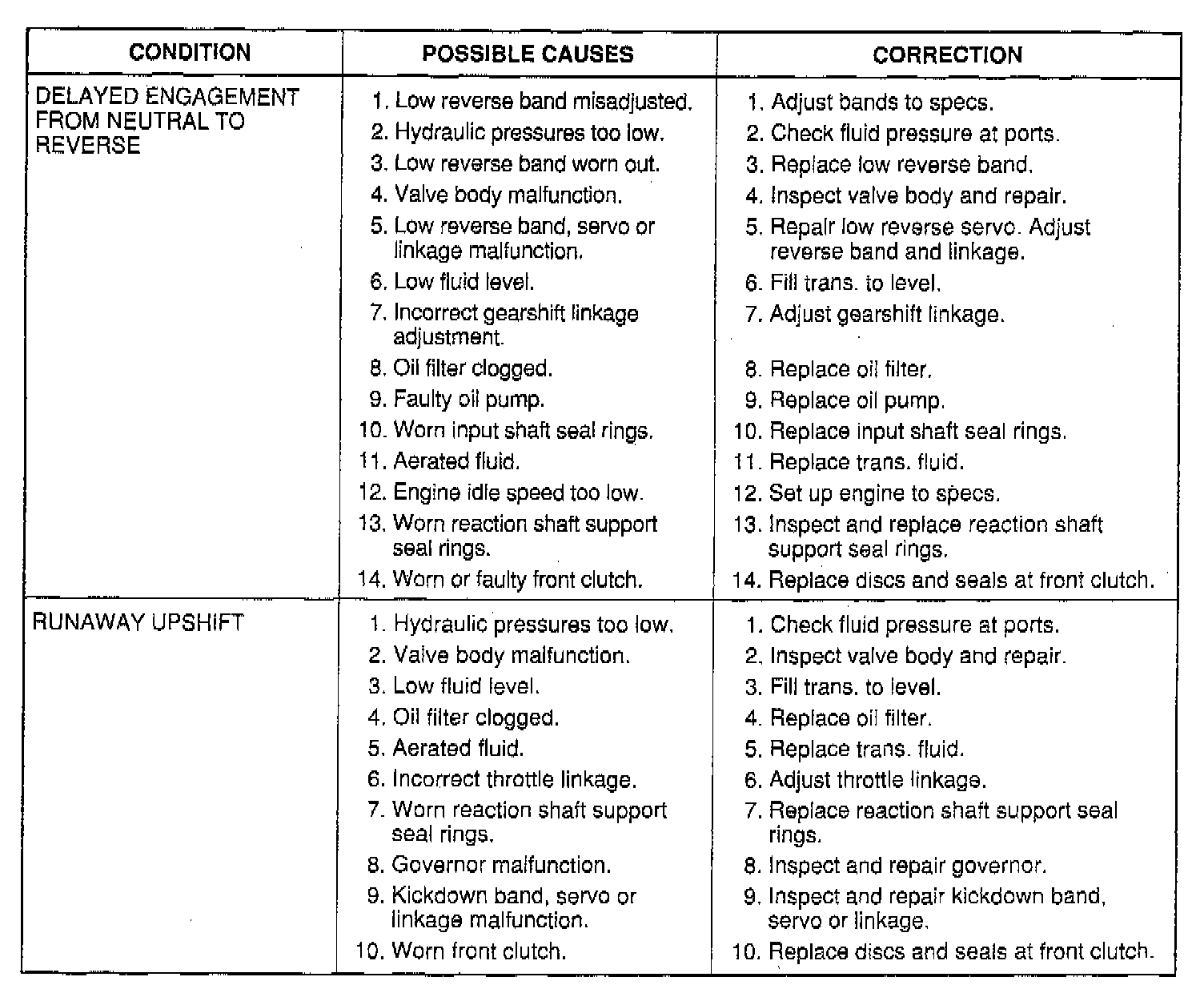

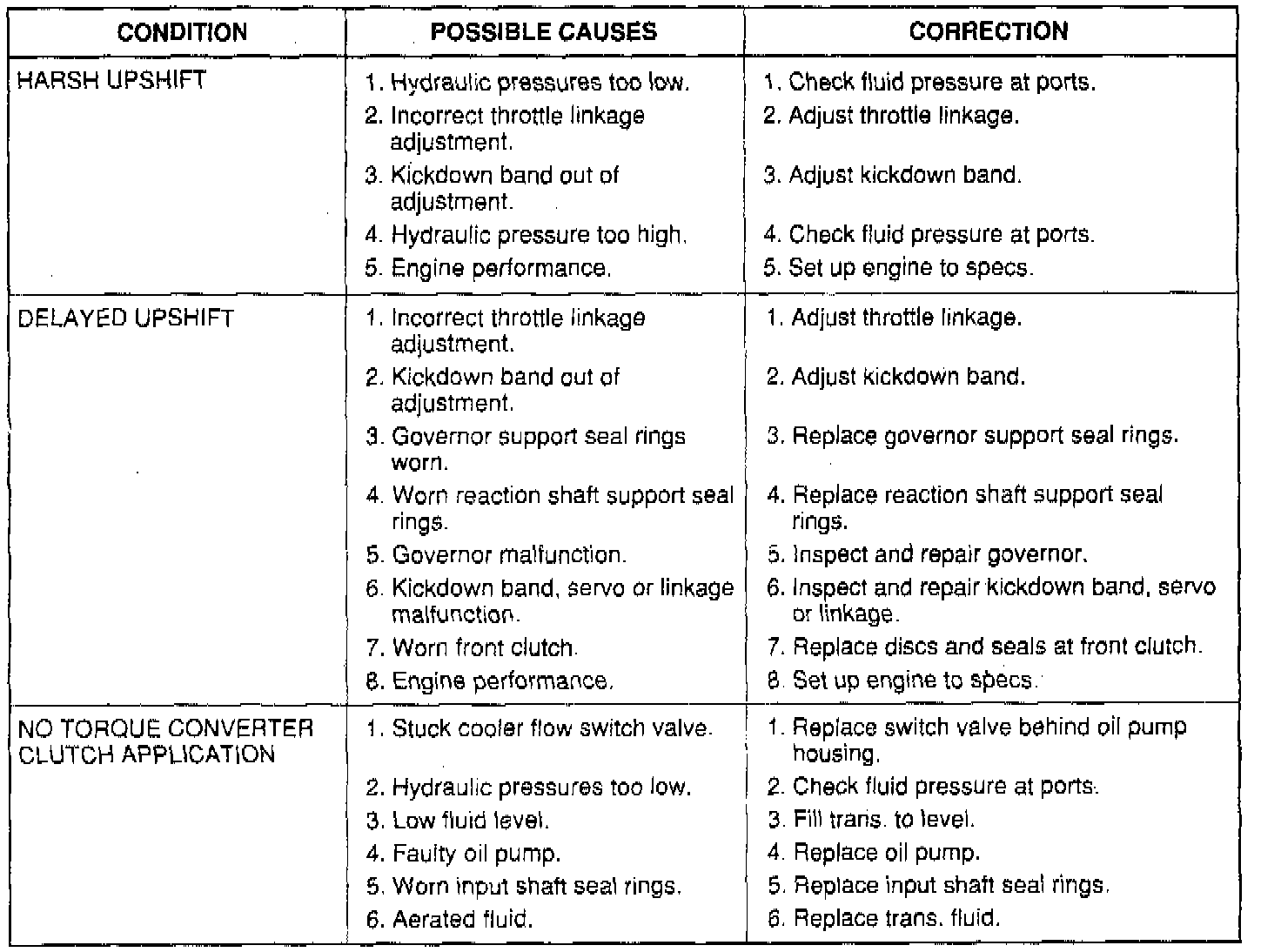

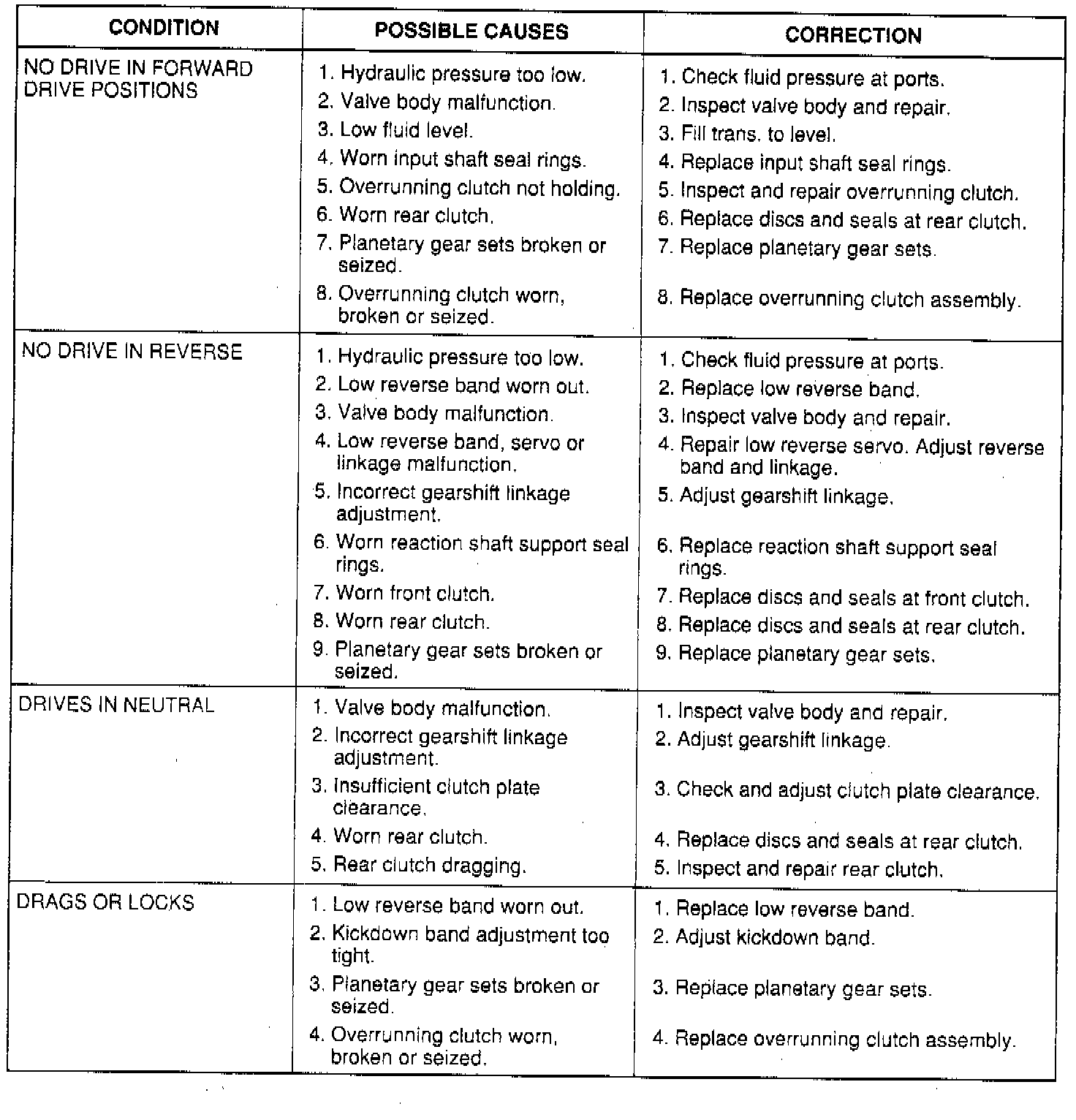

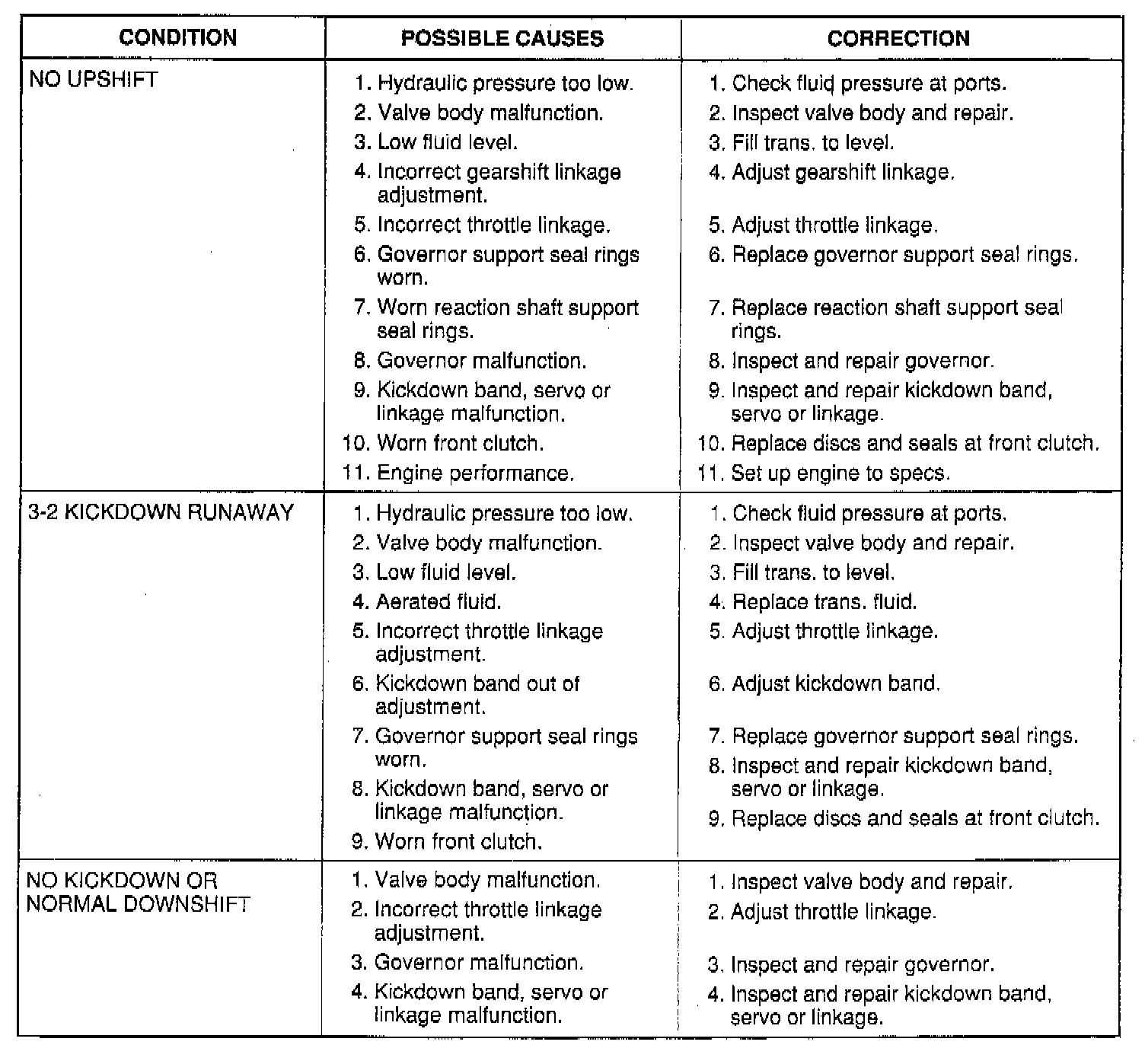

The illustrated charts should be used to help diagnose hydraulic or mechanical faults in the transaxle.
The illustrated charts should be used to help diagnose hydraulic or mechanical faults in the transaxle.
