Throttle Position Sensor: Locations

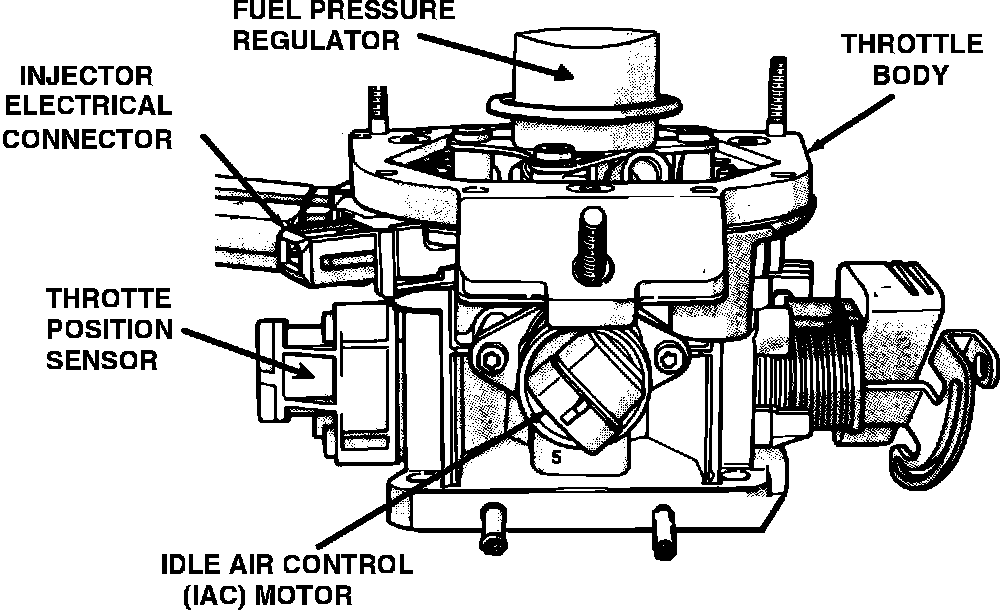

Throttle Body View With Idle Air Control (IAC) Motor:





Sensor mounted on throttle shaft.
