Canister Purge Solenoid: Service and Repair

Canister Purge Solenoid:

REMOVAL

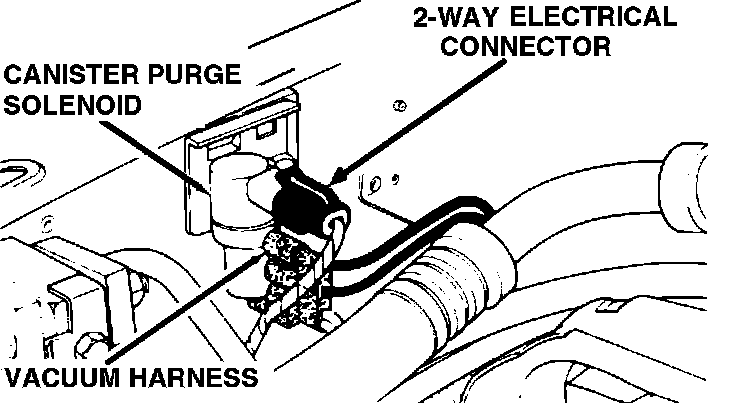

1. Remove vacuum hose and electrical connector from solenoid.
2. Depress tab on top of solenoid. Slide the solenoid down and out of bracket.

INSTALLATION
1. Slide the solenoid into bracket from the bottom.
2. Connect vacuum hose and electrical connector to solenoid.
