NTC-15A Checking the Minimum Idle Air Flow
NTC-15A Checking the Minimum Idle Air Flow

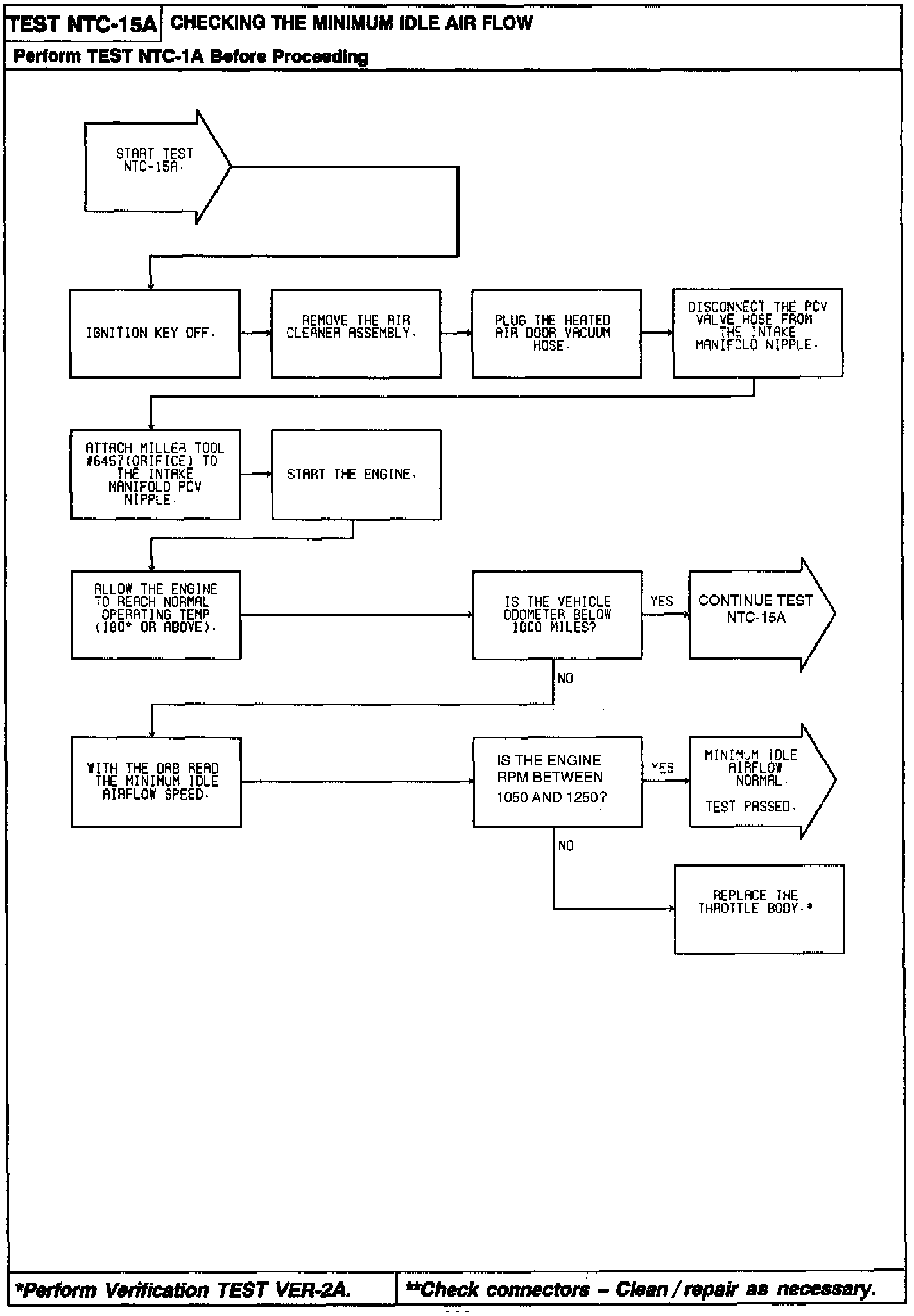

Minimum Idle Air Flow Test (Part 1 Of 2):

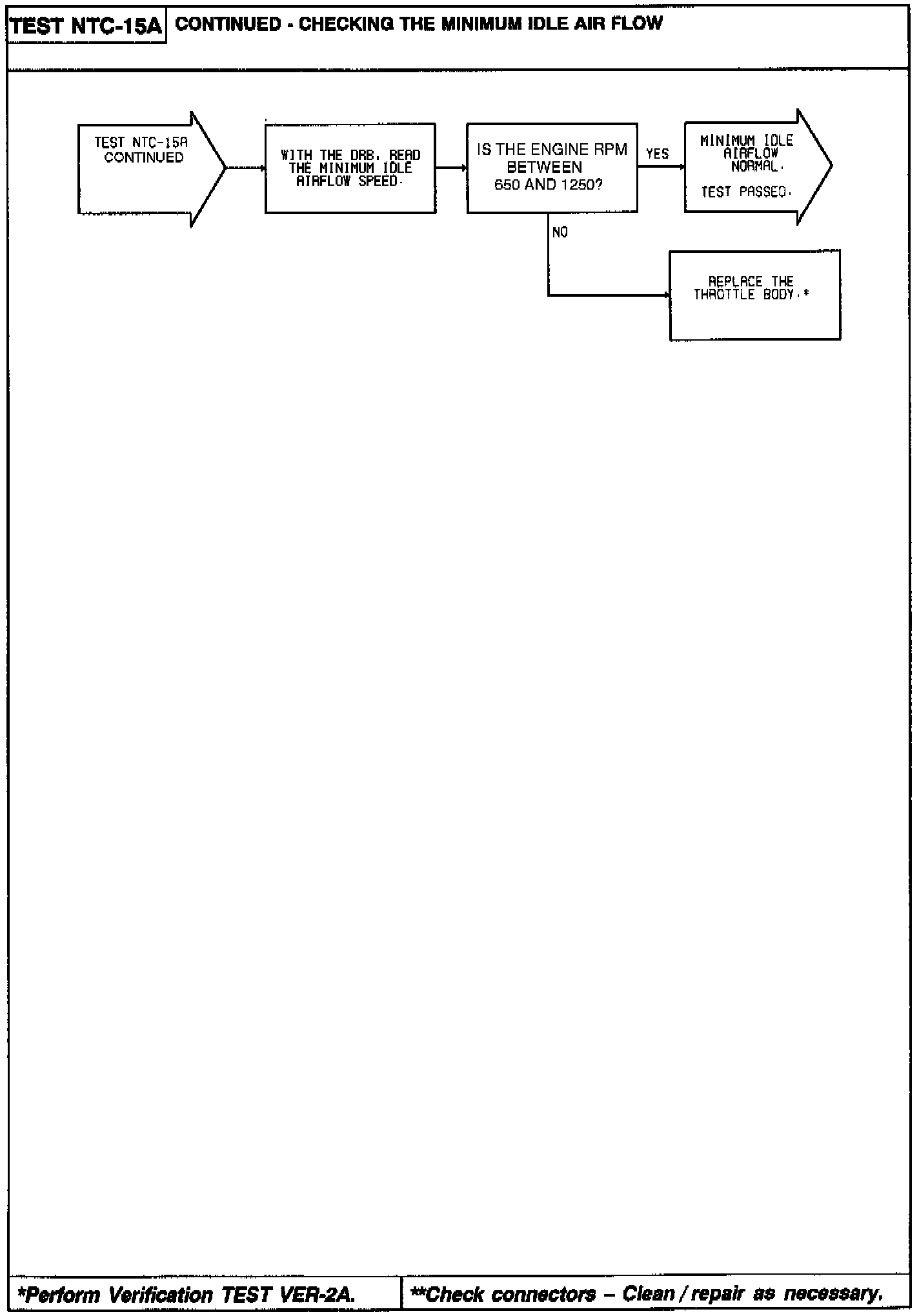

Minimum Idle Air Flow Test (Part 2 Of 2):
