TC-7C Code 15 No Vehicle Speed Sensor Signal

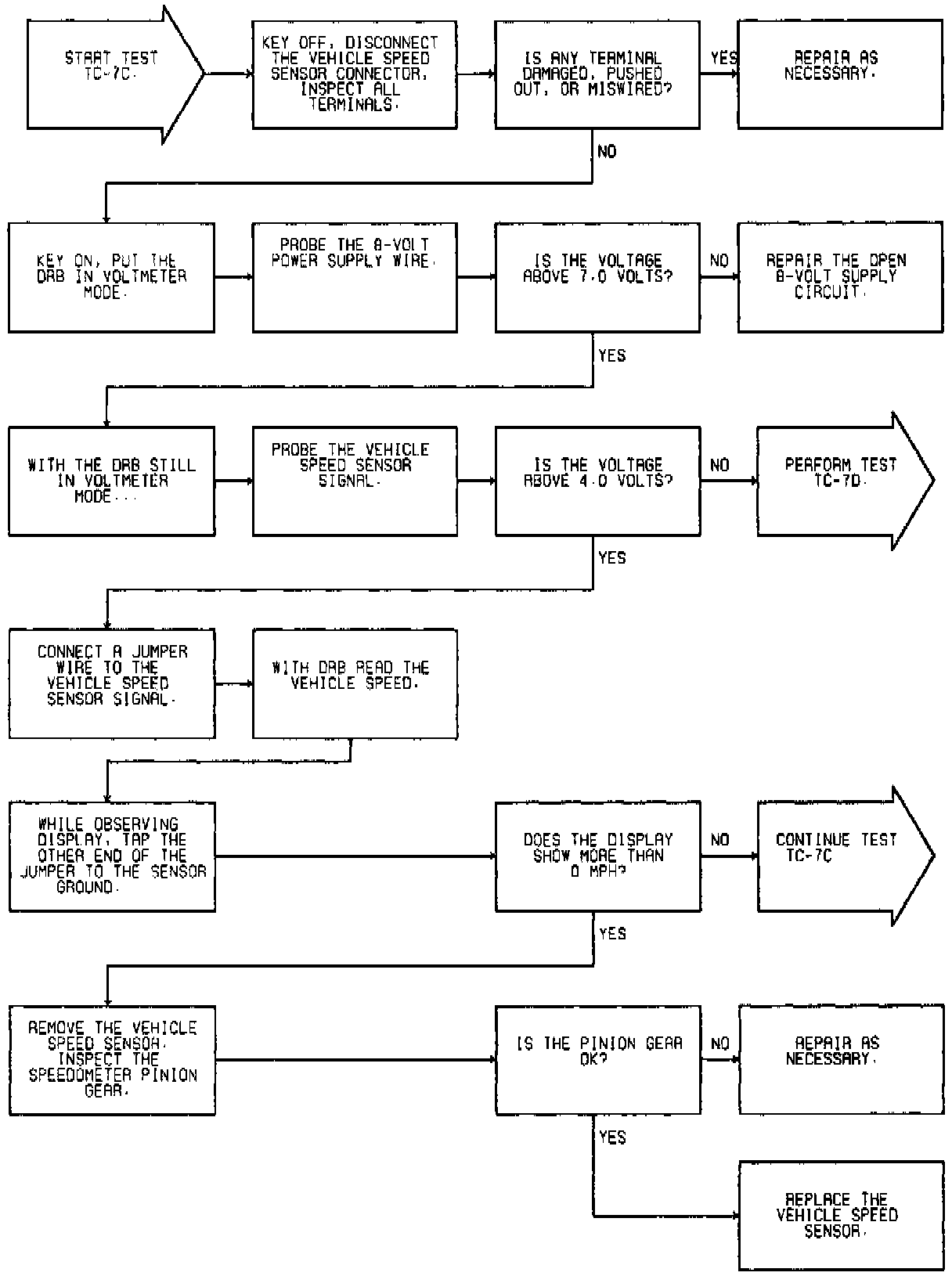

Fig. 4 Code 15 (Test TC-7C): No Vehicle Speed Sensor Signal (Part 1 Of 2):

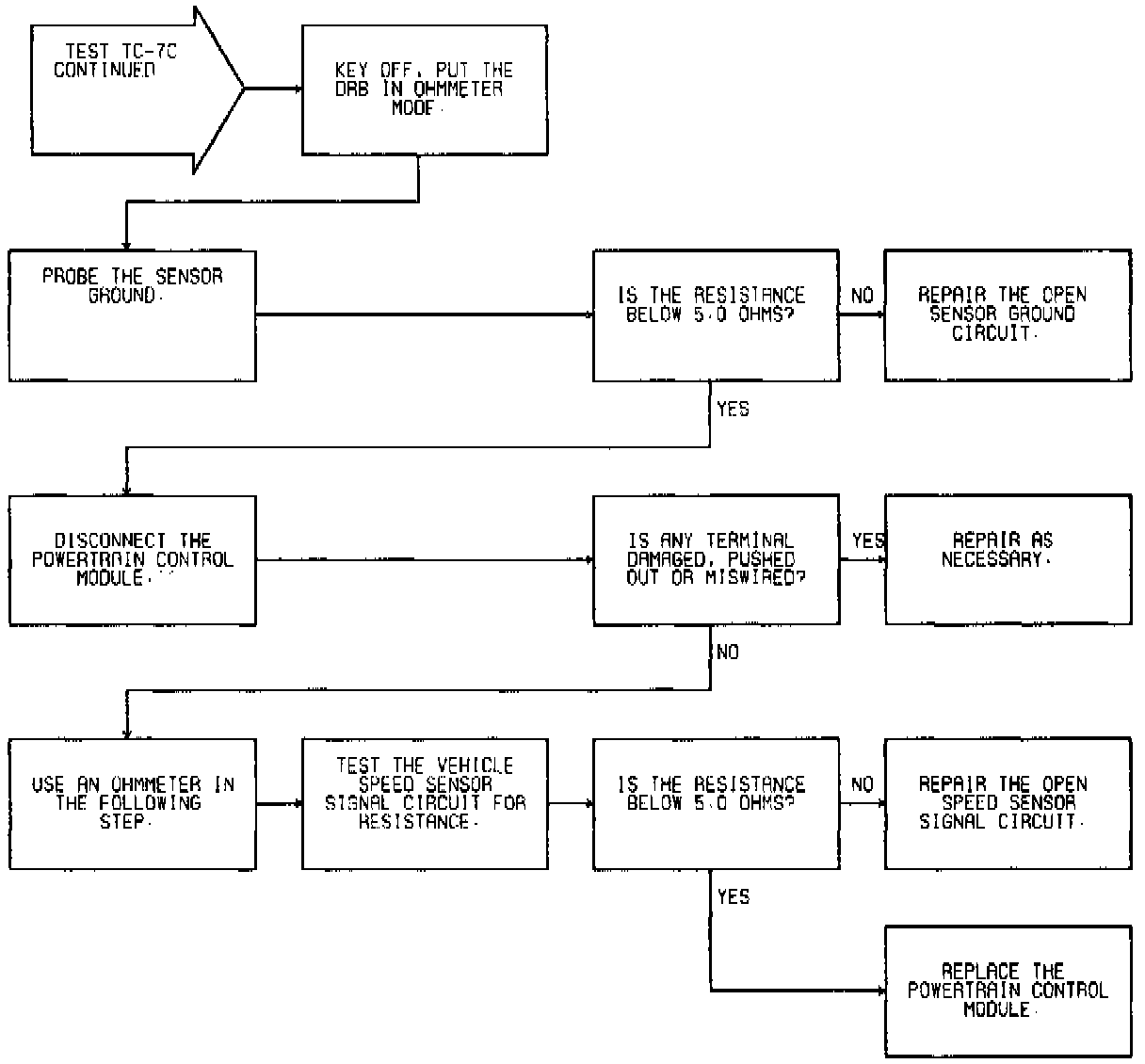

Fig. 4 Code 15 (Test TC-7C): No Vehicle Speed Sensor Signal (Part 2 Of 2):
