TC-37A Code 34 Speed Control Solenoid Circuits

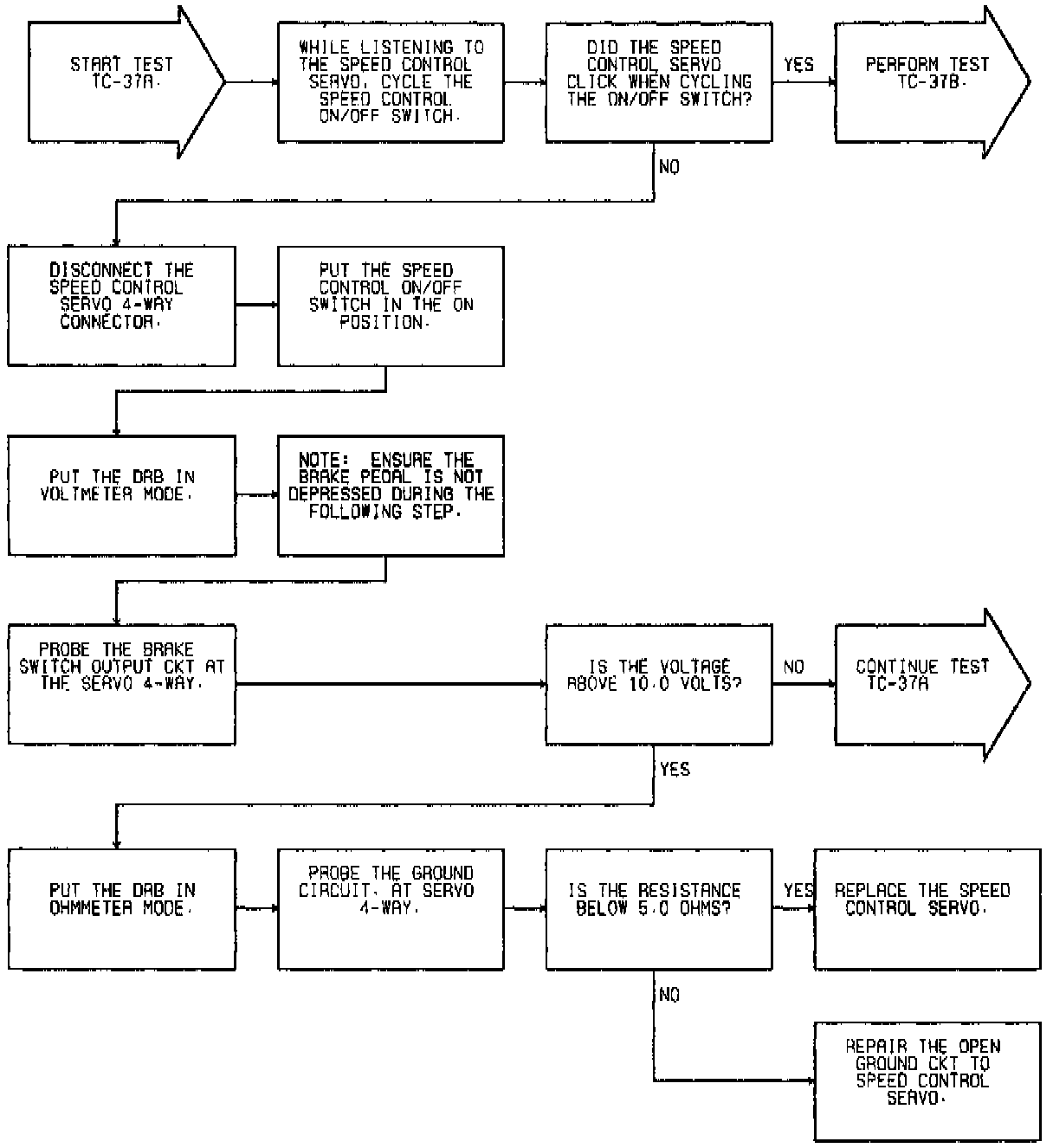

Fig. 6 Code 34 (Test TC-37A): Speed Control Solenoid Circuits (Part 1 Of 2):

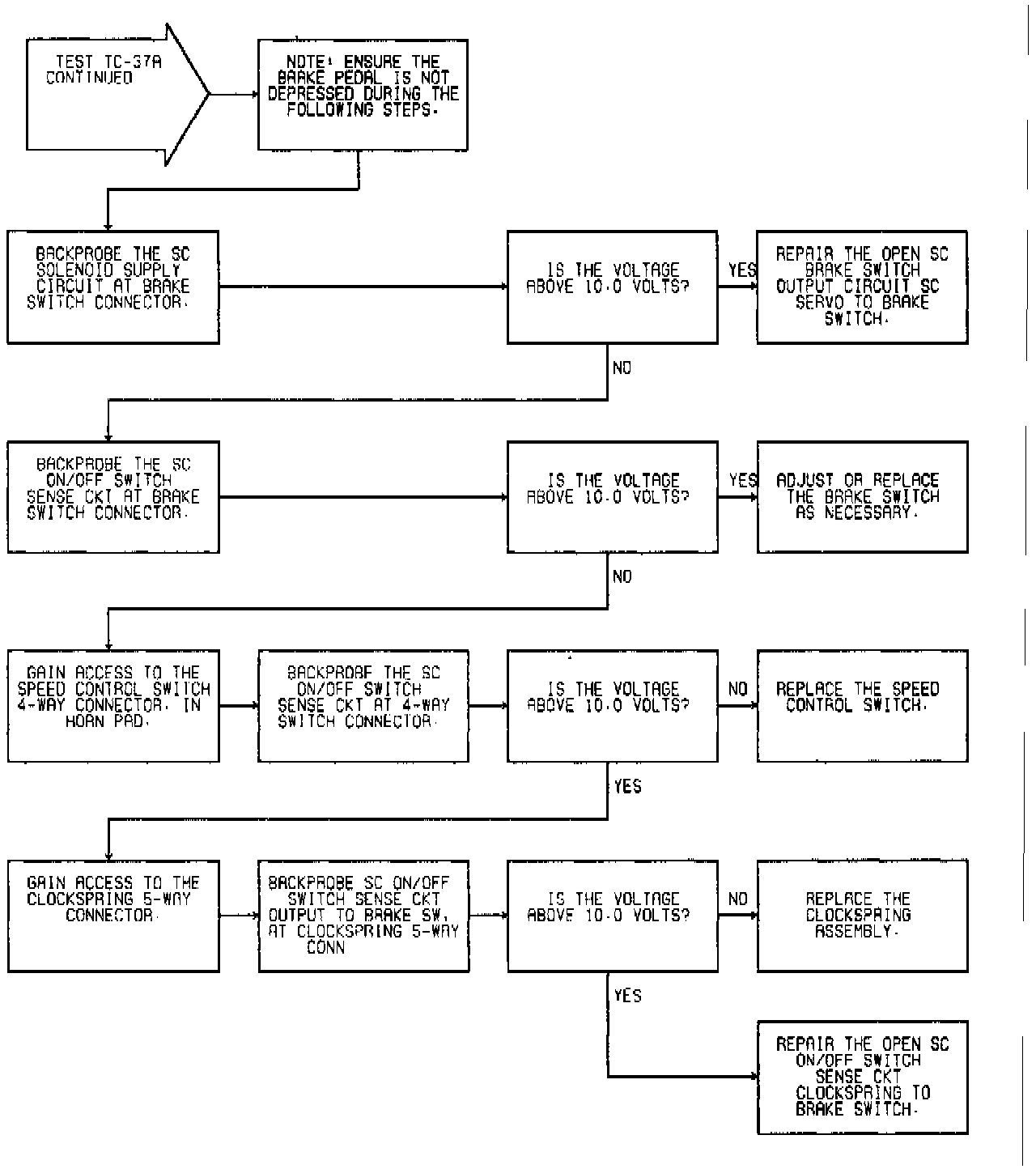

Fig. 6 Code 34 (Test TC-37A): Speed Control Solenoid Circuits (Part 2 Of 2):
