Home >> Dodge >> 1994 >> Intrepid V6-201 3.3L >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Diagrams >> Electrical Diagrams >> Without Daytime Running Lamps

Without Daytime Running Lamps

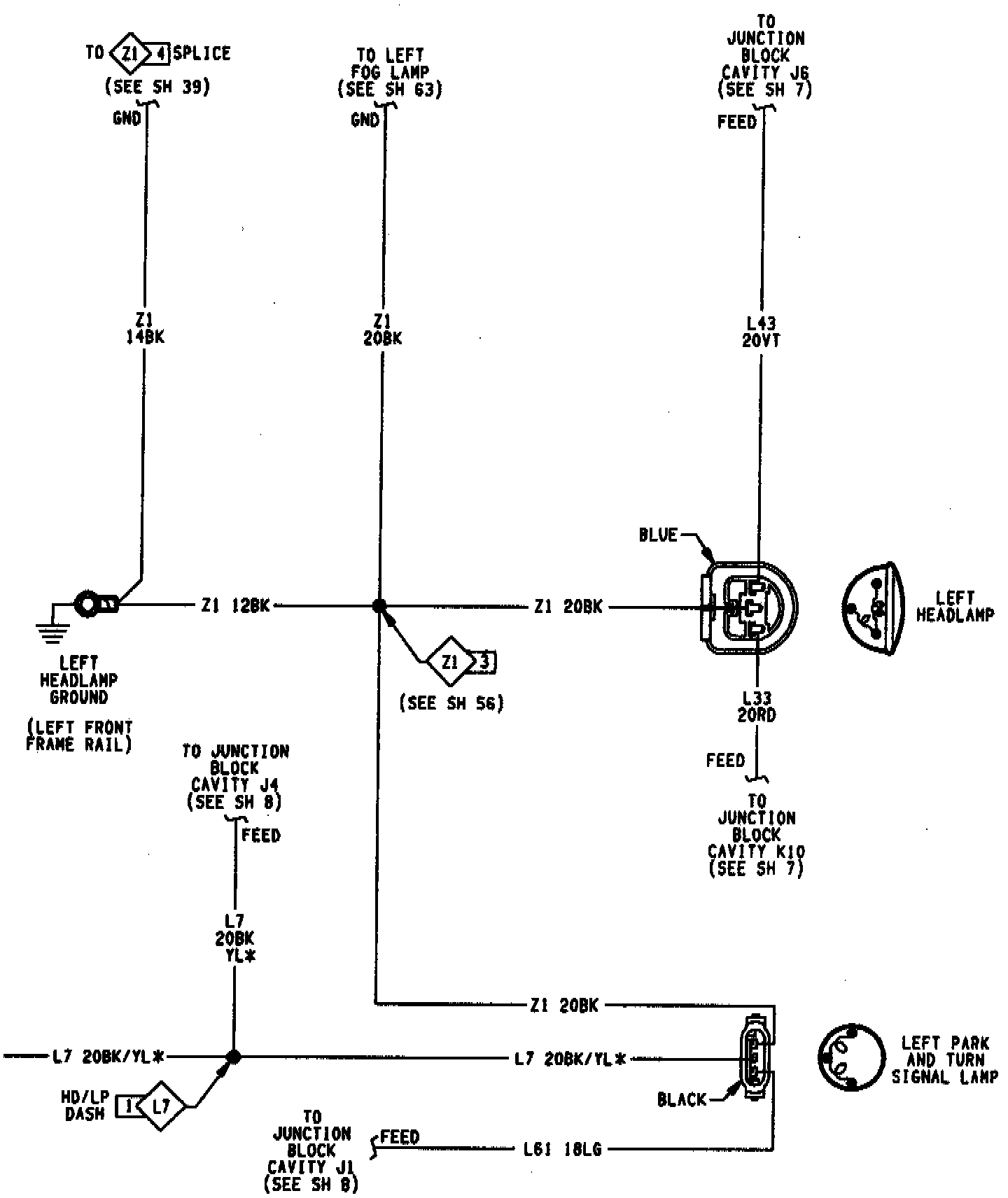

Front End Lighting Without Daytime Running Lamps:

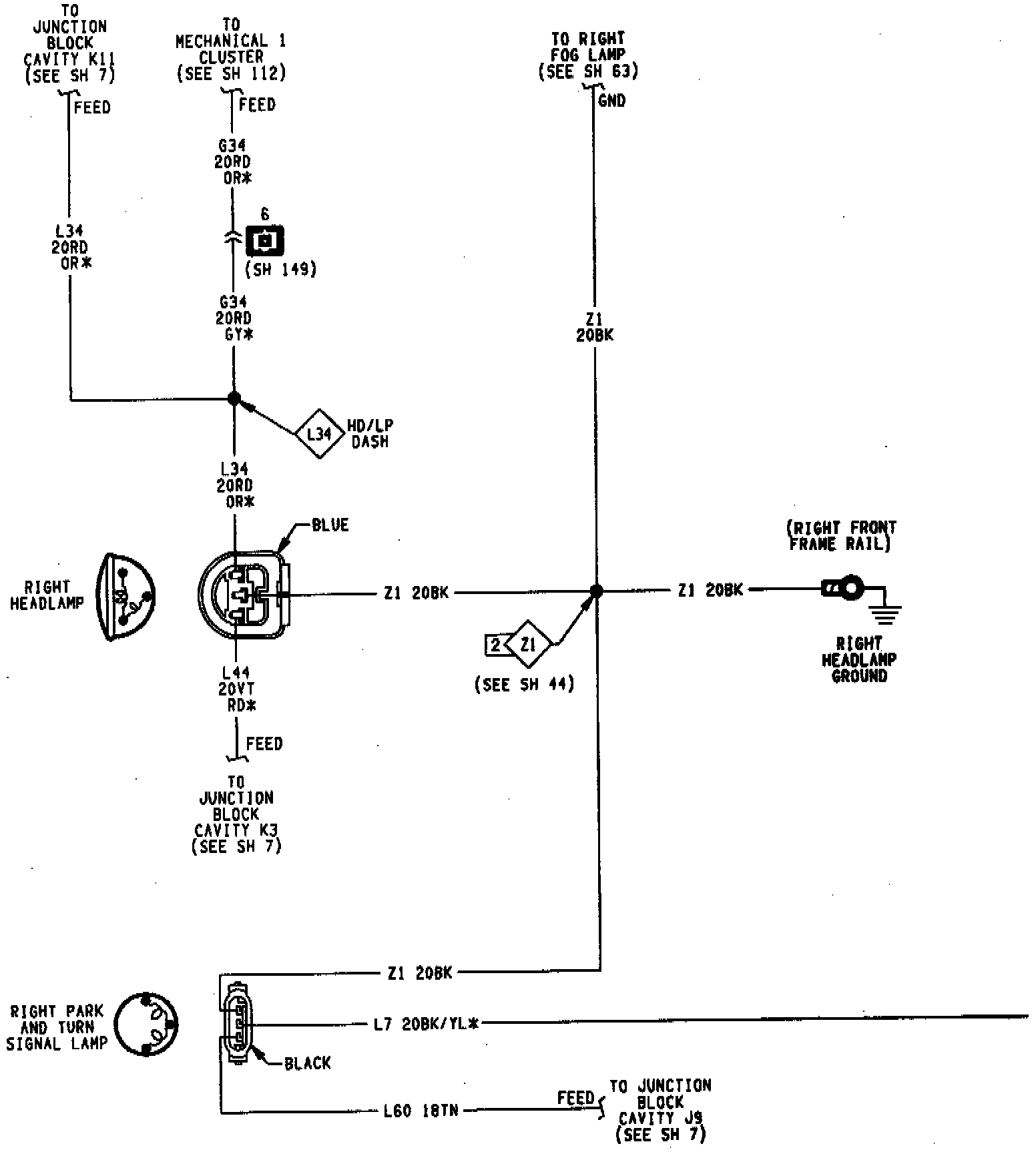

Front End Lighting Without Daytime Running Lamps:
