Without Automatic Temperature Control (ATC)

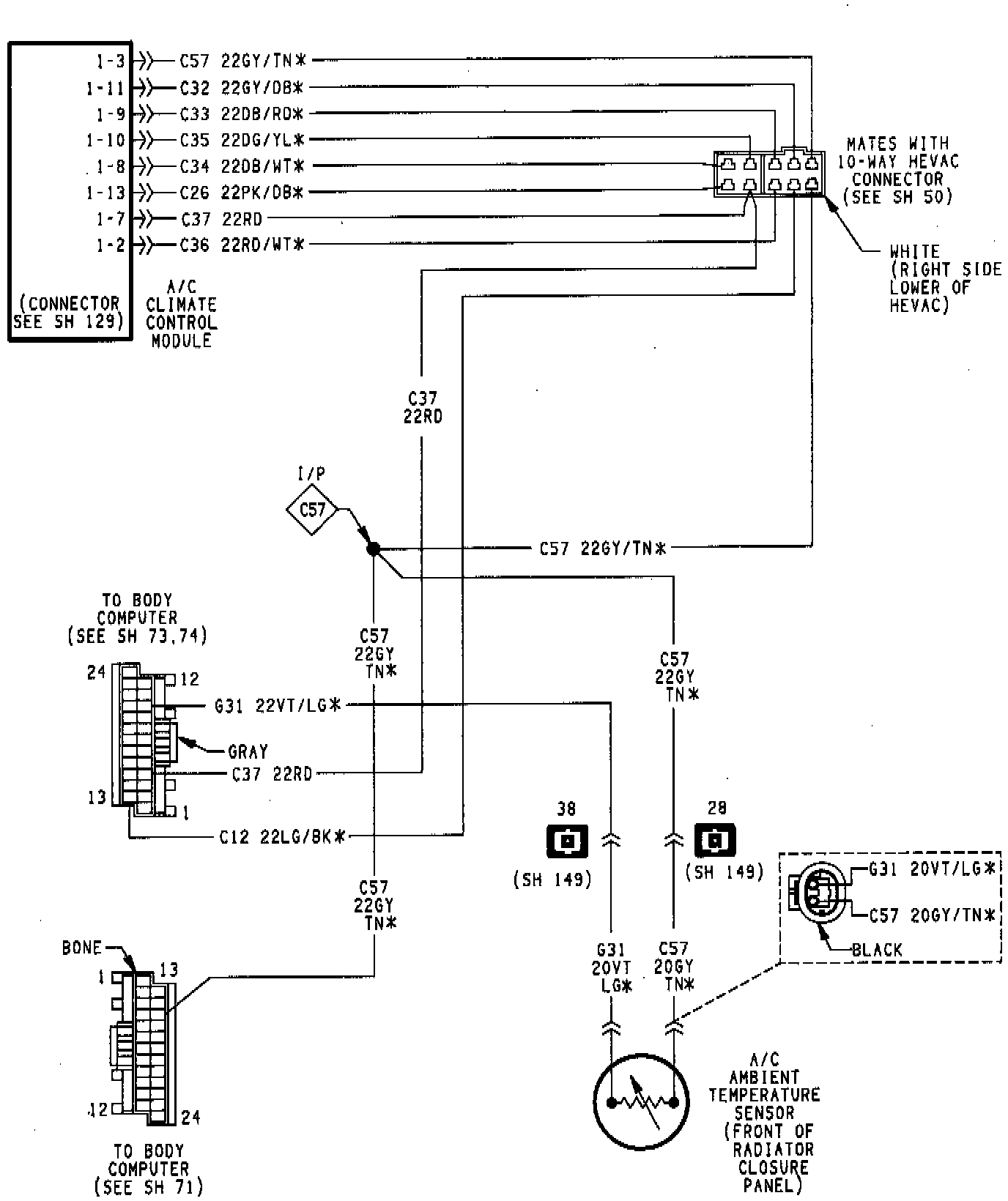

Sheet 45a - Radiator Fan Motor/RFI Module:



Air Conditioning And Heater System:

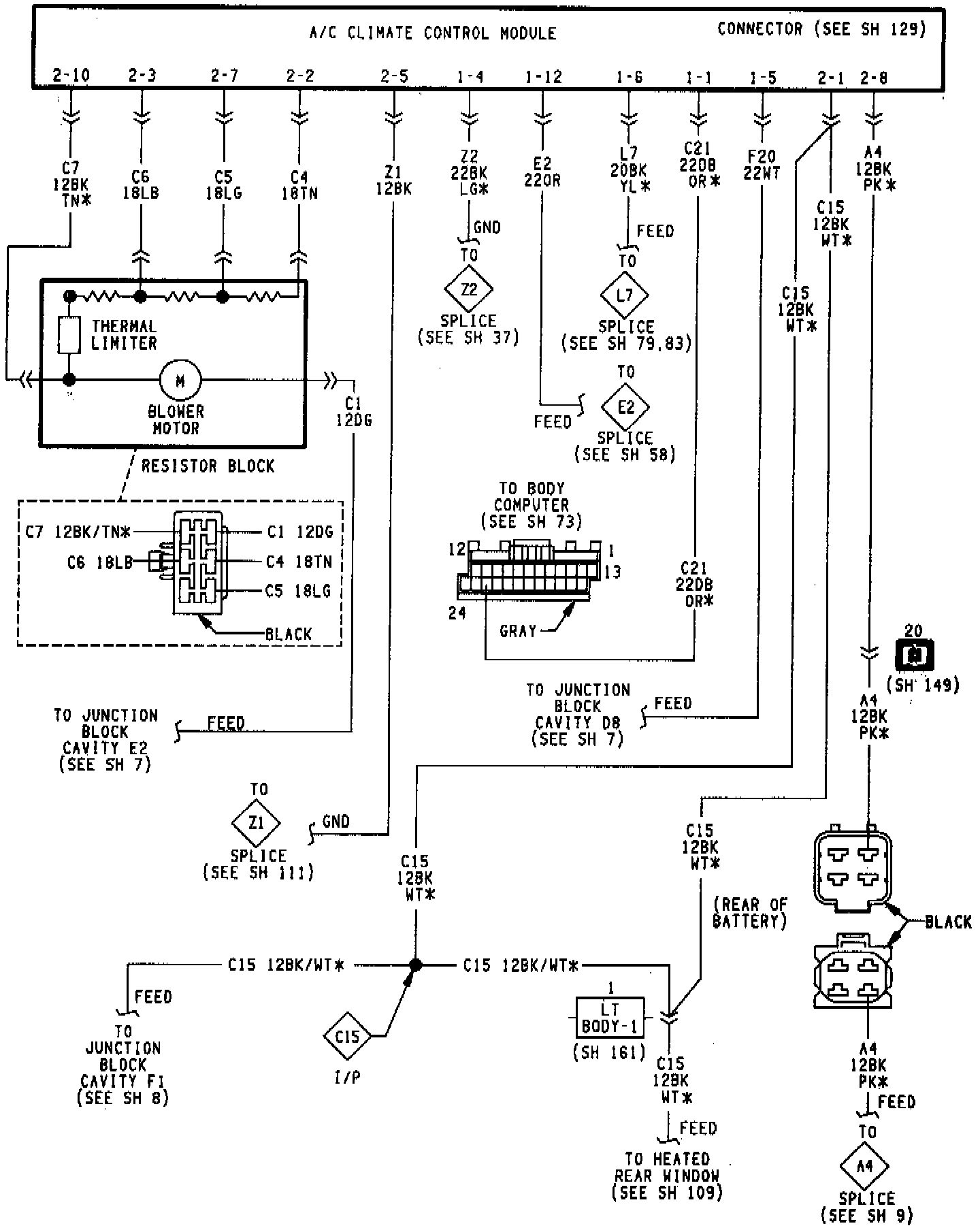

Air Conditioning And Heater System With Climate Control:



Air Conditioning And Heater System With Climate Control:



Air Conditioning Or Auto Temperature Control System:
