Camshaft Alignment - Manual Correction
NO: 09-05-94GROUP: Engine
DATE: Apr. 15, 1994
SUBJECT:
Service Manual Correction - 3.5L Engine Camshaft Alignment
THIS BULLETIN SUPERSEDES TECHNICAL SERVICE BULLETIN 09-16-93 DATED OCT. 22, 1993, WHICH SHOULD BE NOTED IN YOUR FILES. THE RIGHT CAMSHAFT TIMING POSITION HAS BEEN CORRECTED.
MODELS:
1993 - 1994 (LH) Concorde/Intrepid/Vision/LHS/New Yorker
DISCUSSION:

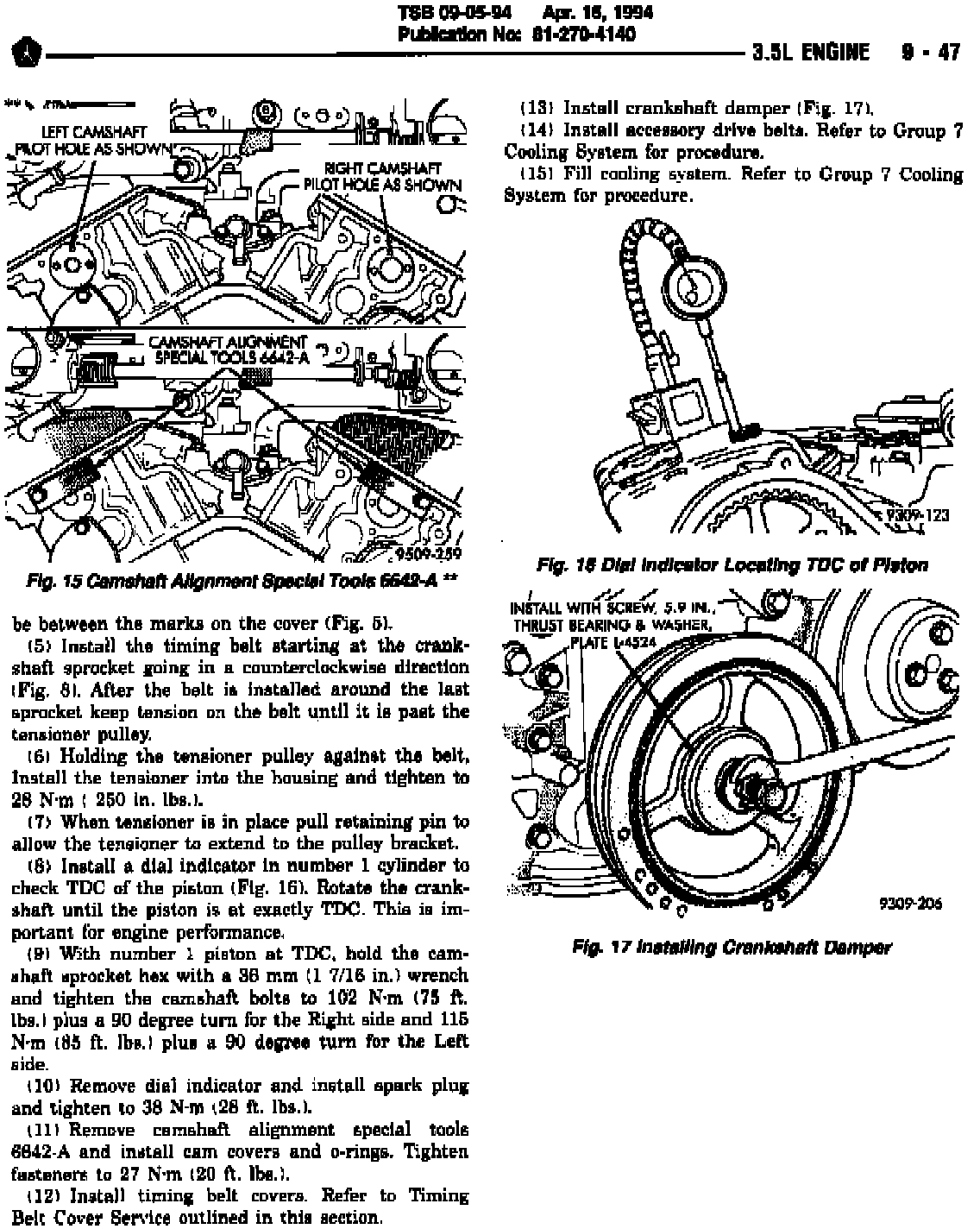

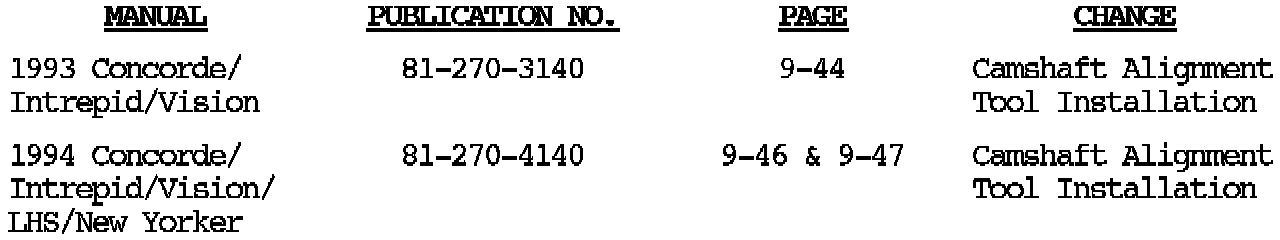

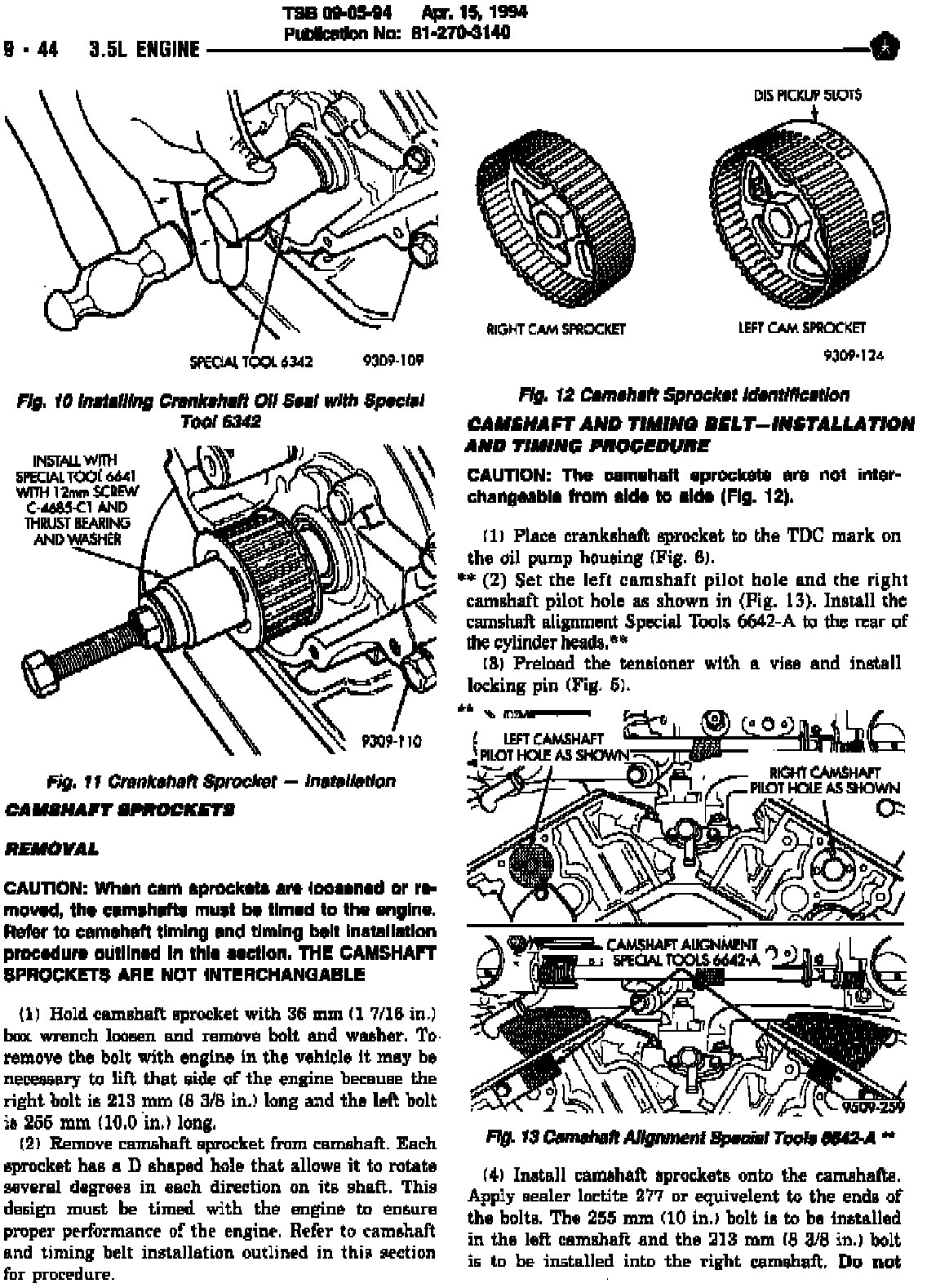

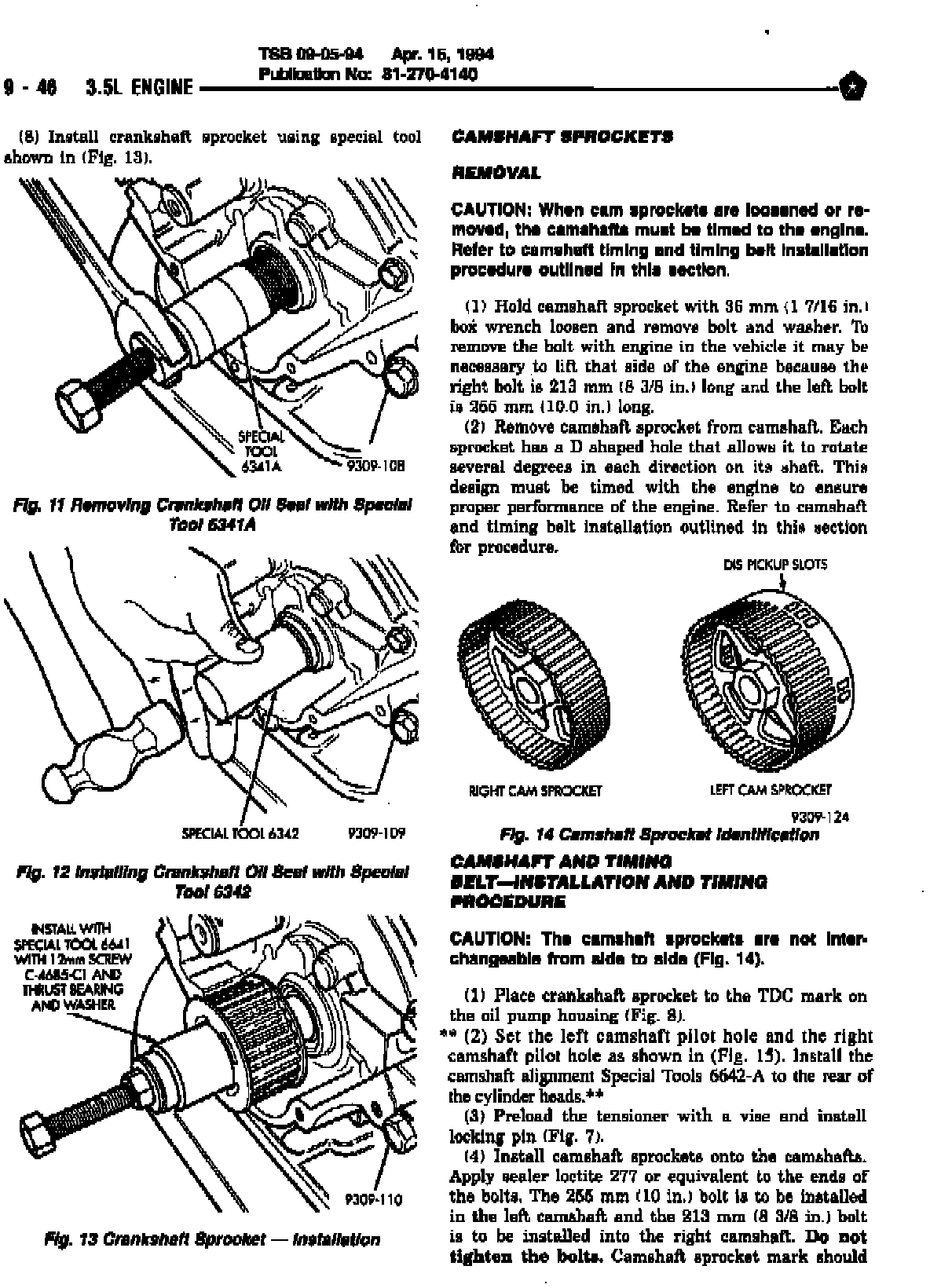

This technical service bulletin contains revised Service Manual pages. The revisions are highlighted with **ASTERISKS**.
Please insert the corrected pages in the appropriate Service Manual.
POLICY: Information Only
Attachments
