Intrepid V6-201 3.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Mechanical Diagrams
>>
Relay Box
Relay Box

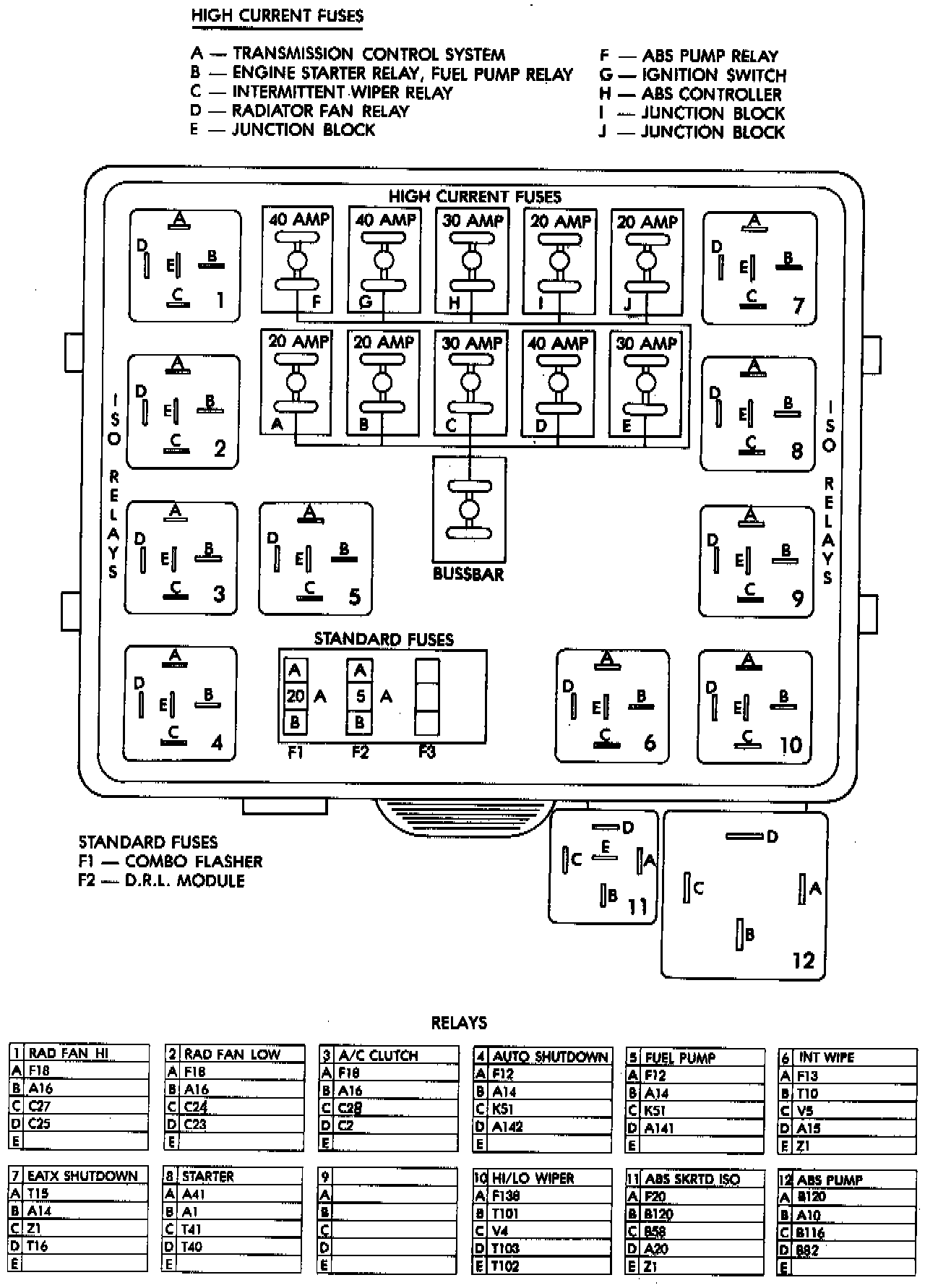

Power Distribution Center Identification:
Junction Block Identification:
