Fuse

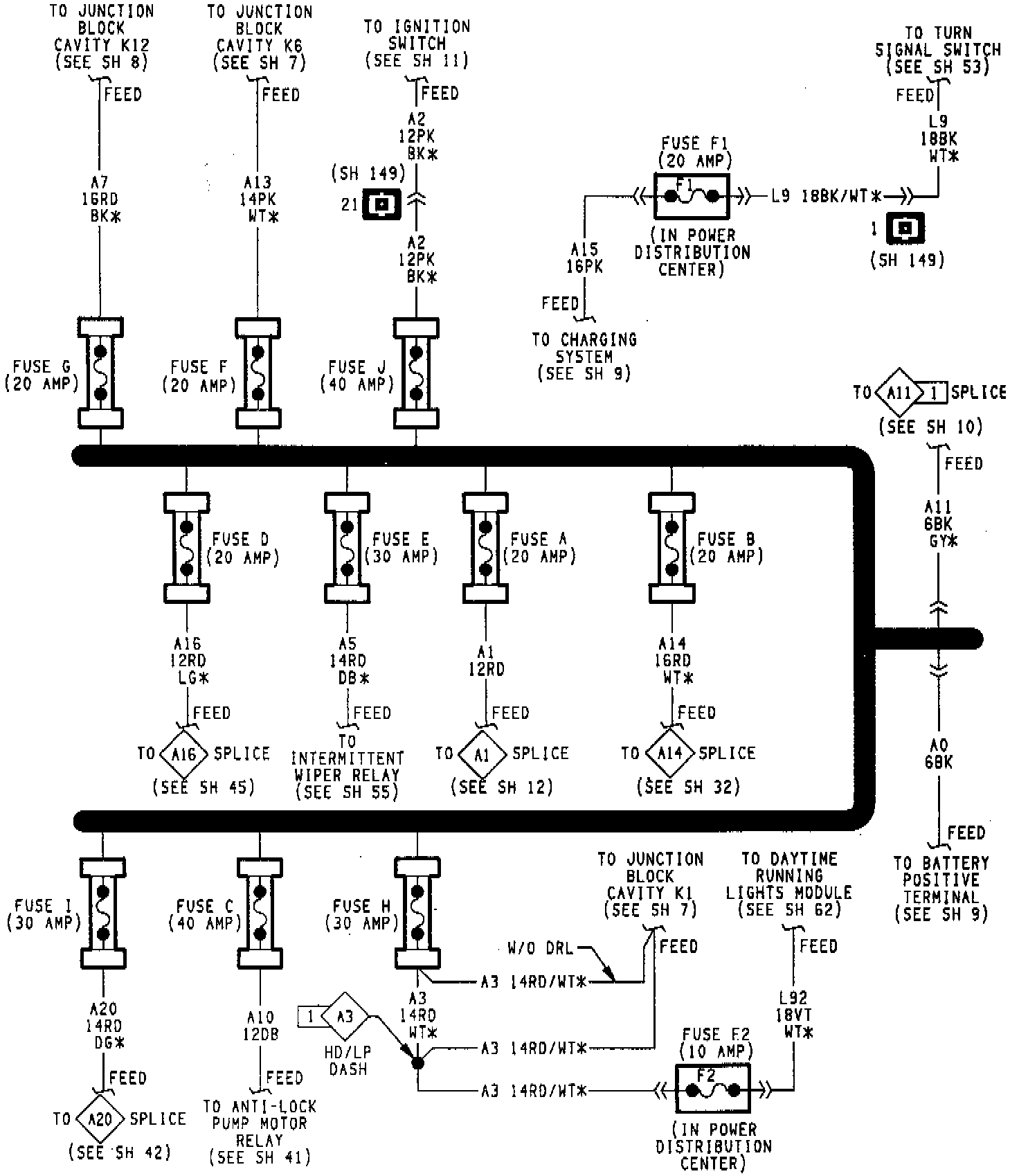

Fuse Application Chart:



Fuse Application Chart:

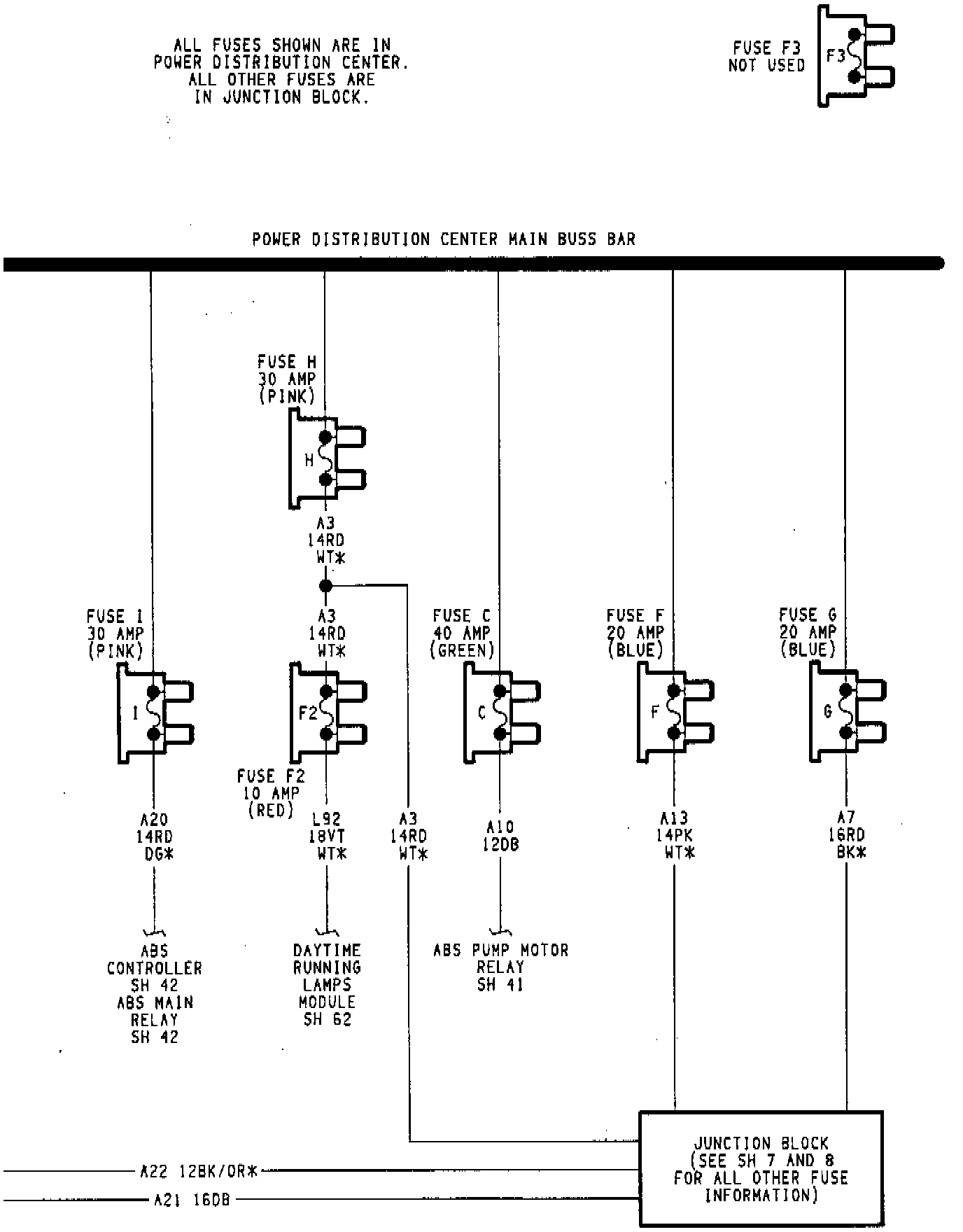

Power Distribution Center Application Chart:
