Home >> Dodge >> 1994 >> Intrepid V6-201 3.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio/Stereo >> Electronically Tuned Stereo With Amplifier >> Part 4 0F 5

Part 4 0F 5

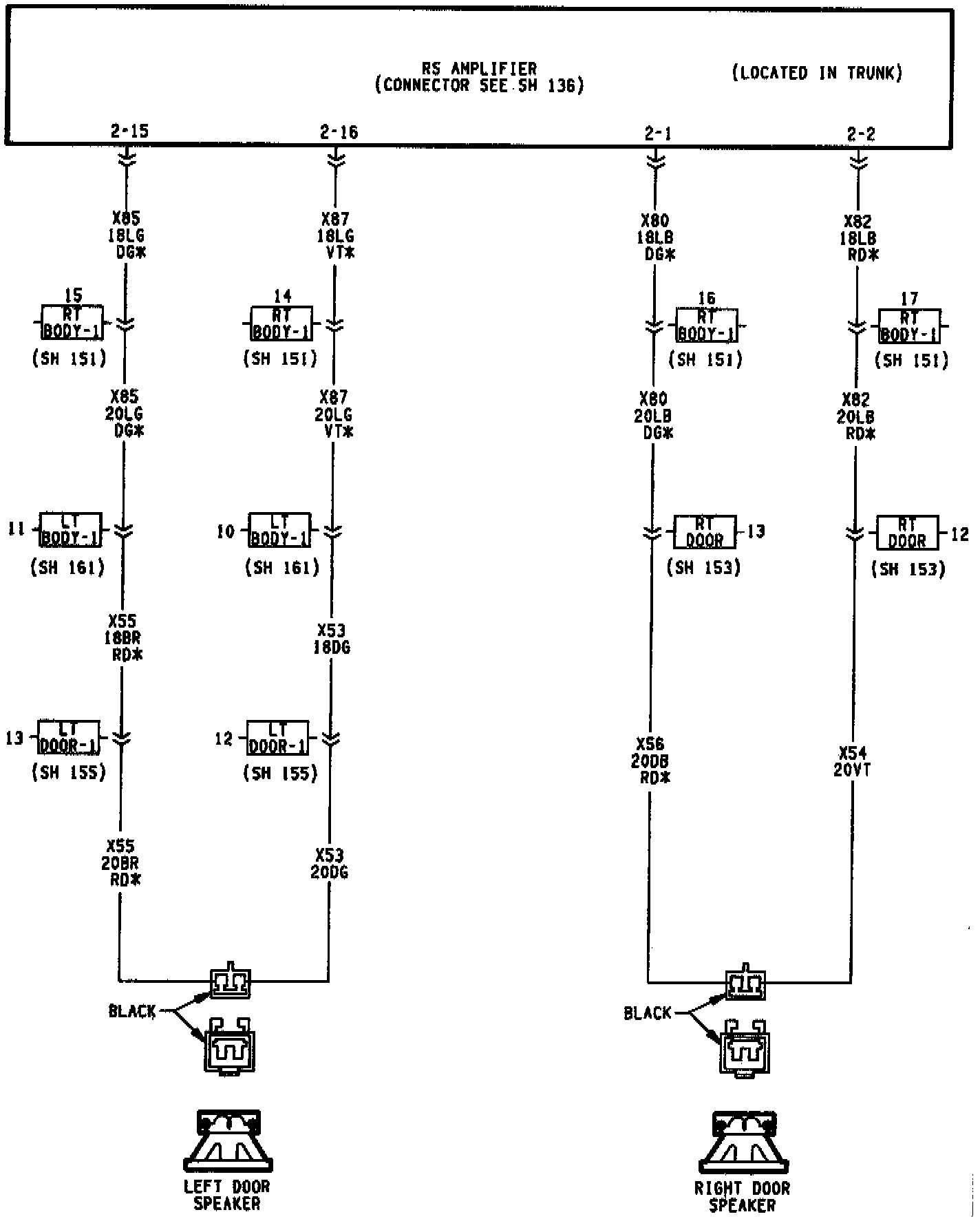

Electronically Tuned (RAY/RBC) Stereo With RS Amplifier:
