Home >> Dodge >> 1994 >> Intrepid V6-201 3.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Wiring Diagrams >> Part 3

Part 3

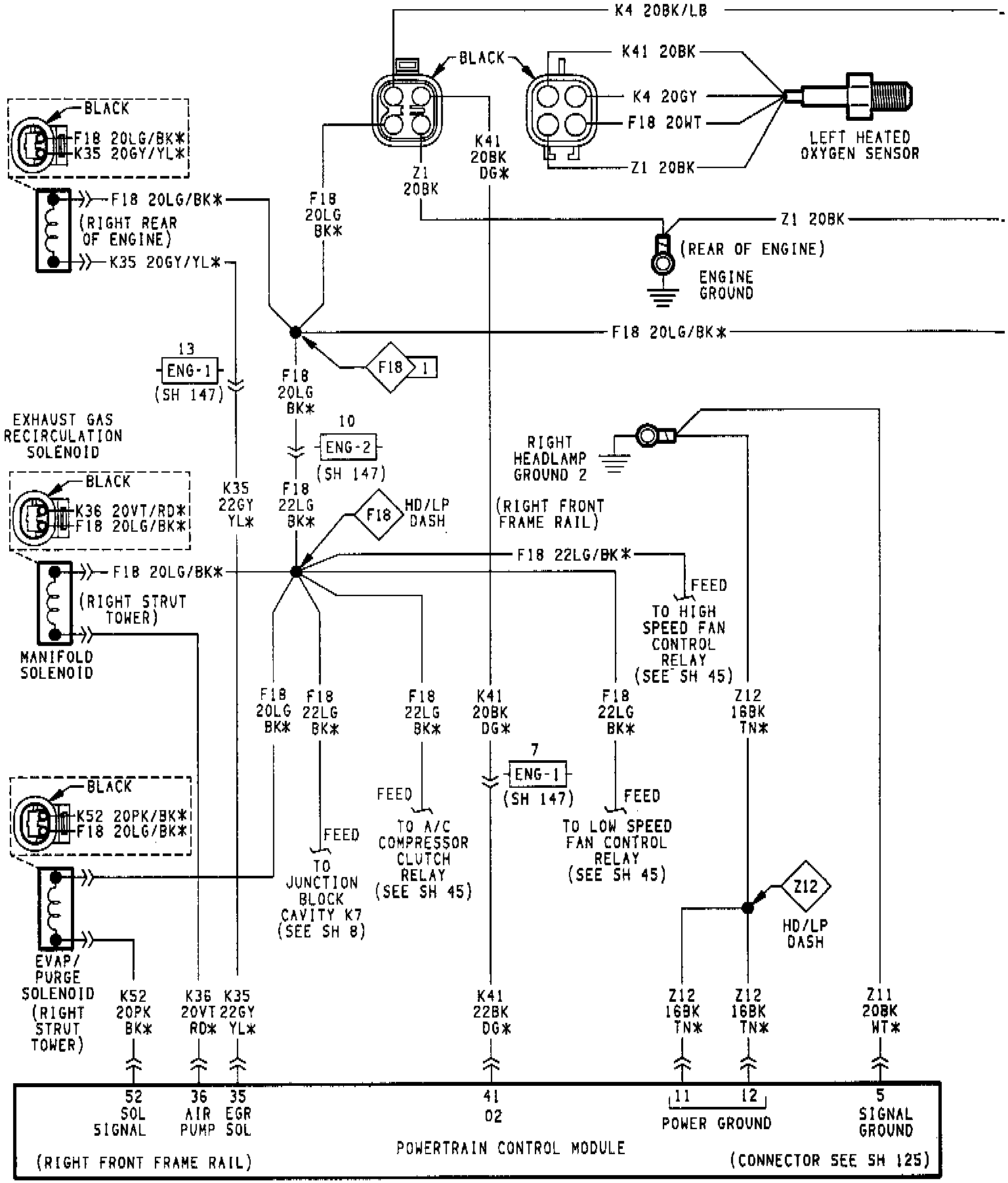

Fuel Injection & Ignition System -- 3.3L Only:
