Home >> Dodge >> 1994 >> Intrepid V6-201 3.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power Trunk / Liftgate Lock Switch

Power Trunk / Liftgate Lock Switch

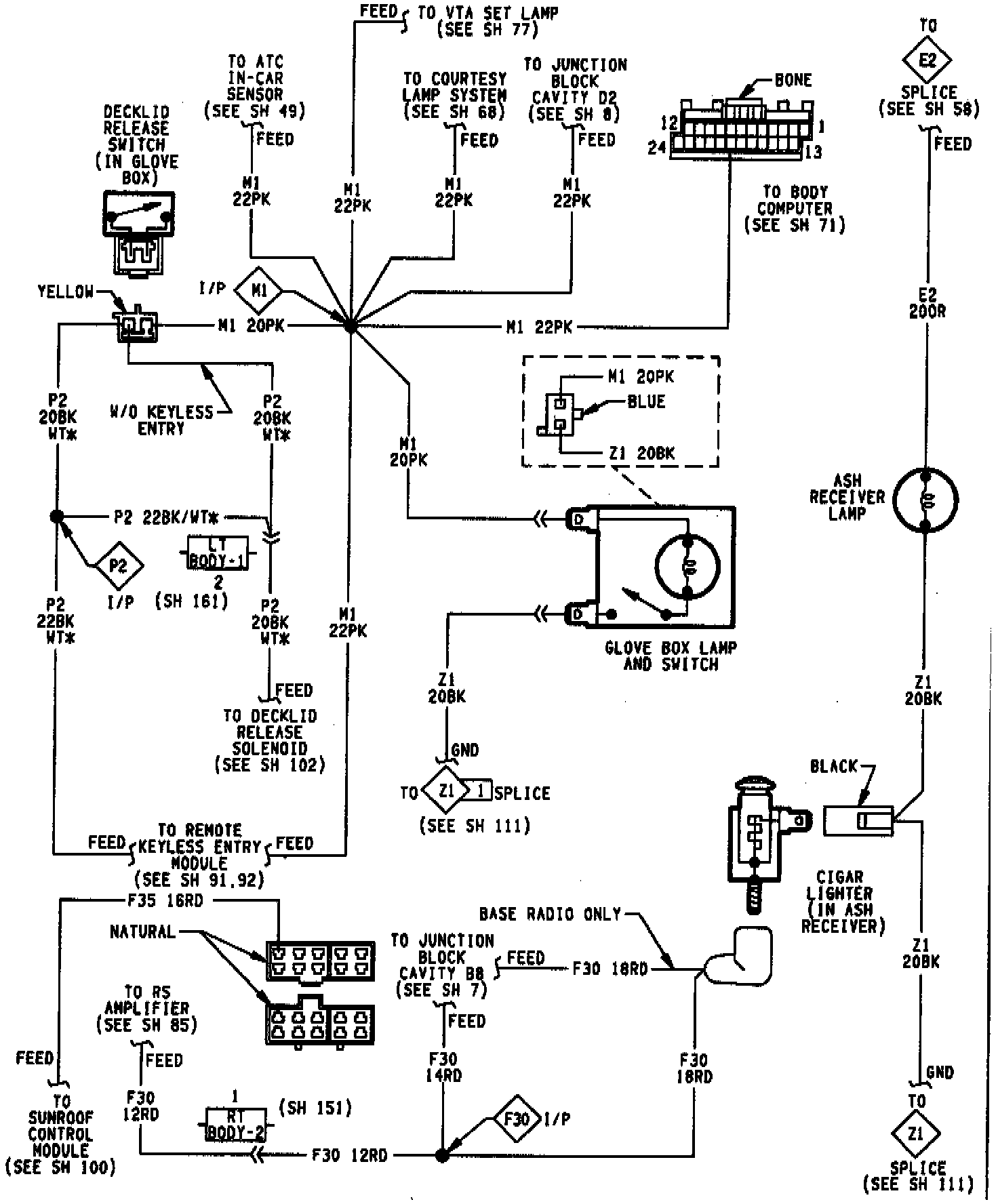

Glove Box, Cigar Lighter, And Deck Lid Release:

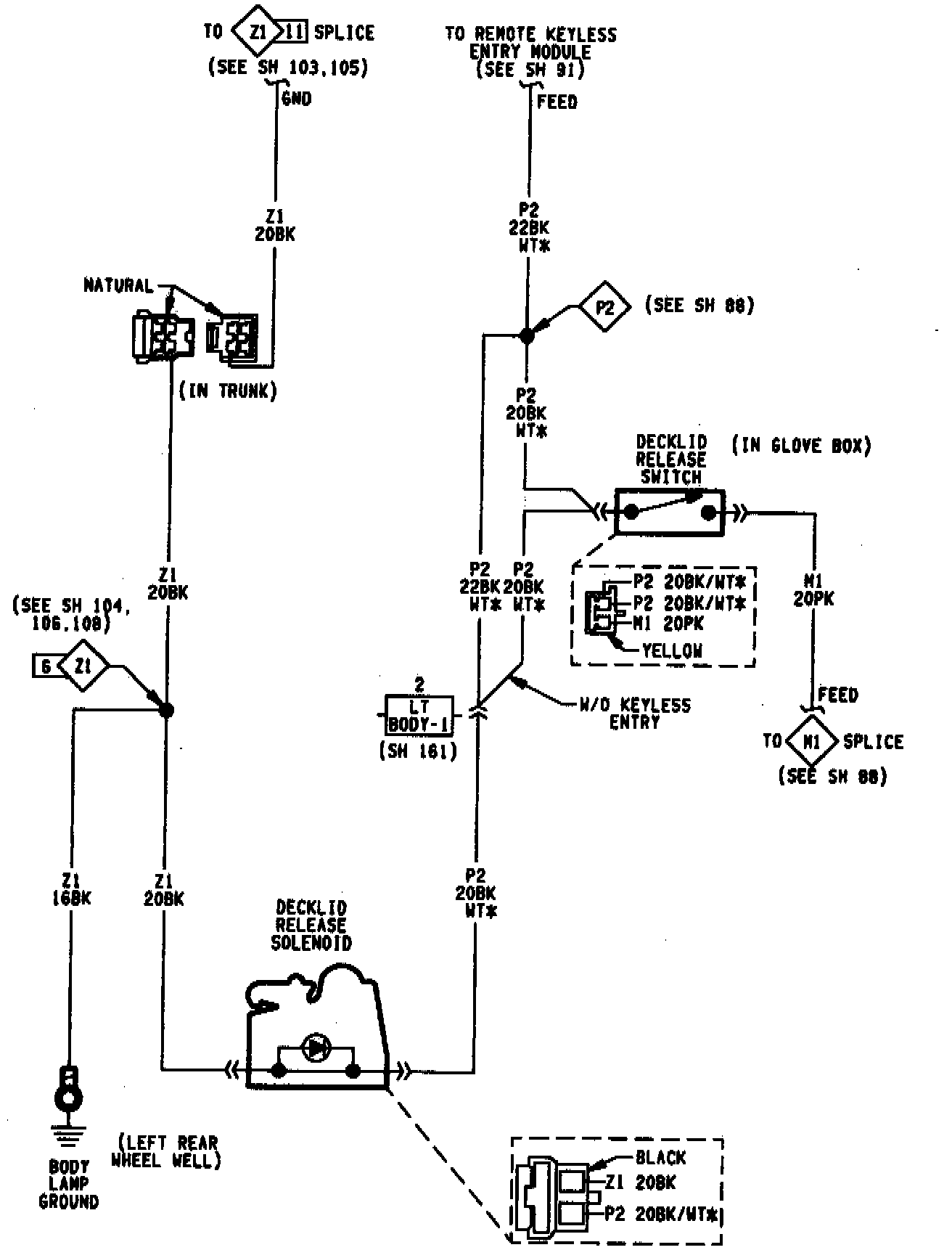

Decklid Release System:
