Dome and Body Courtesy Lamps

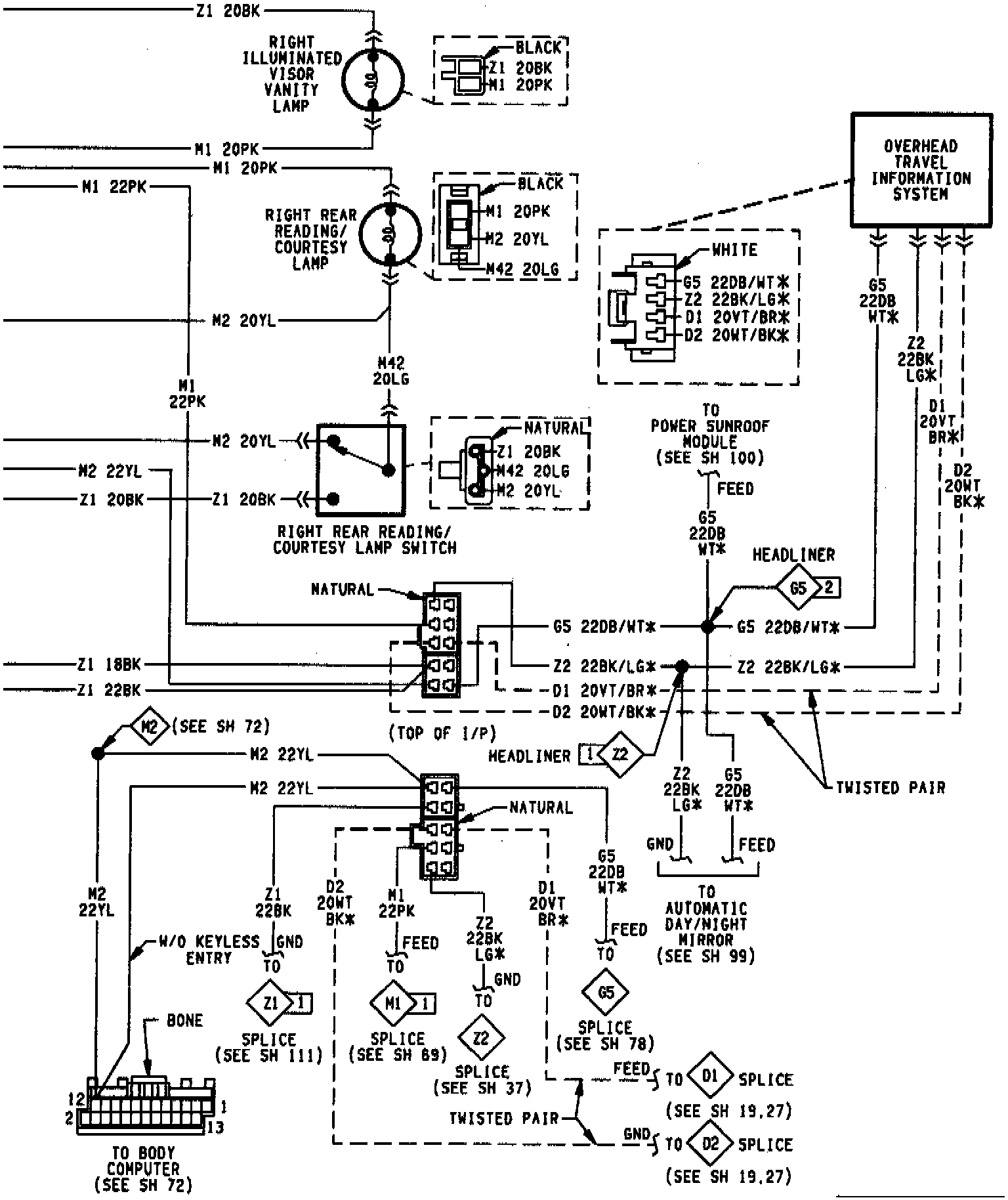

Courtesy Lamp System -- Chrysler Only:

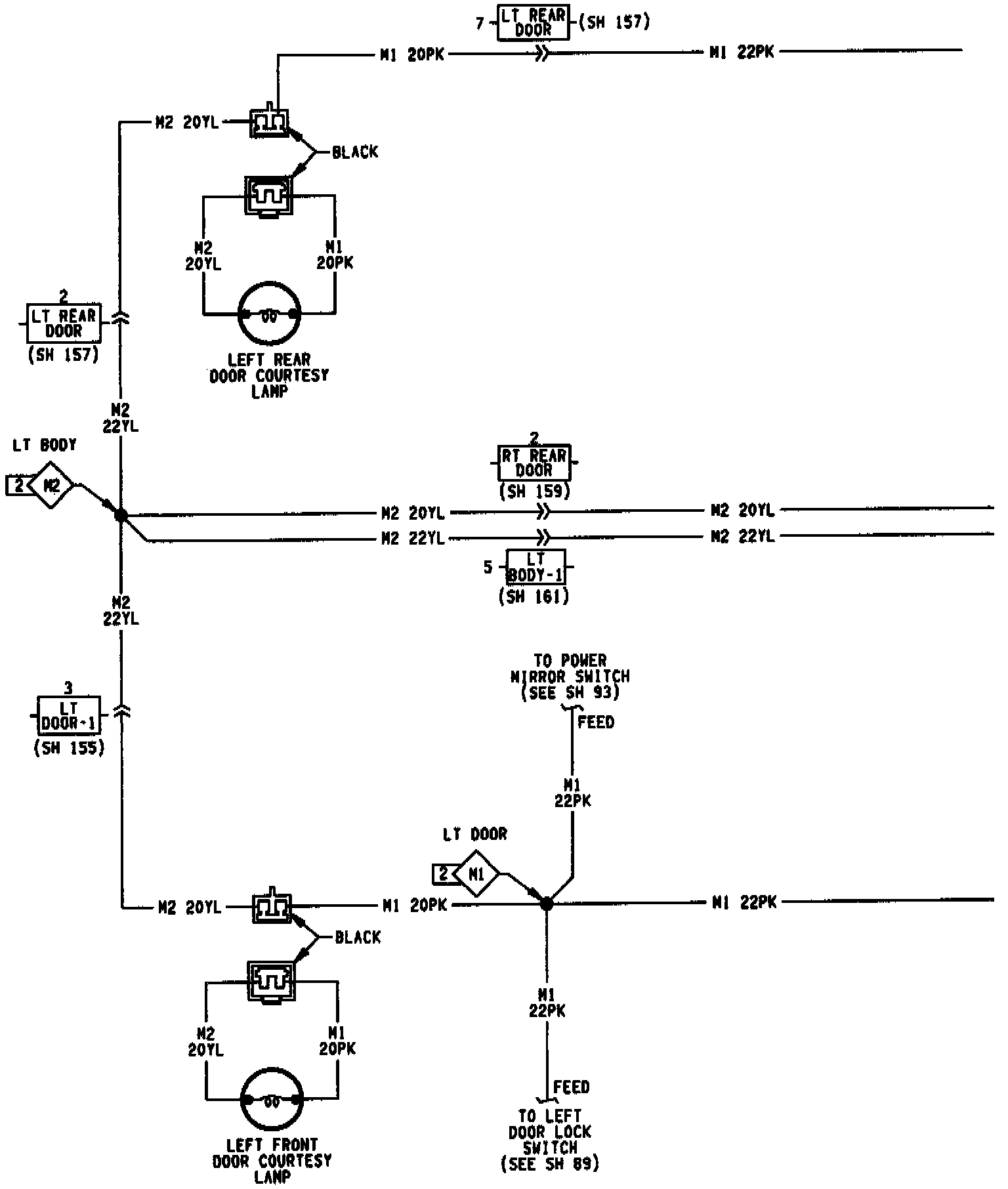

Courtesy Lamp System -- Chrysler Only:

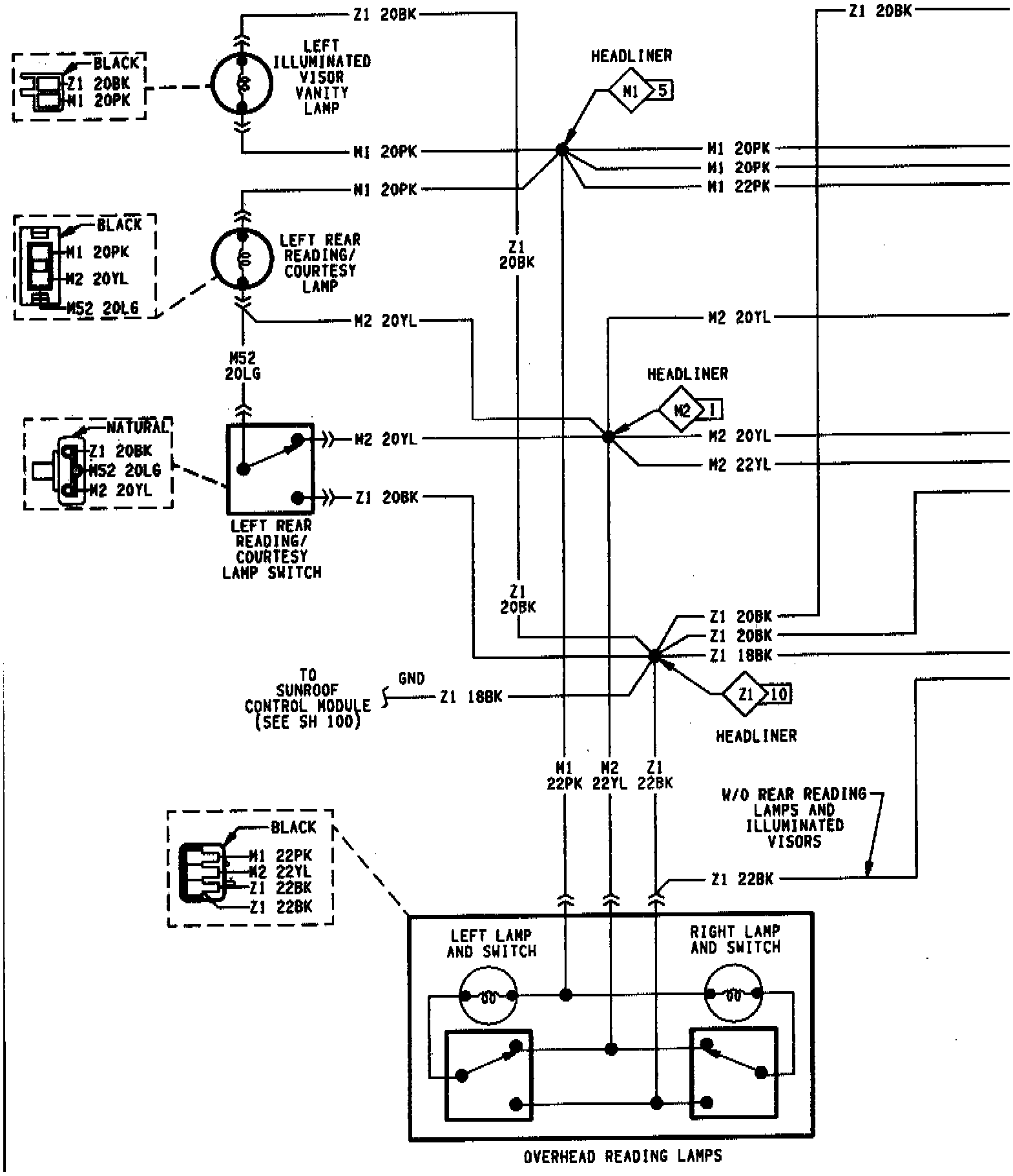

Courtesy Lamp System -- Chrysler Only:



Courtesy Lamp System -- Chrysler Only:
