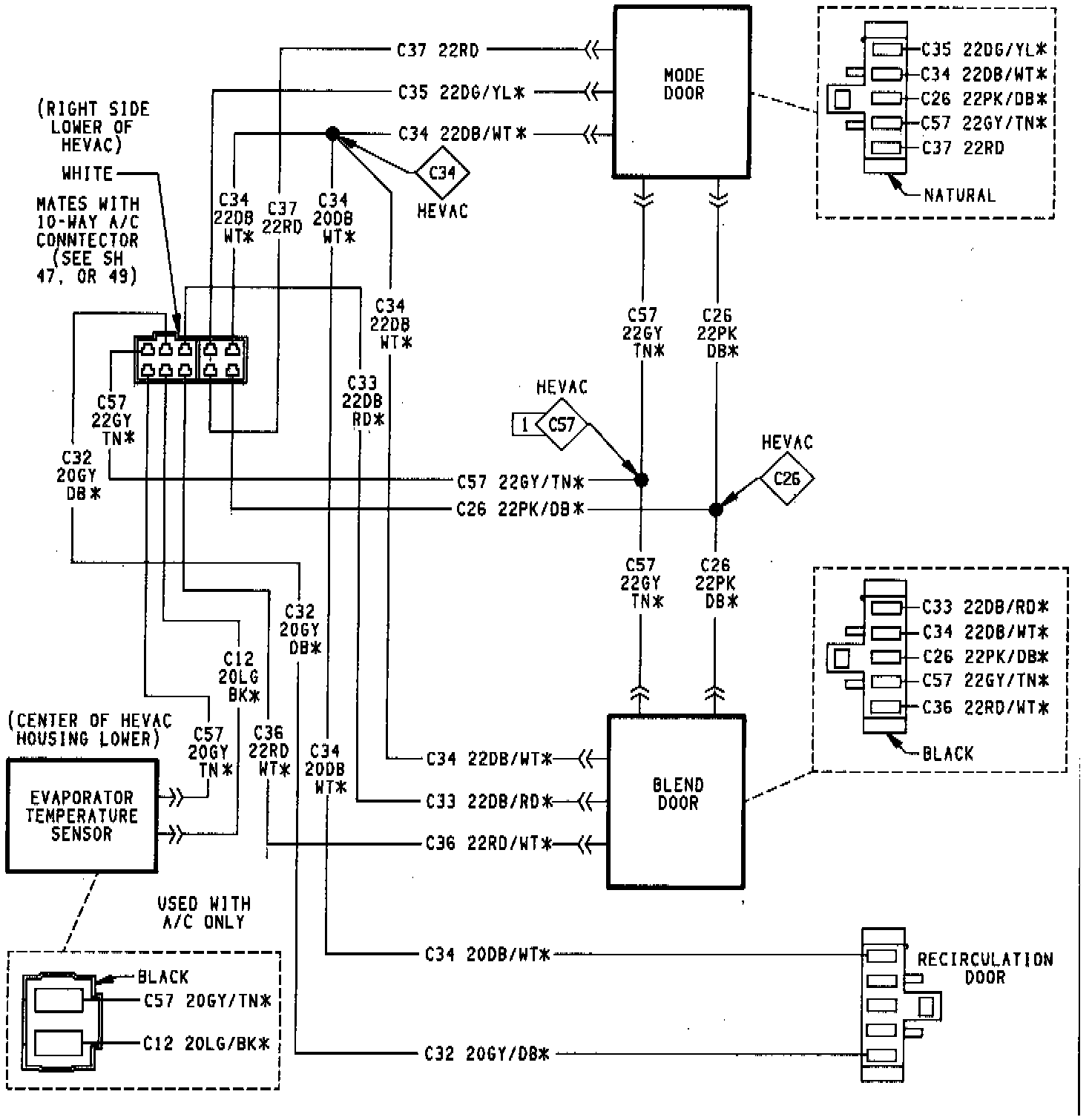

With Automatic Temperature Control (ATC)
With Automatic Temperature Control (ATC)

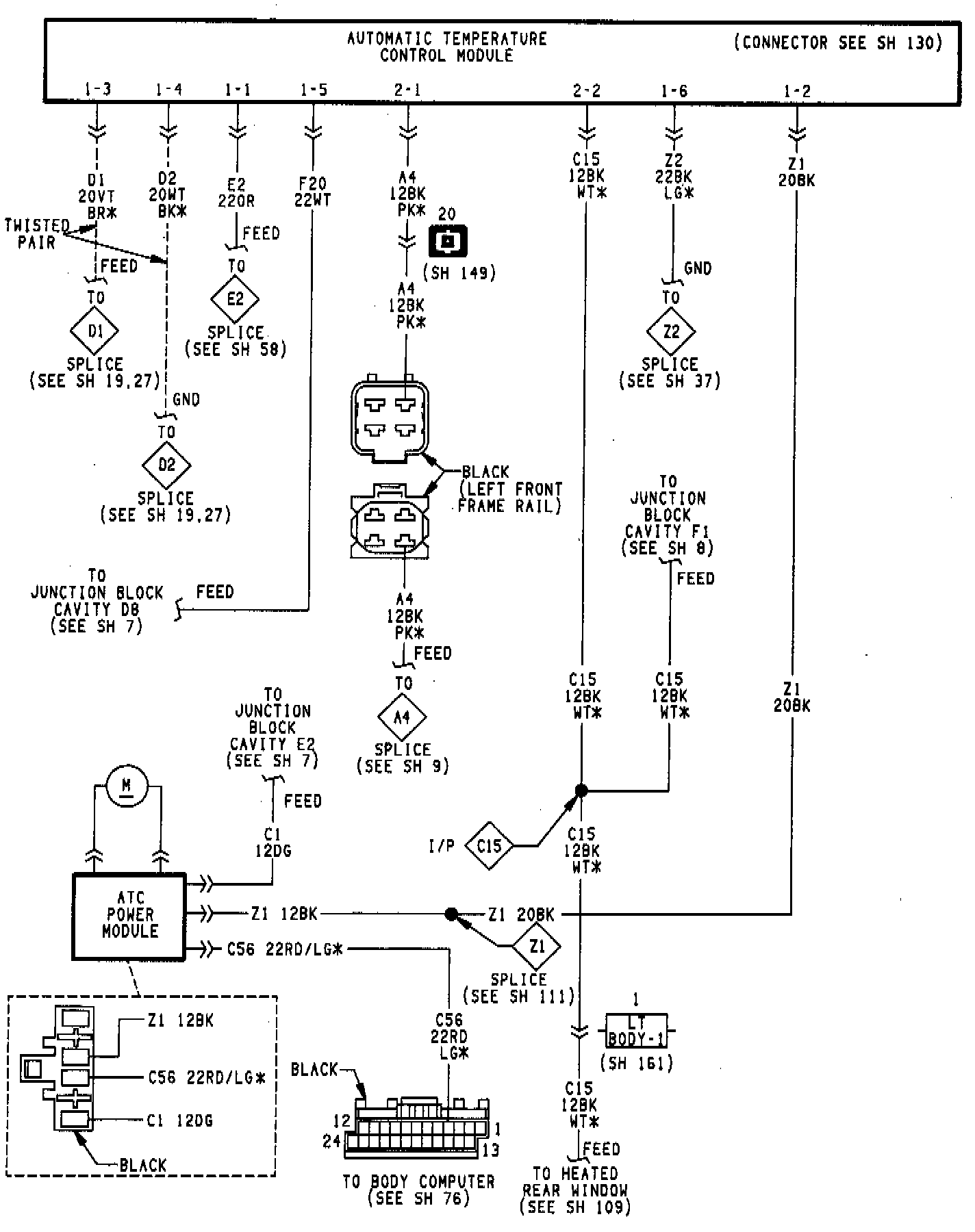

Automatic Temperature Control System:
Automatic Temperature Control System:
Air Conditioning Or Auto Temperature Control System:
