Home >> Dodge >> 1994 >> Intrepid V6-201 3.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cooling System >> System Diagram

System Diagram

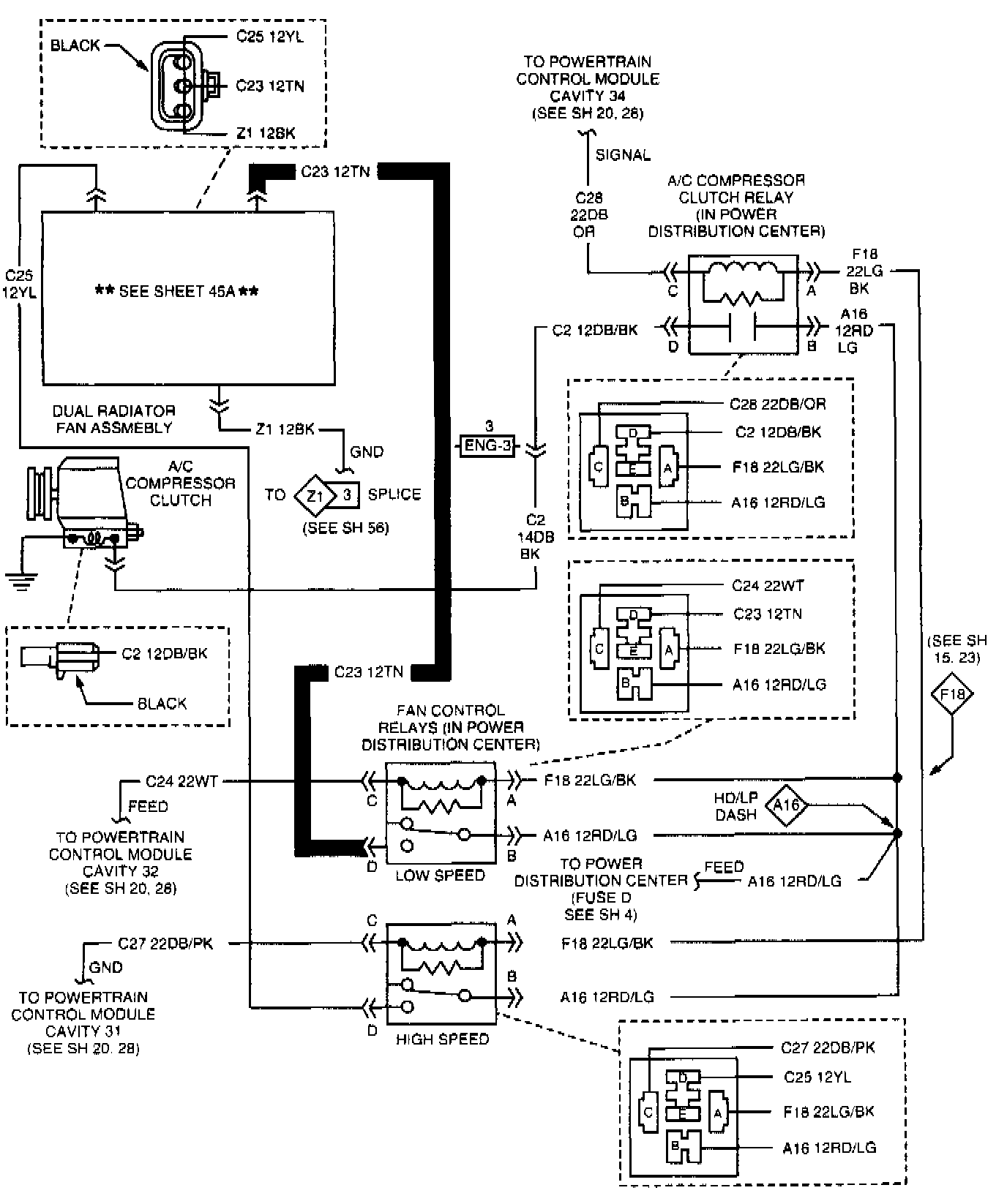

Air Conditioning And Heater System:

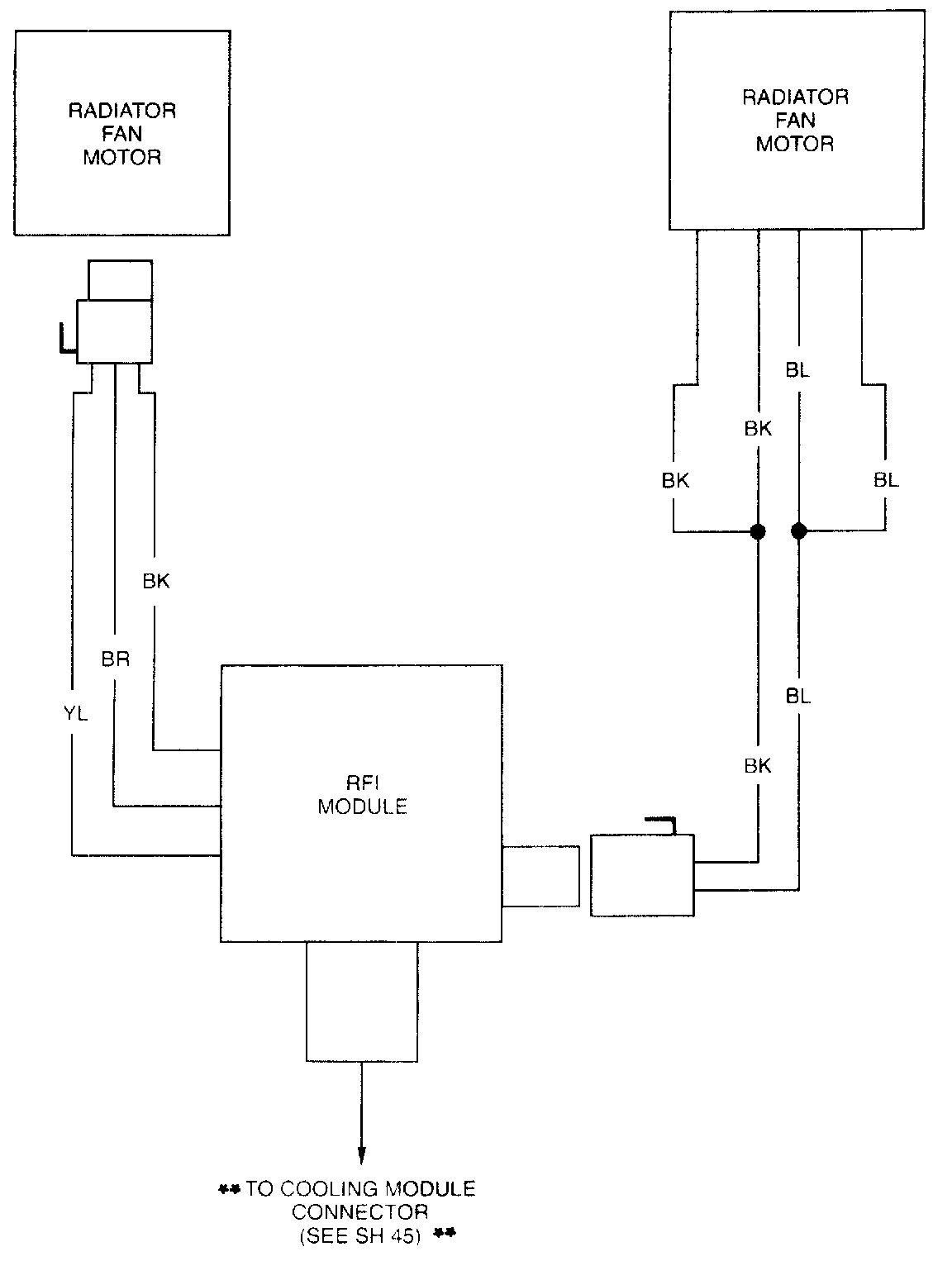

Sheet 45a - Radiator Fan Motor/RFI Module:
