Right Body to Instrument Panel Wiring
Right Body to Instrument Panel Wiring

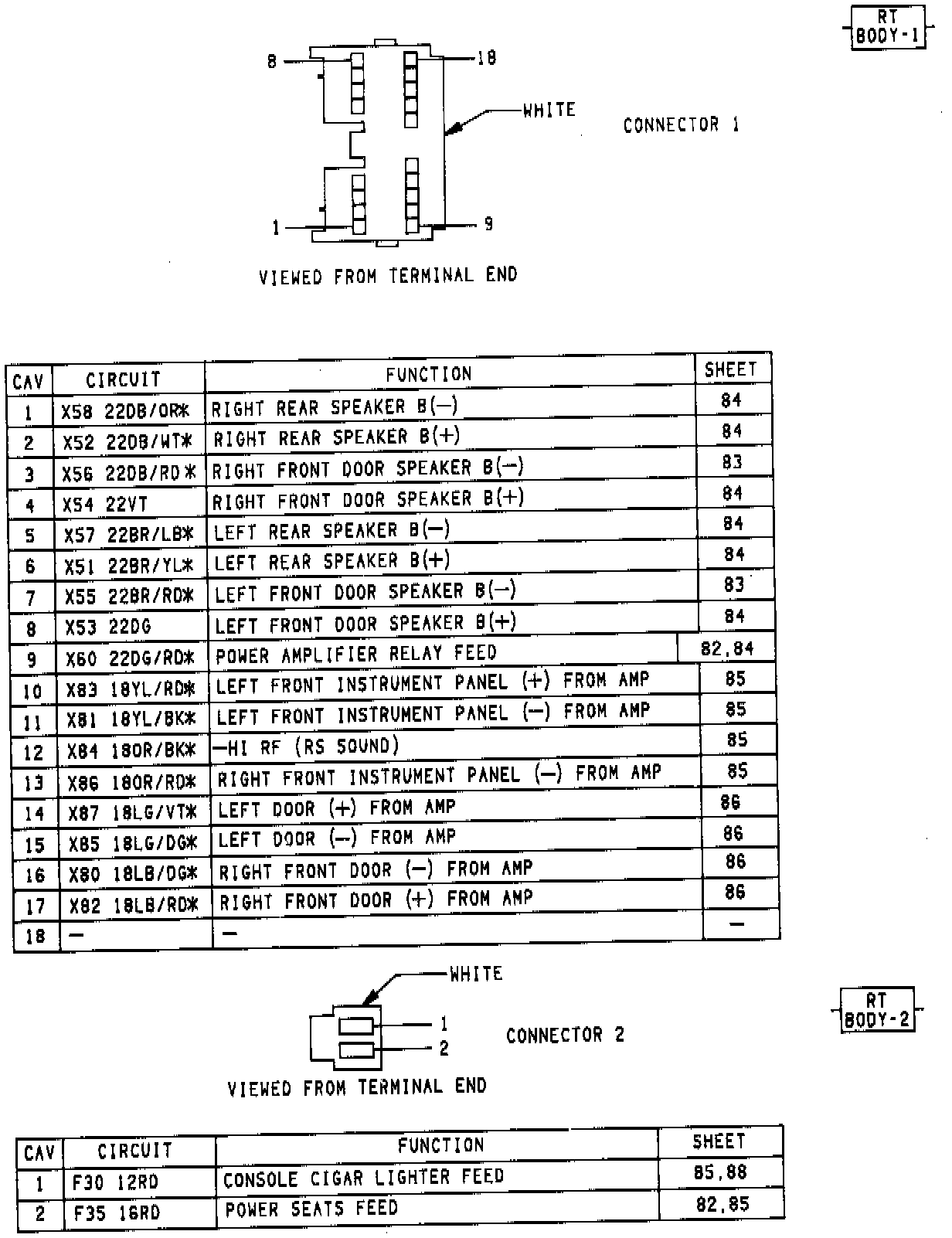

Right Body To Instrument Panel Wiring:
