Home >> Dodge >> 1994 >> Intrepid V6-201 3.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> Part 5 of 5

Part 5 of 5

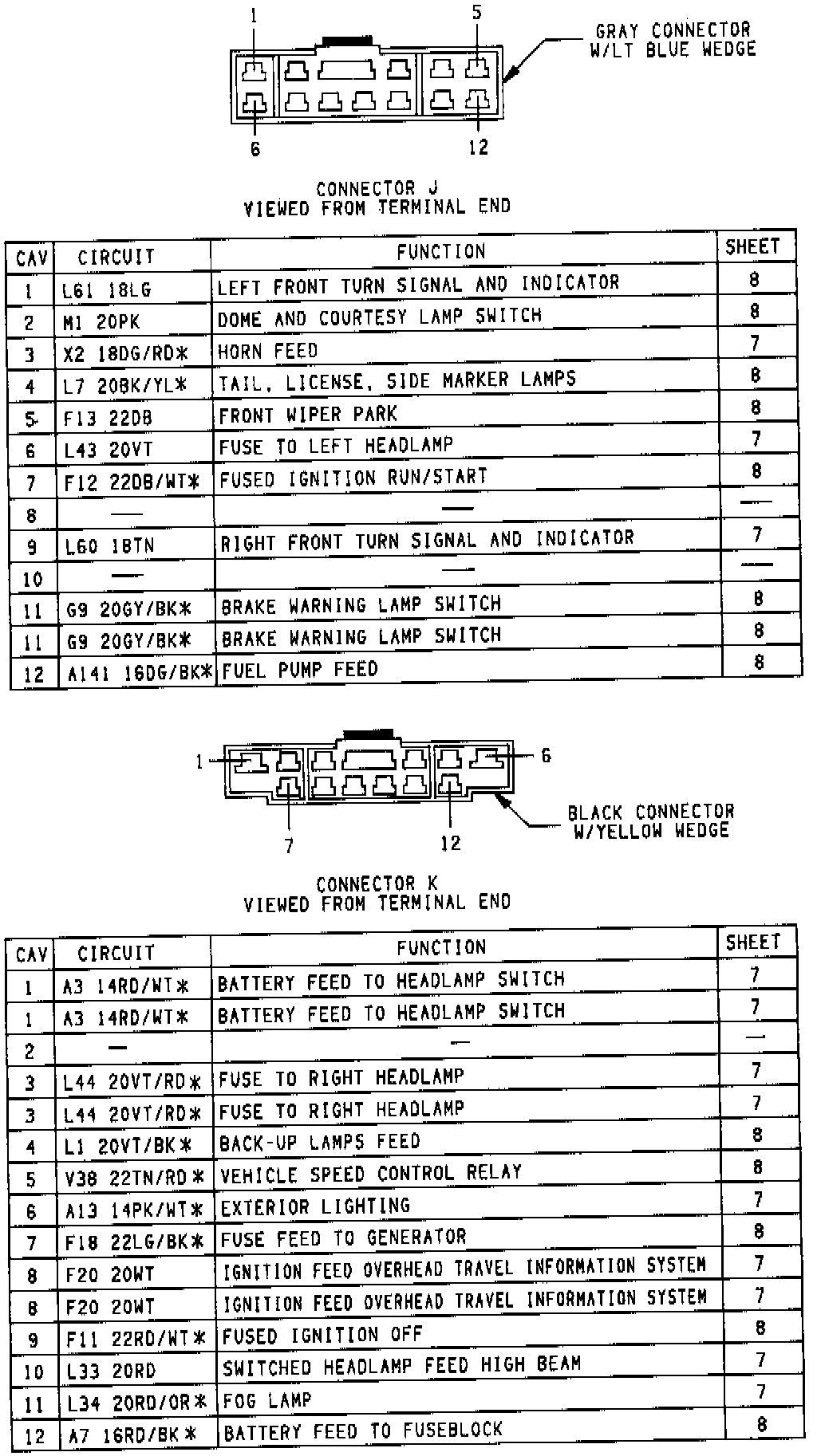

Junction Block Connectors:
