Home >> Dodge >> 1994 >> Intrepid V6-201 3.3L >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Diagrams >> Electrical Diagrams >> Power/Heated Outside Mirrors

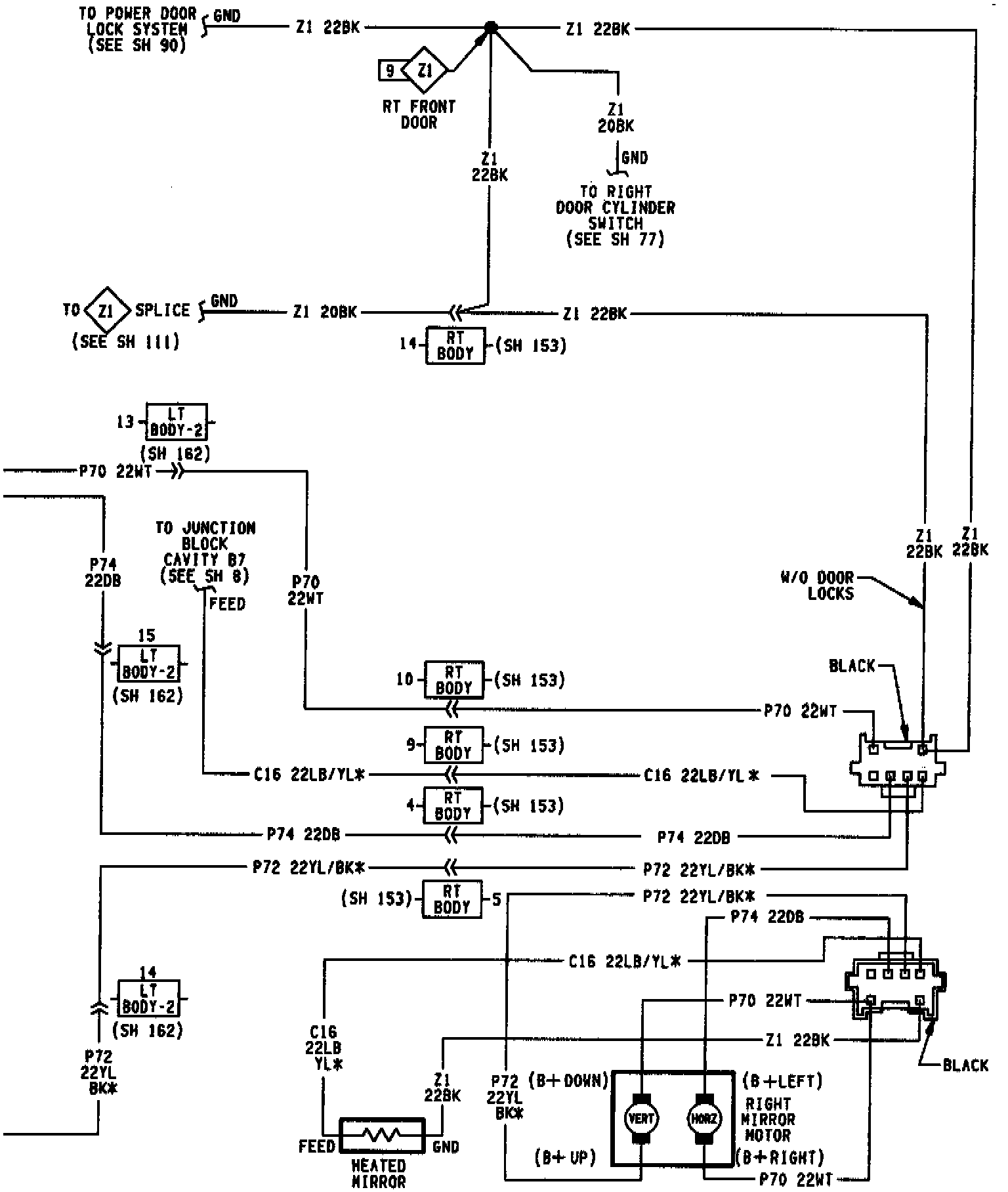

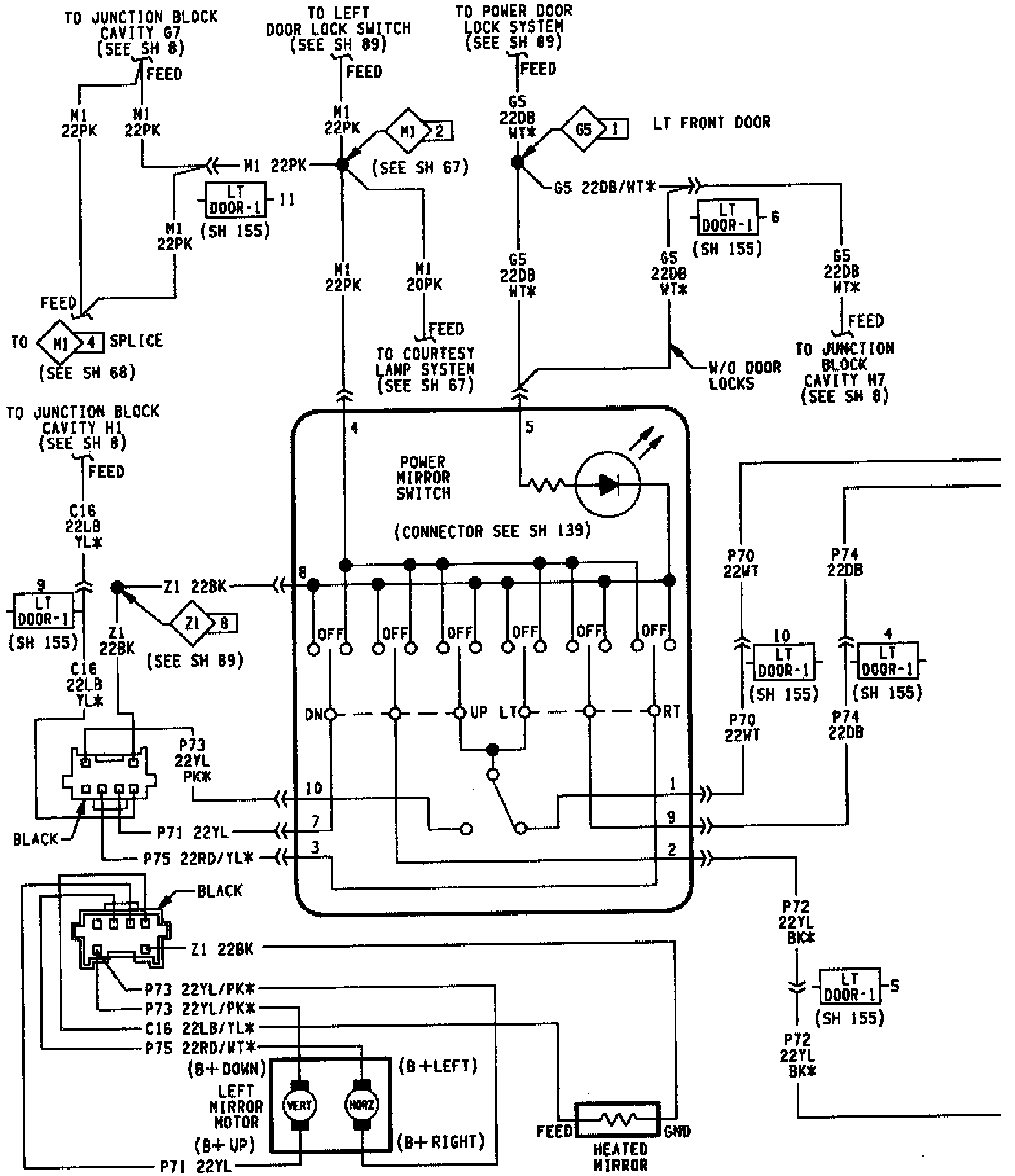

Power/Heated Outside Mirrors

Power Heated Mirror System:



Power Heated Mirror System:
