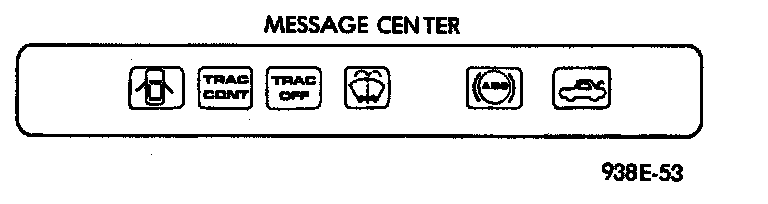

Instrument Panel Message Center Removal
Instrument Panel Message Center Removal
1.
Using a trim stick, remove message module from instrument panel.
2.
Disconnect connector.
3.
Replace lamps as needed.
4.
For installation, reverse above procedures.
