Vehicle Speed Reed Switch System

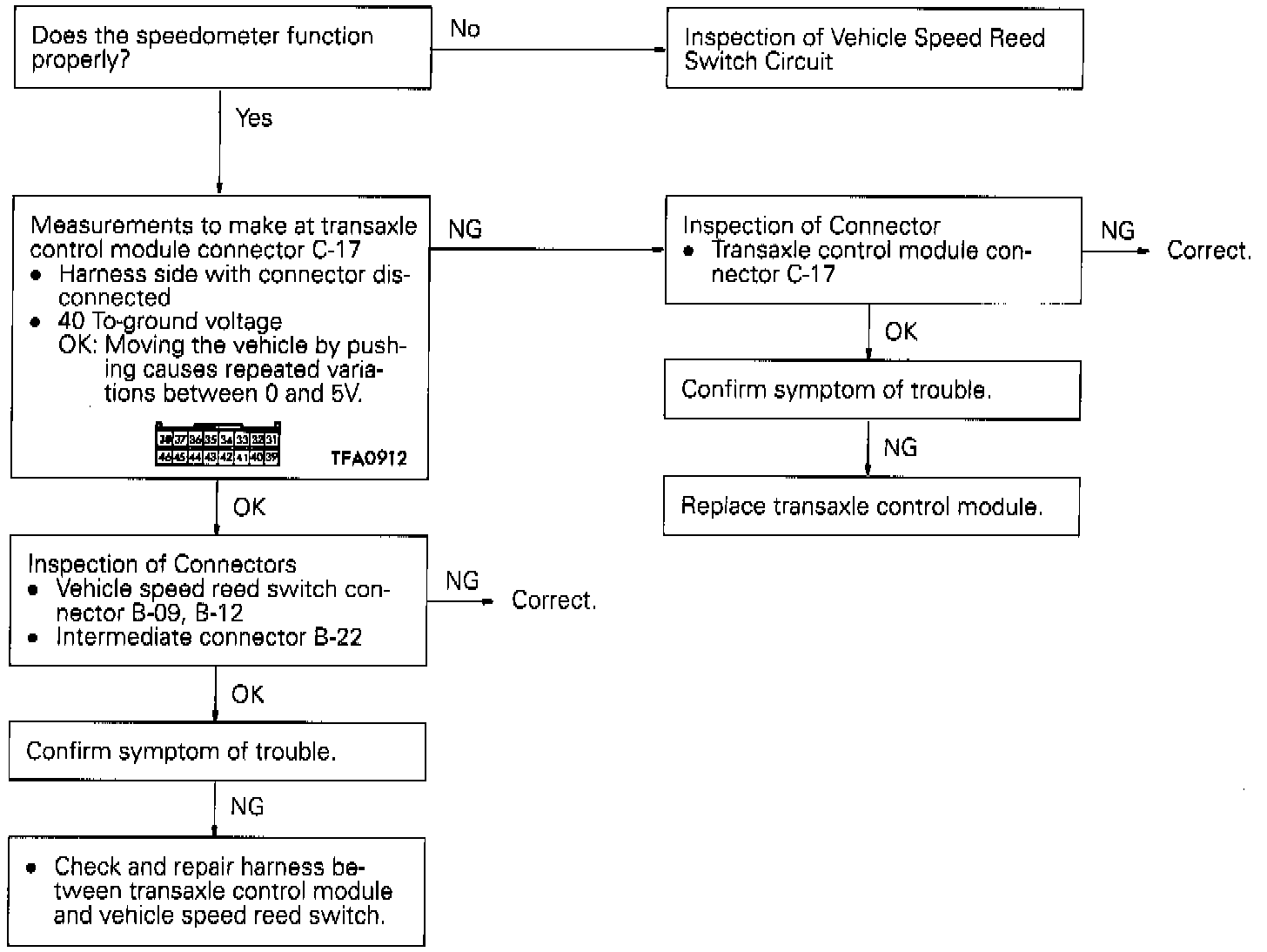

Inspection Step 20


Description

When the vehicle speed reed switch malfunctions, a defective vehicle speed reed switch circuit is suspected.


Probable Cause of Trouble

- Defective vehicle speed reed switch
- Defective connector
- Defective transaxle control module
