Shadow Convertible L4-153 2.5L SOHC VIN B
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Cooling System
>>
Radiator Cooling Fan Motor Relay
>>
Diagrams
>>
Electrical Diagrams
>>
With Air Conditioning
With Air Conditioning

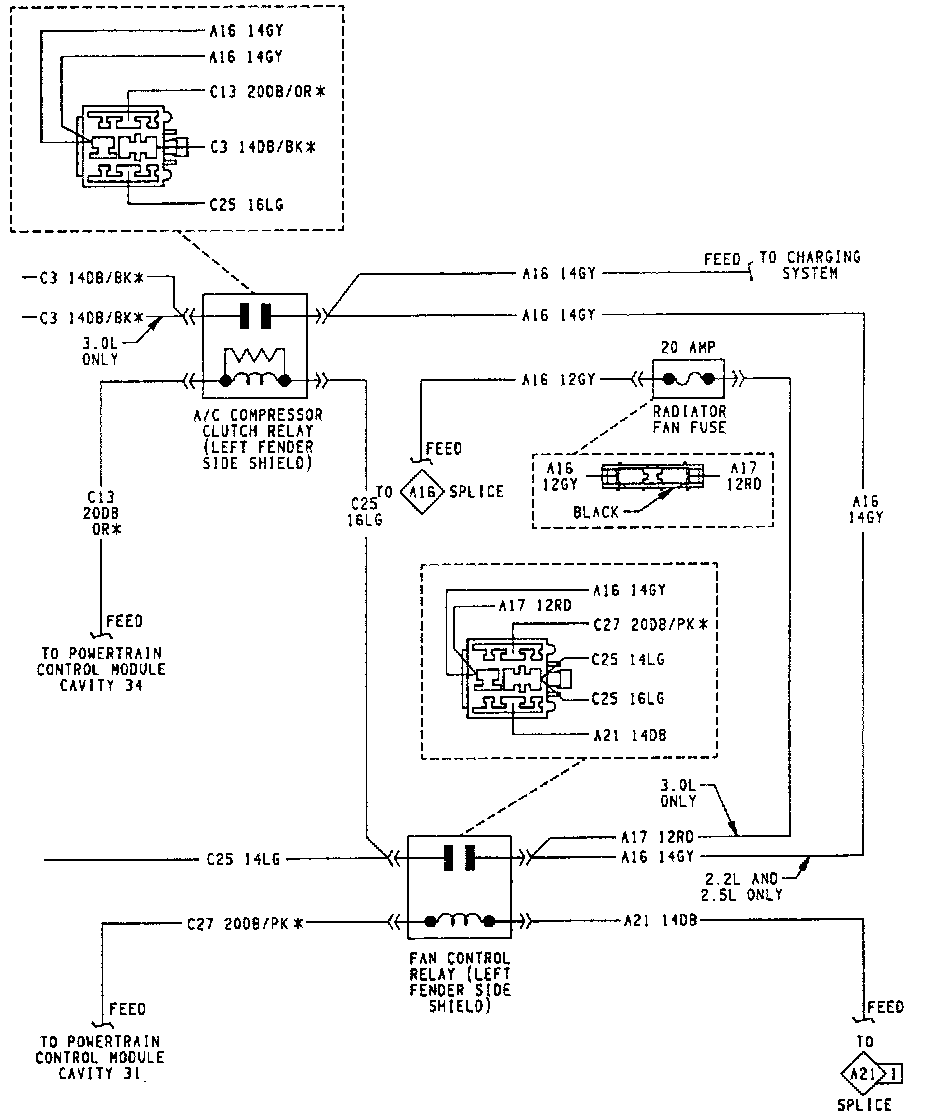

Fig. 11a - Engine Cooling Fan Wiring Diagram (Part 1 Of 2):

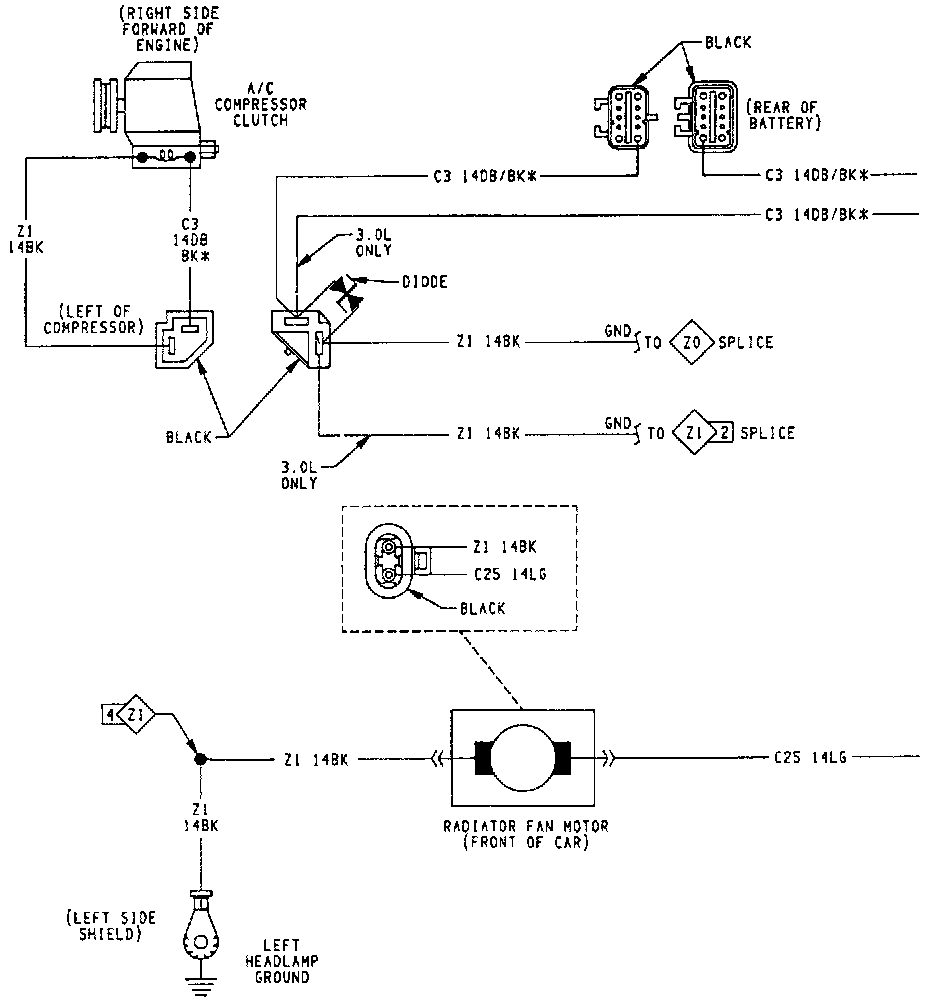

Fig. 11b - Engine Cooling Fan Wiring Diagram (Part 2 Of 2):
