Dodge
>>
1993
>>
Shadow Convertible L4-153 2.5L SOHC VIN B
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Systems
>>
System Diagram
System Diagram

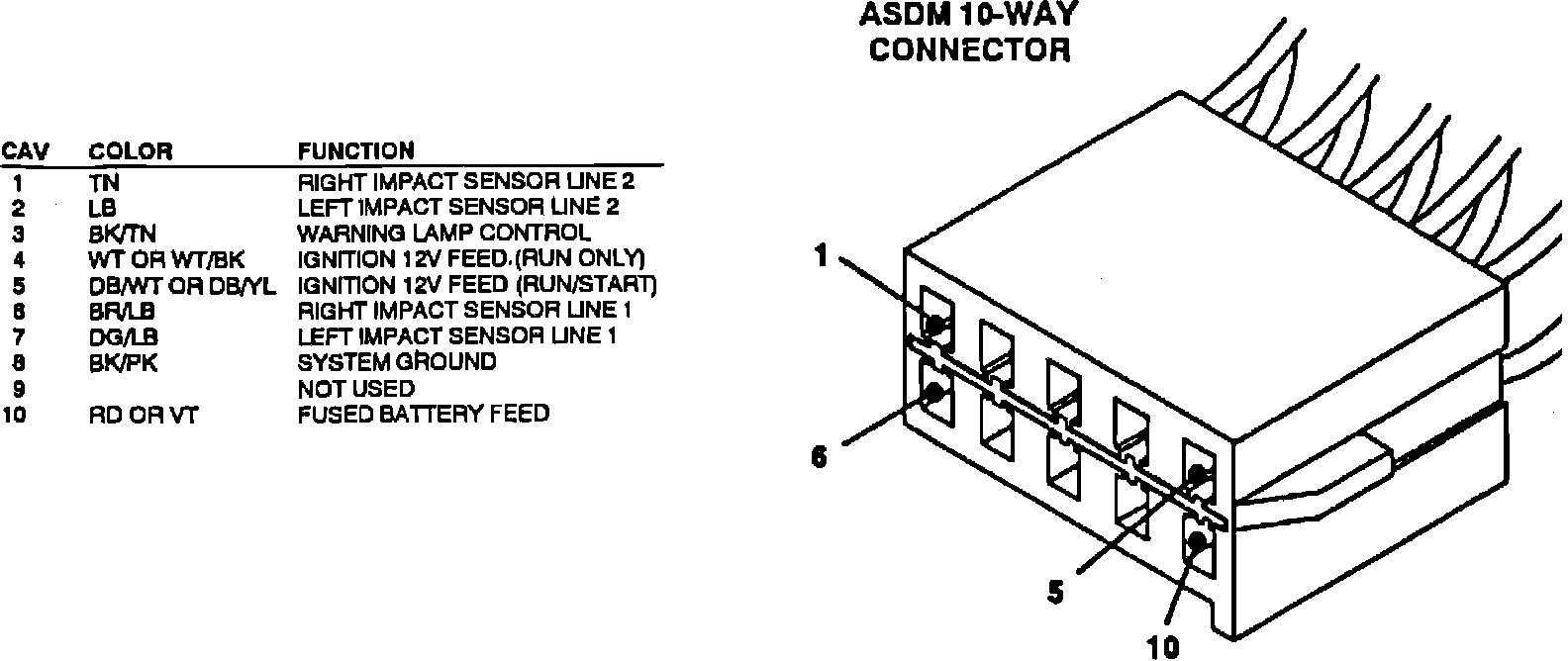

ACM (ASDM) 10-way Connector:

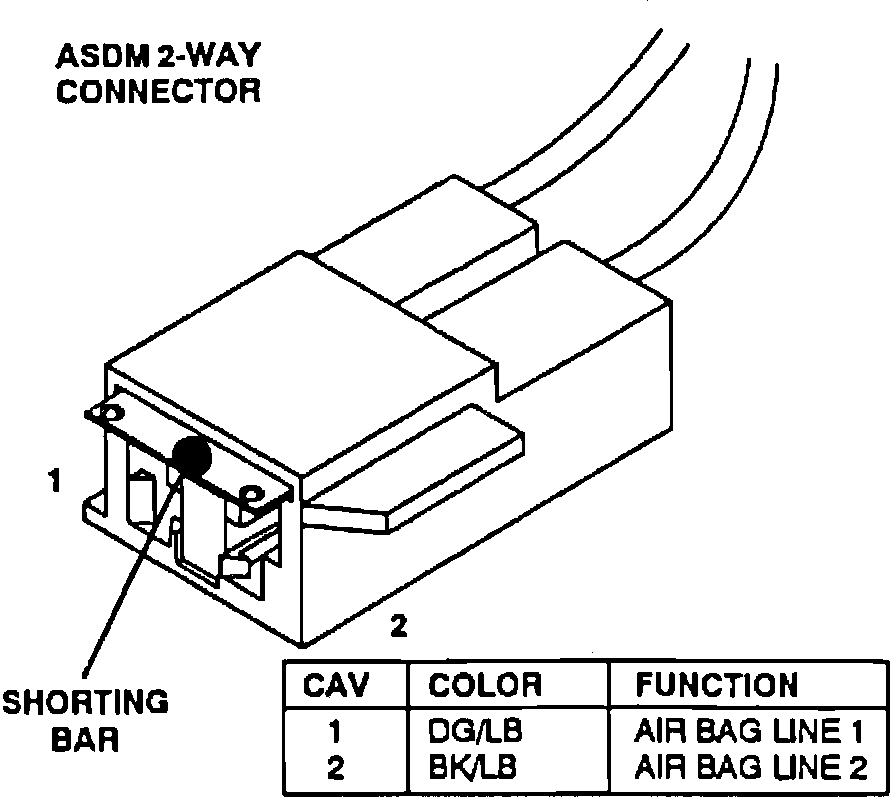

ACM (ASDM) 2-way Connector:
