SP-9A Speed Control Switch Circuit Test

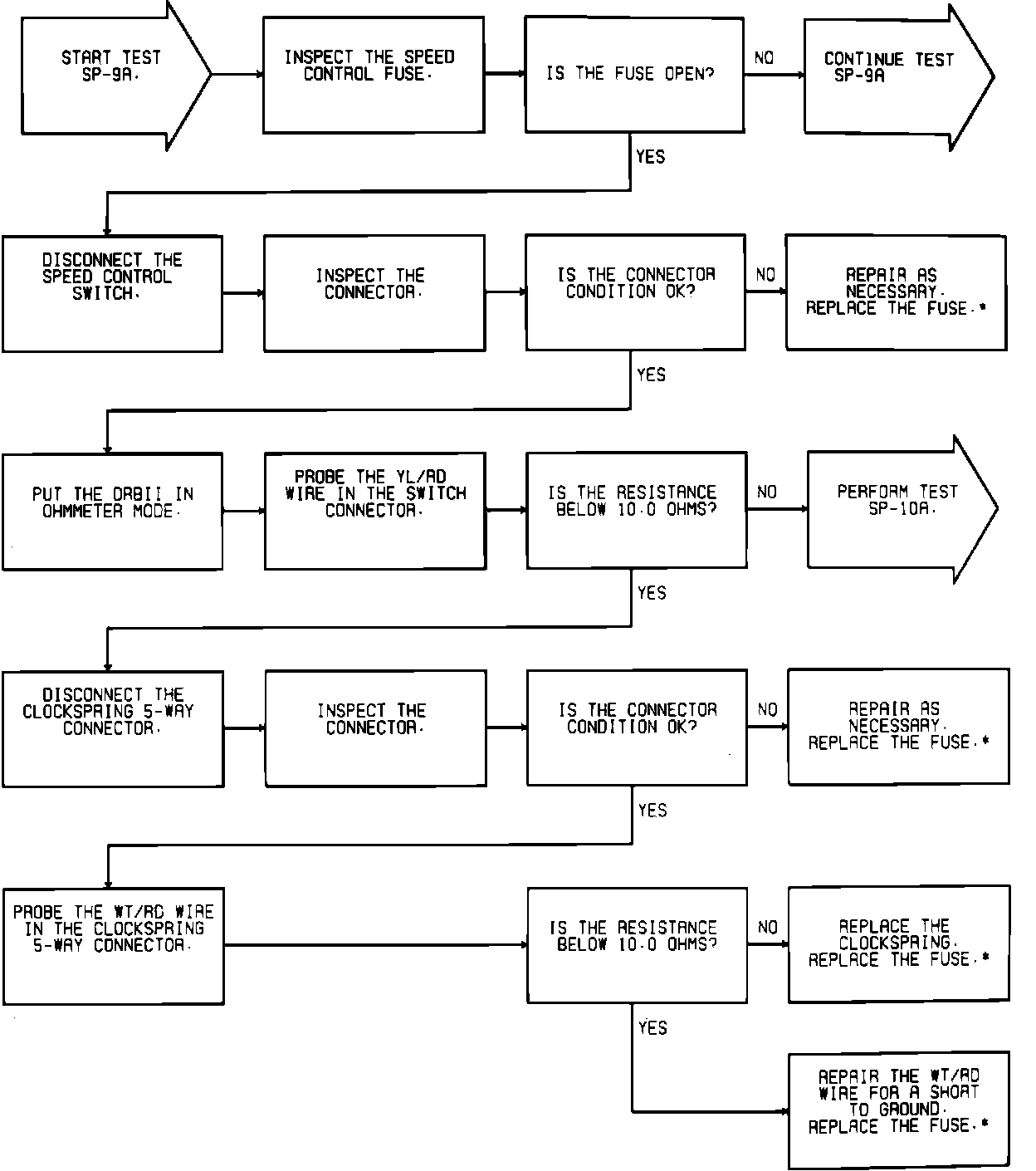

Test SP-9A, testing speed control switch circuits (Part 1 of 3):

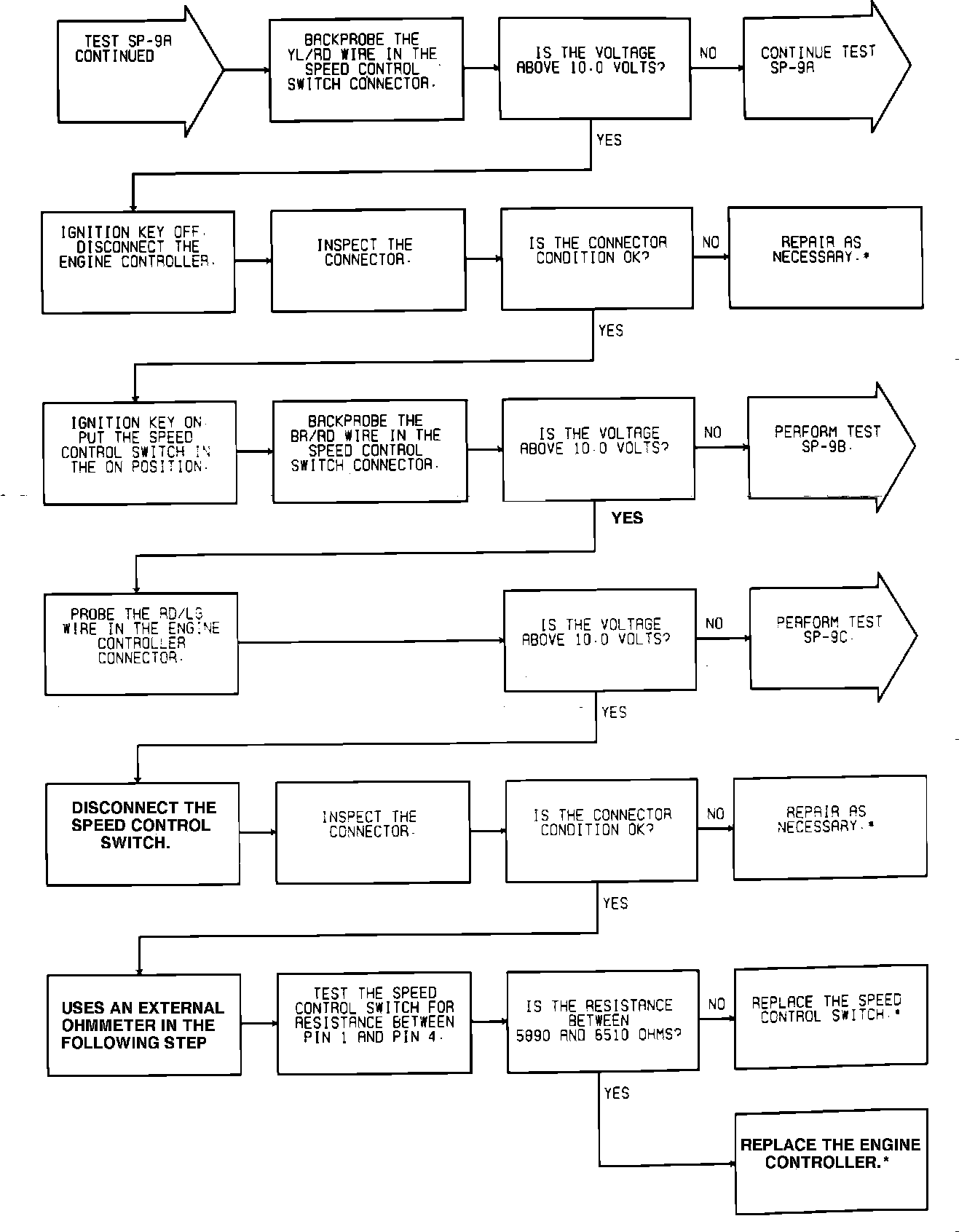

Test SP-9A, testing speed control switch circuits (Part 2 of 3):

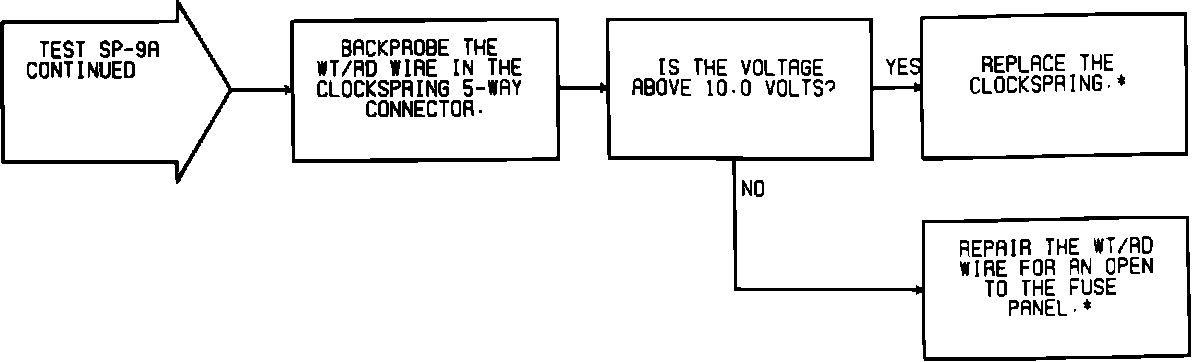

Test SP-9A, testing speed control switch circuits (Part 3 of 3):
