Symptom Related Diagnostic Procedures

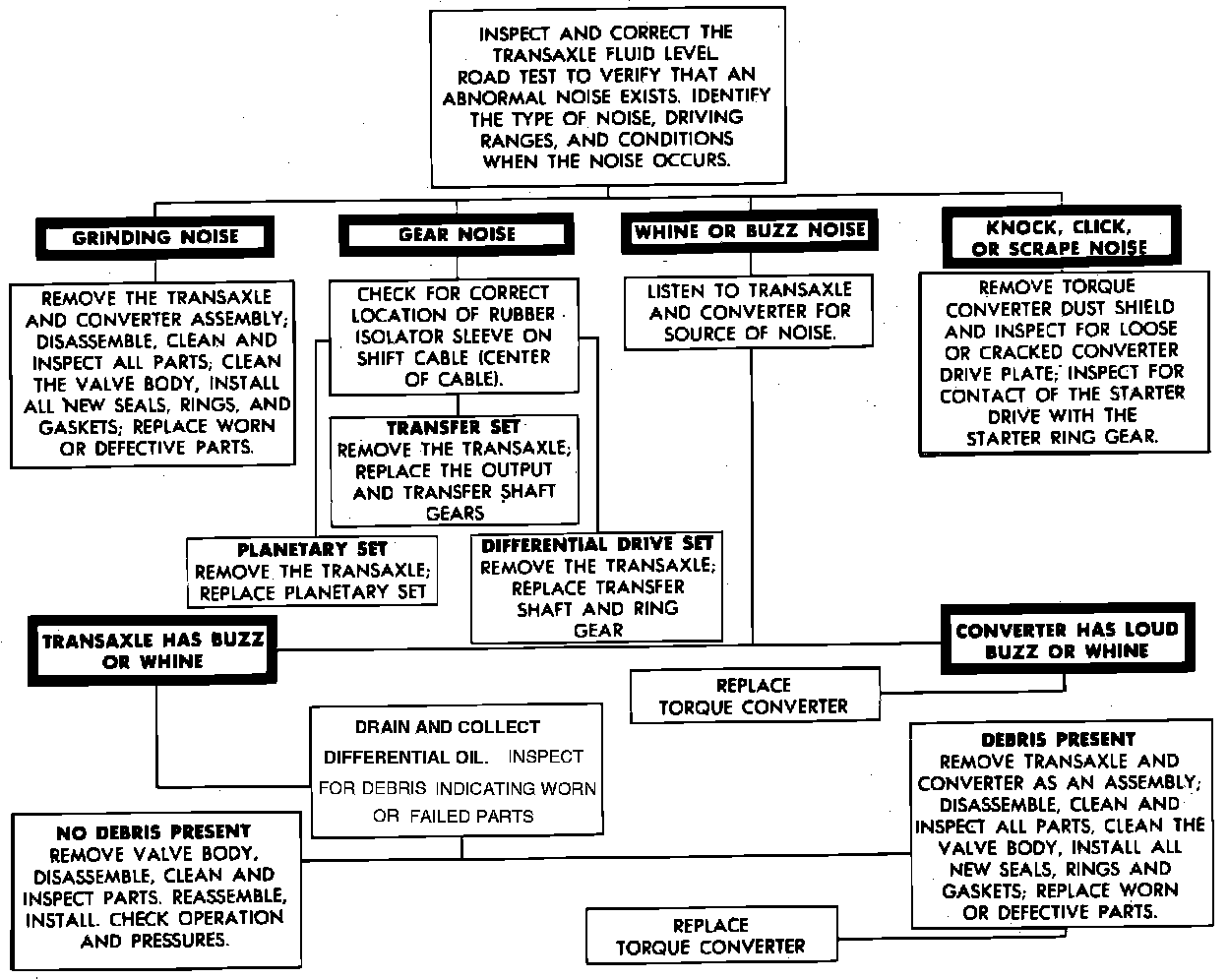

Fig. 2 Abnormal Noise Diagnosis Chart.:

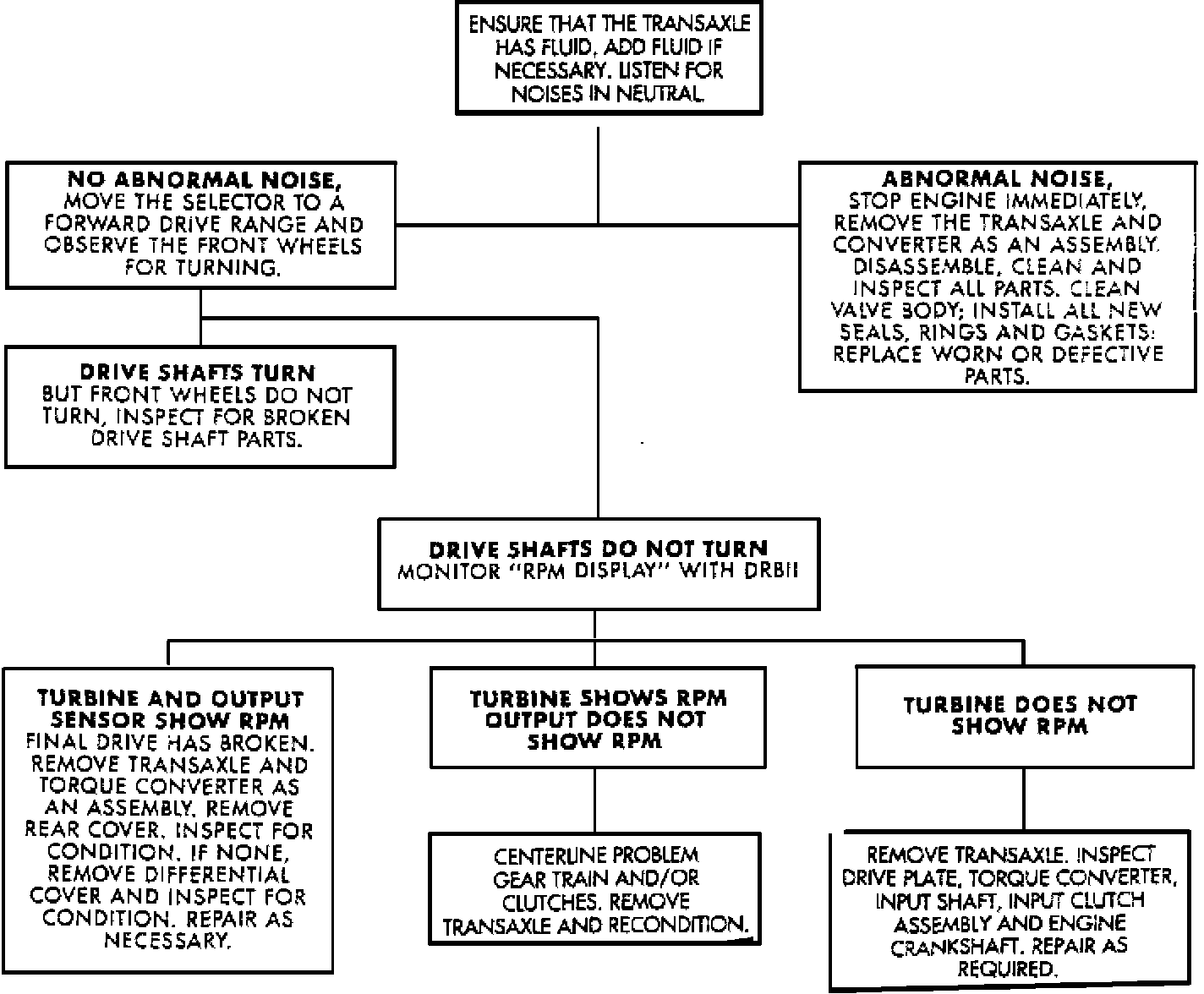

Fig. 3 Troubleshooting (Vehicle will not move):

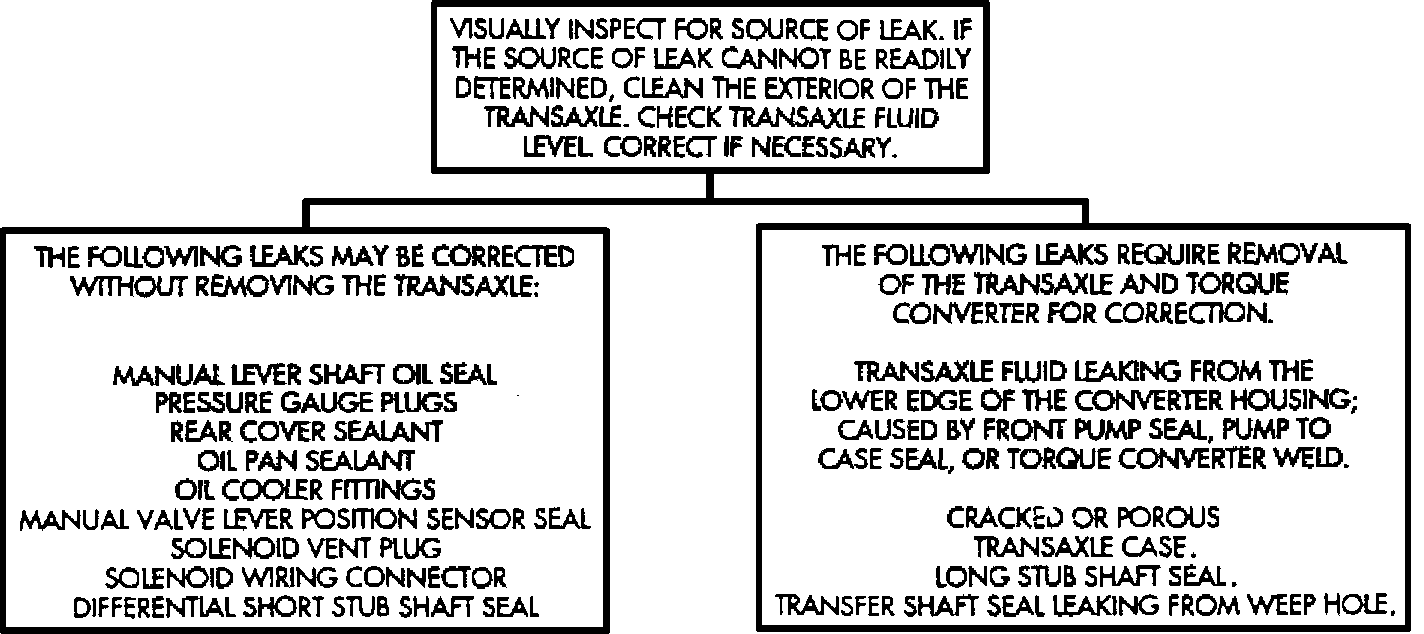

Fig. 4 Troubleshooting (Fluid leaks):

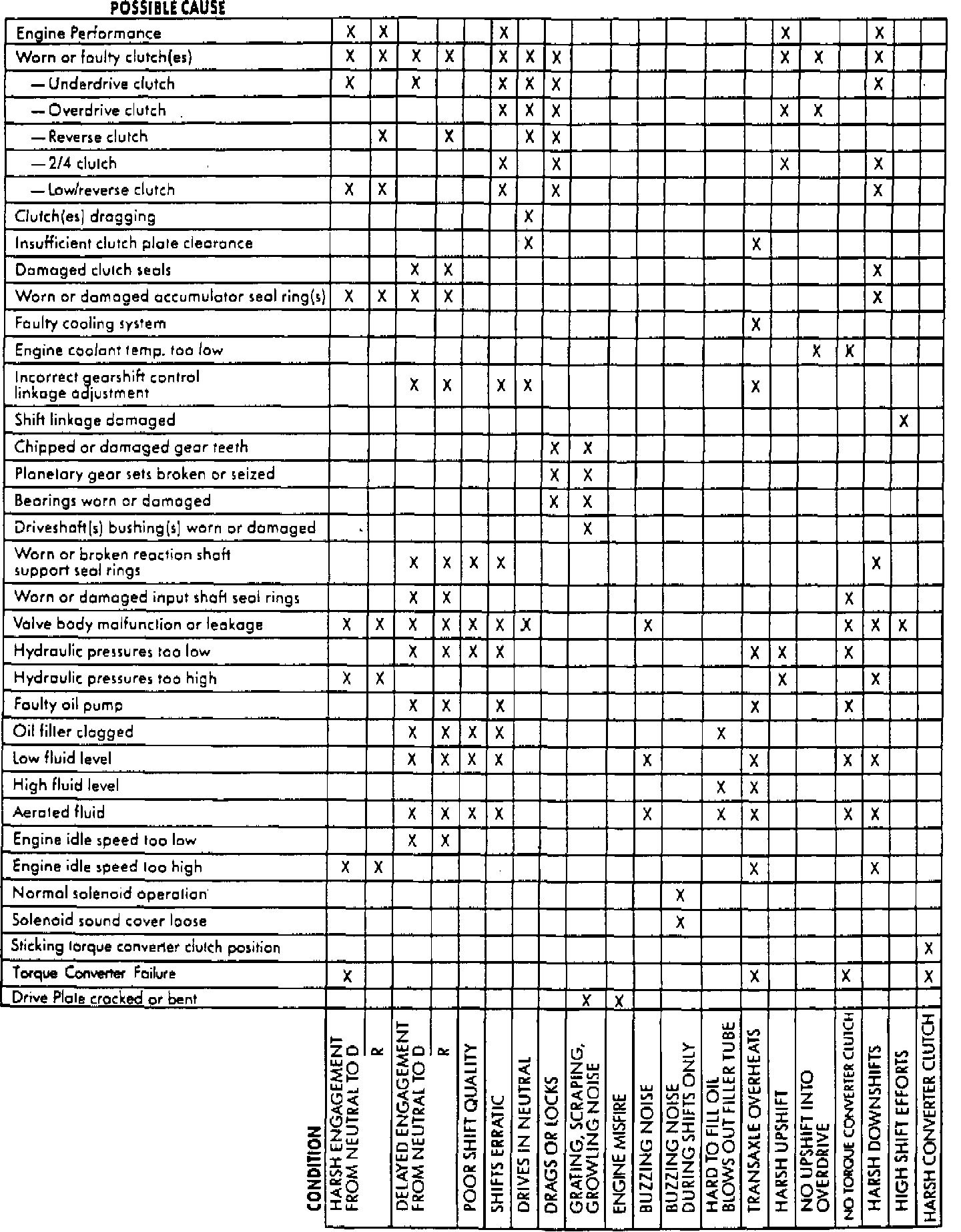

Fig. 5 Troubleshooting (Symptom diagnosis):

Prior to attempting any repair on the 42LE transaxle, general engine performance, transaxle fluid level and shift linkage must first be checked and adjusted, if necessary. For specific symptom diagnosis, refer to Figs. 2 through 5.
