Home >> Dodge >> 1993 >> Colt L4-1468cc 1.5L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> 32 Manifold Absolute Pressure Sensor

32 Manifold Absolute Pressure Sensor

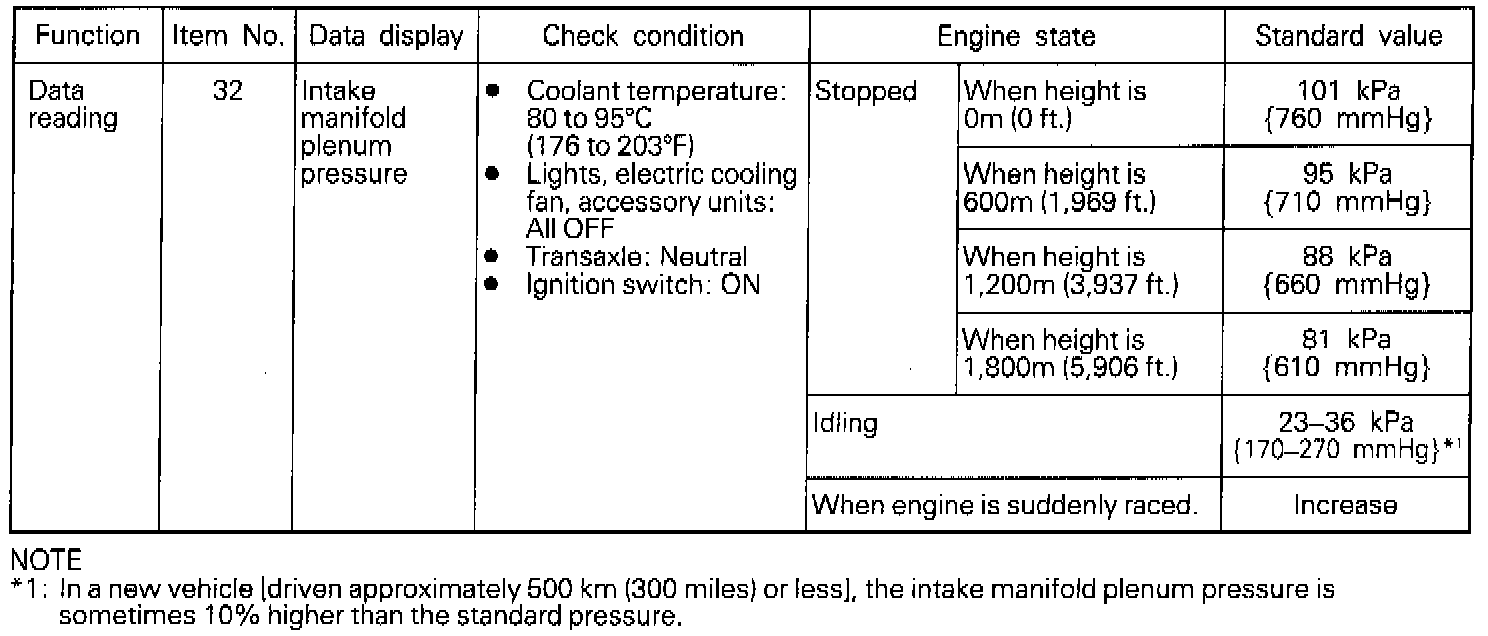

MAP Sensor Scan Tool Data:
