Home >> Dodge >> 1992 >> Spirit R/T L4-135 2213cc 2.2L DOHC Turbo VIN A FI >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Lighting and Horns >> Daytime Running Lamp Control Unit >> Locations

Daytime Running Lamp Control Unit: Locations

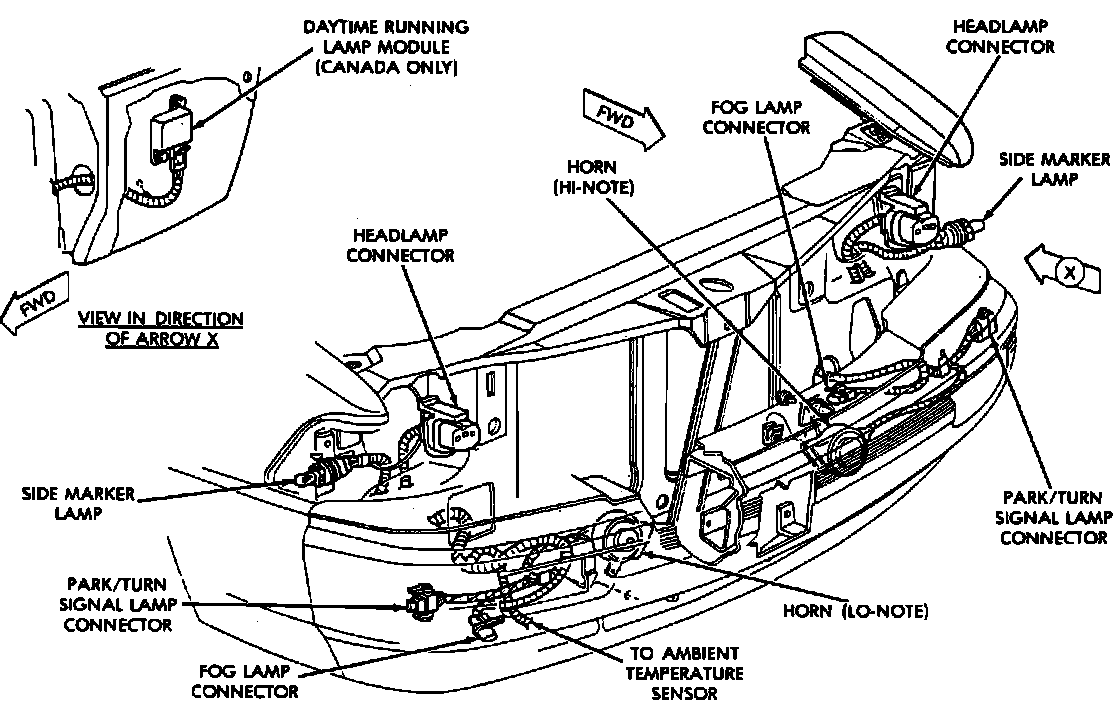

Front End Components & Connectors:




Front LH Side Of Engine Compartment
