Home >> Dodge >> 1992 >> Spirit R/T L4-135 2213cc 2.2L DOHC Turbo VIN A FI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No Start Test >> No Start (NS) Tests >> NS-7A Checking DIS Camshaft & Crankshaft Sensor Circuit >> Part 1 of 4

Part 1 of 4

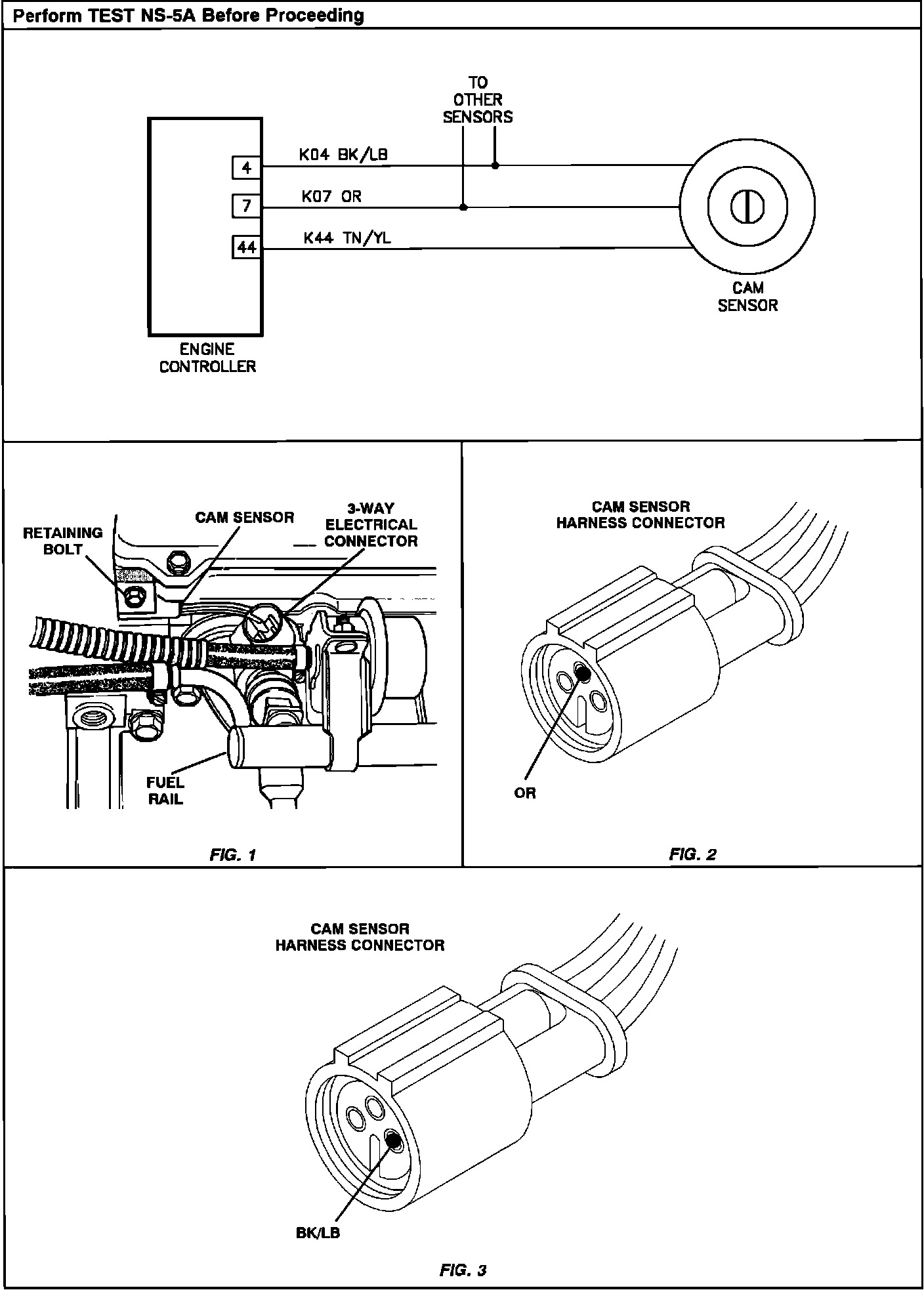

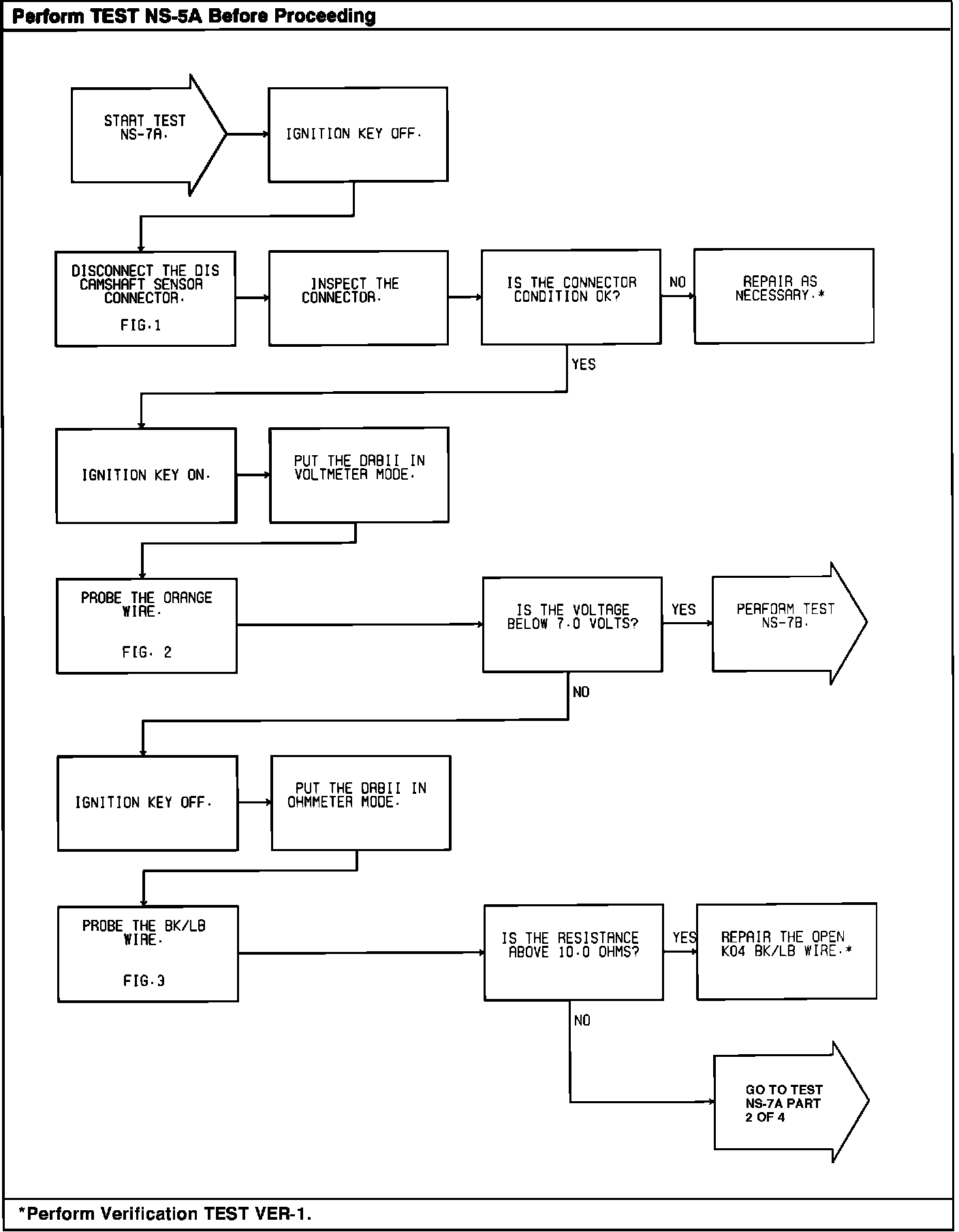

Test NS-7A - Checking DIS Camshaft Sensor And Crankshaft Sensor Circuit:



Test NS-7A - Checking DIS Camshaft Sensor And Crankshaft Sensor Circuit:
