Spirit R/T L4-135 2213cc 2.2L DOHC Turbo VIN A FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
No Start Test
>>
No Start (NS) Tests
>>

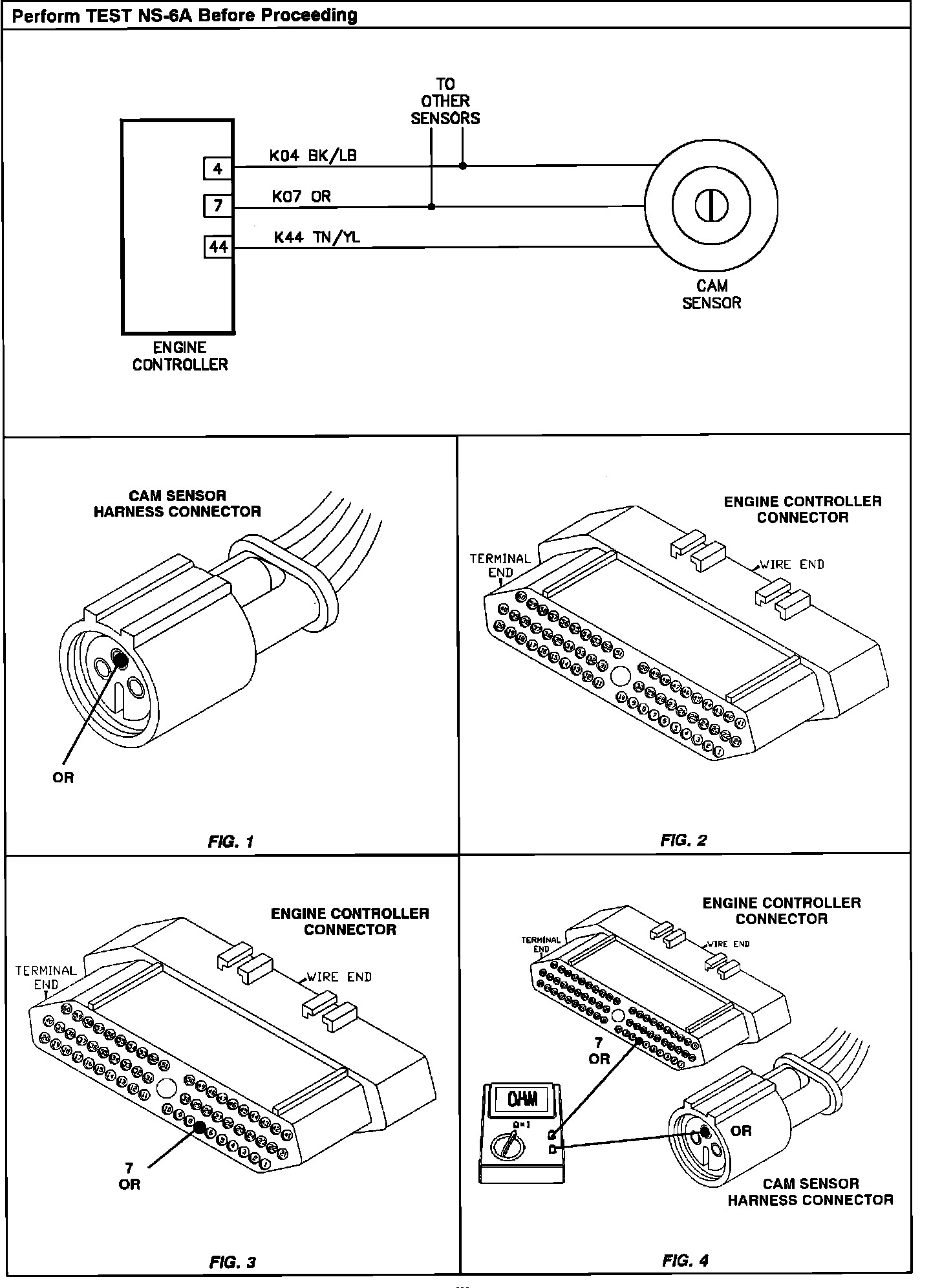

NS-6B Checking DIS Signal Status & DIS Crank Sensor
NS-6B Checking DIS Signal Status & DIS Crank Sensor

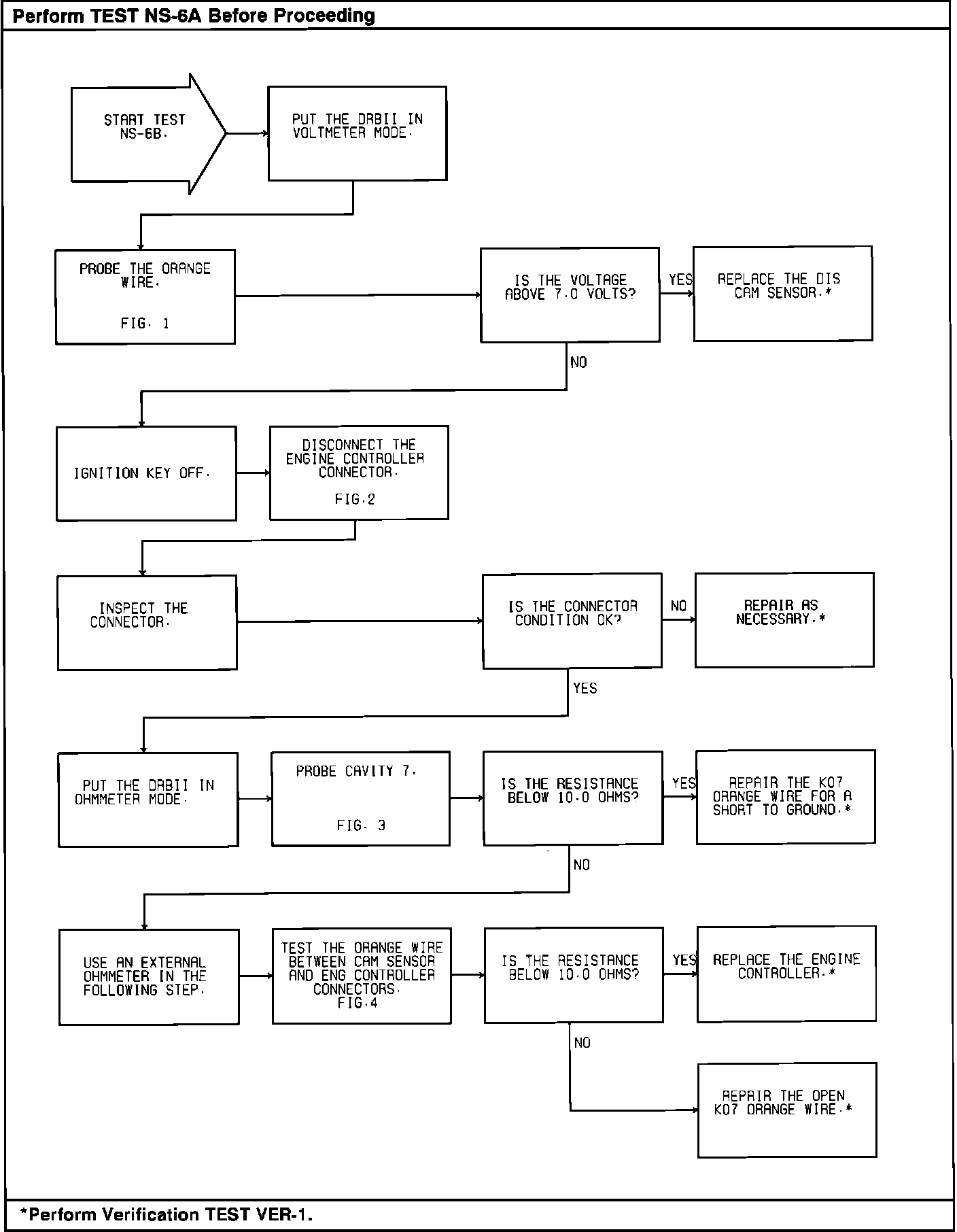

Test NS-6B - Checking DIS Camshaft Signal:
Test NS-6B - Checking DIS Camshaft Signal:
