Home >> Dodge >> 1992 >> Spirit R/T L4-135 2213cc 2.2L DOHC Turbo VIN A FI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No Start Test >> No Start (NS) Tests >> NS-3A Checking the Engine Mechanical Systems >> Part 1 of 2

Part 1 of 2

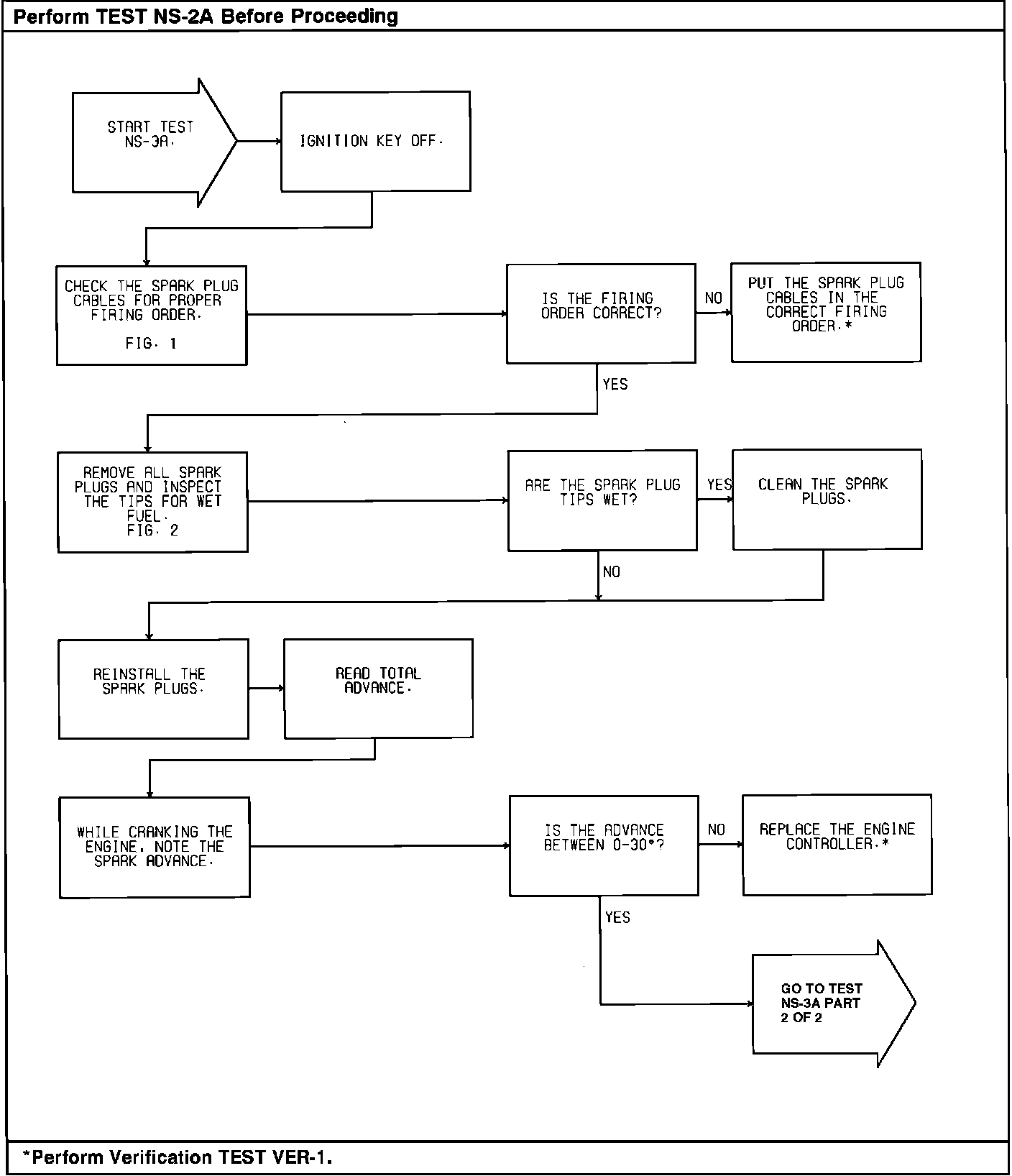

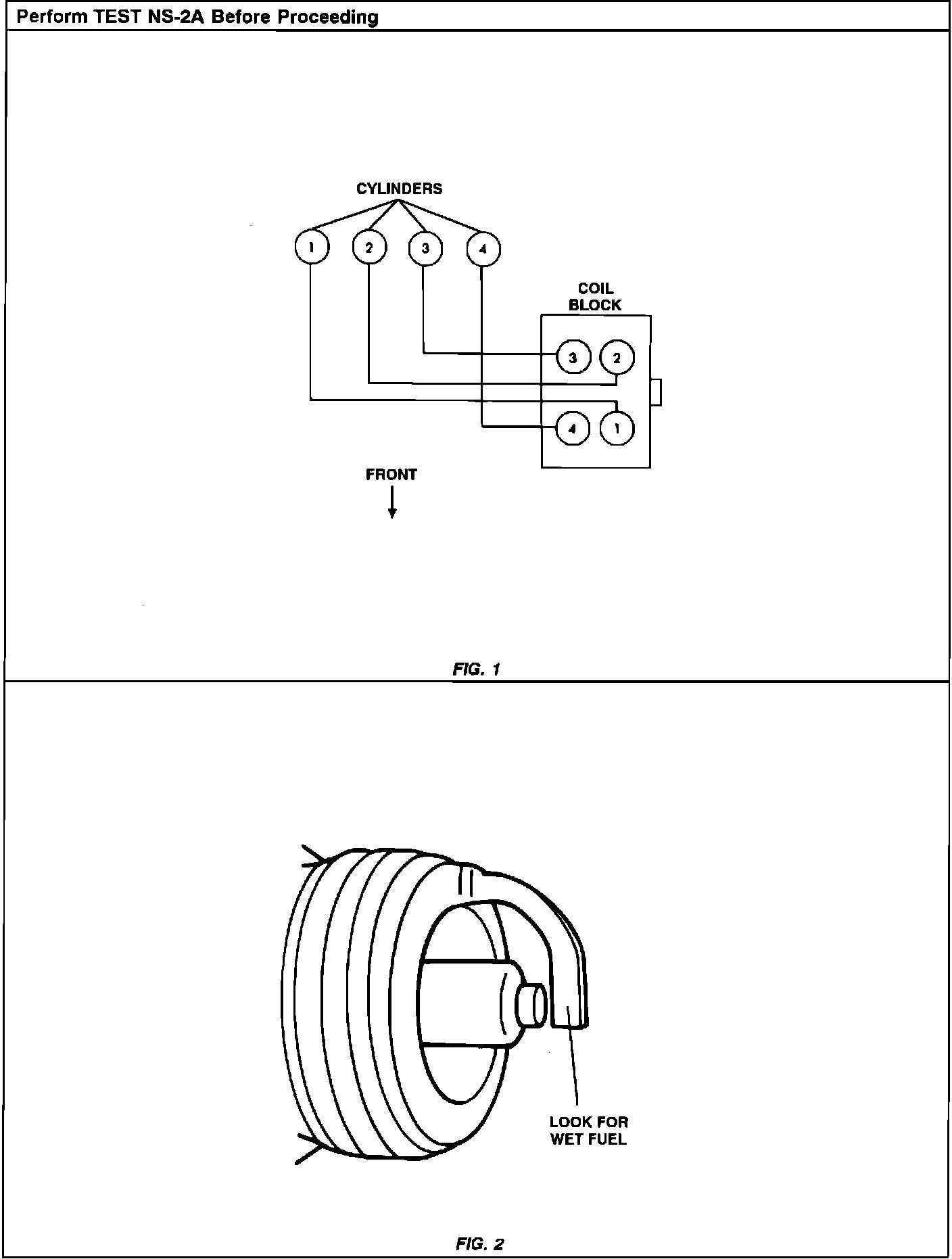

Test NS-3A - Checking Spark Delivery And Engine Mechanical:



Test NS-3A - Checking Spark Delivery And Engine Mechanical:
