Spirit R/T L4-135 2213cc 2.2L DOHC Turbo VIN A FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
No Start Test
>>
No Start (NS) Tests
>>
NS-2A Checking Fuel System
NS-2A Checking Fuel System

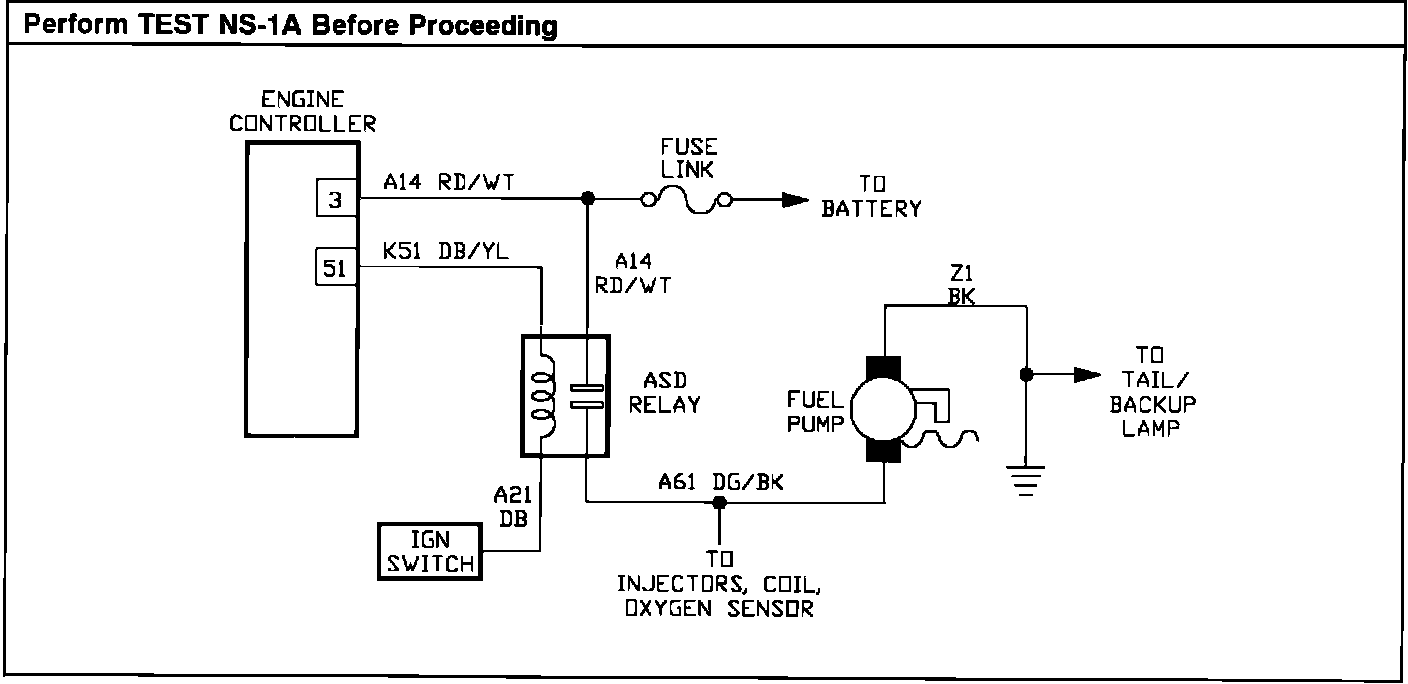

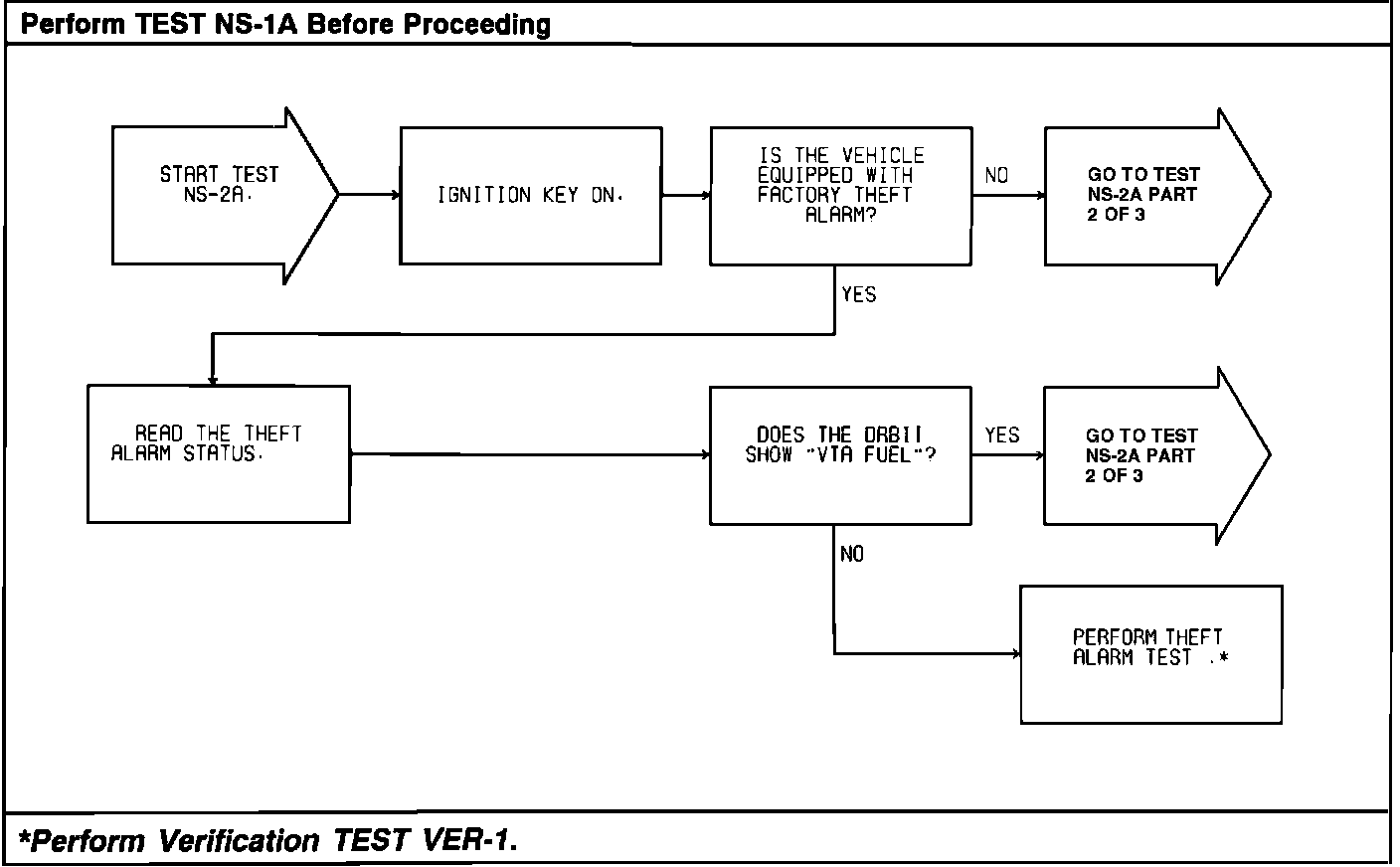

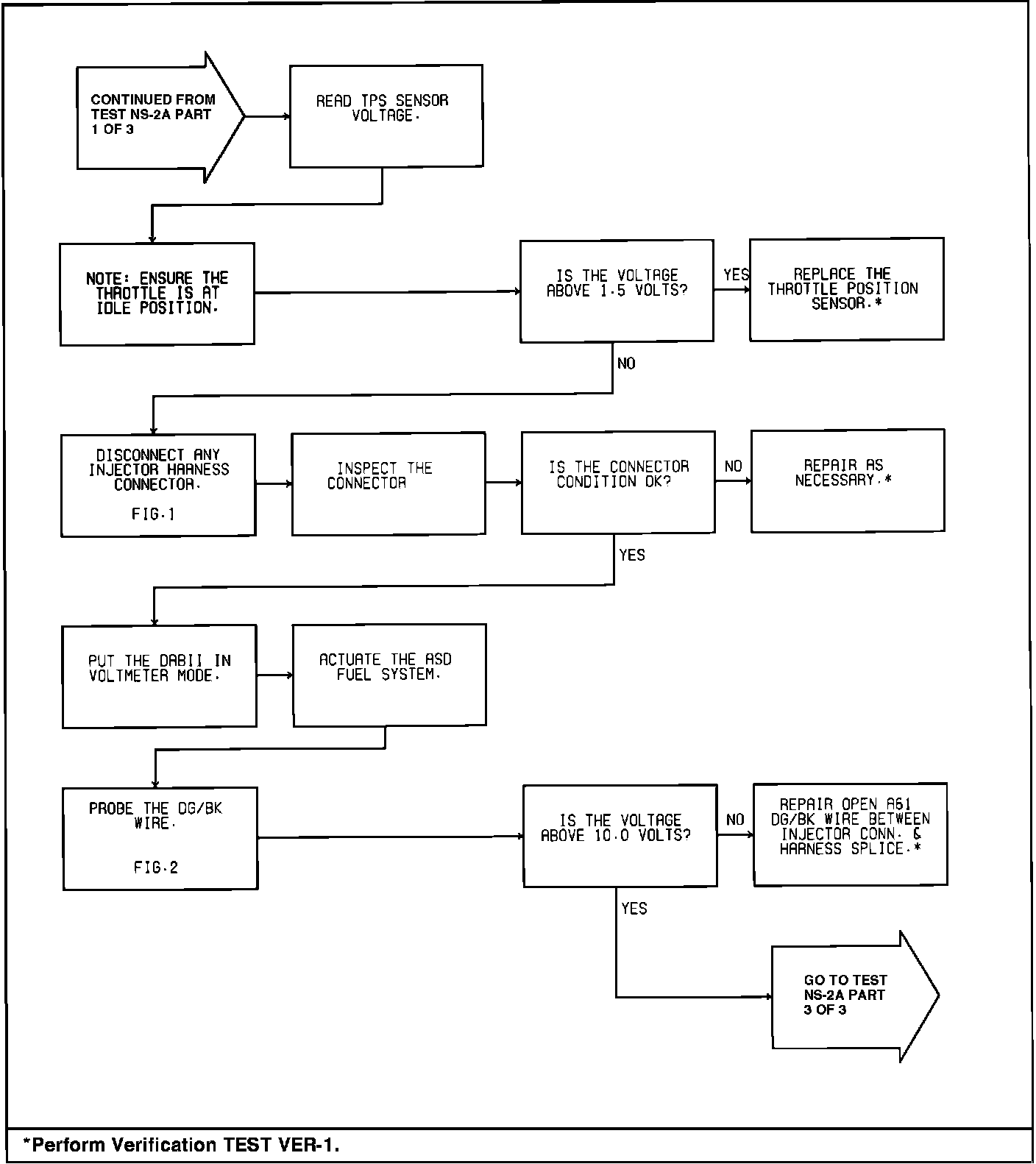

Test NS-2A - Checking Fuel System:
Test NS-2A - Checking Fuel System:
Test NS-2A - Checking Fuel System:
Test NS-2A - Checking Fuel System:
Test NS-2A - Checking Fuel System:
Test NS-2A - Checking Fuel System:
