Part 1 of 3

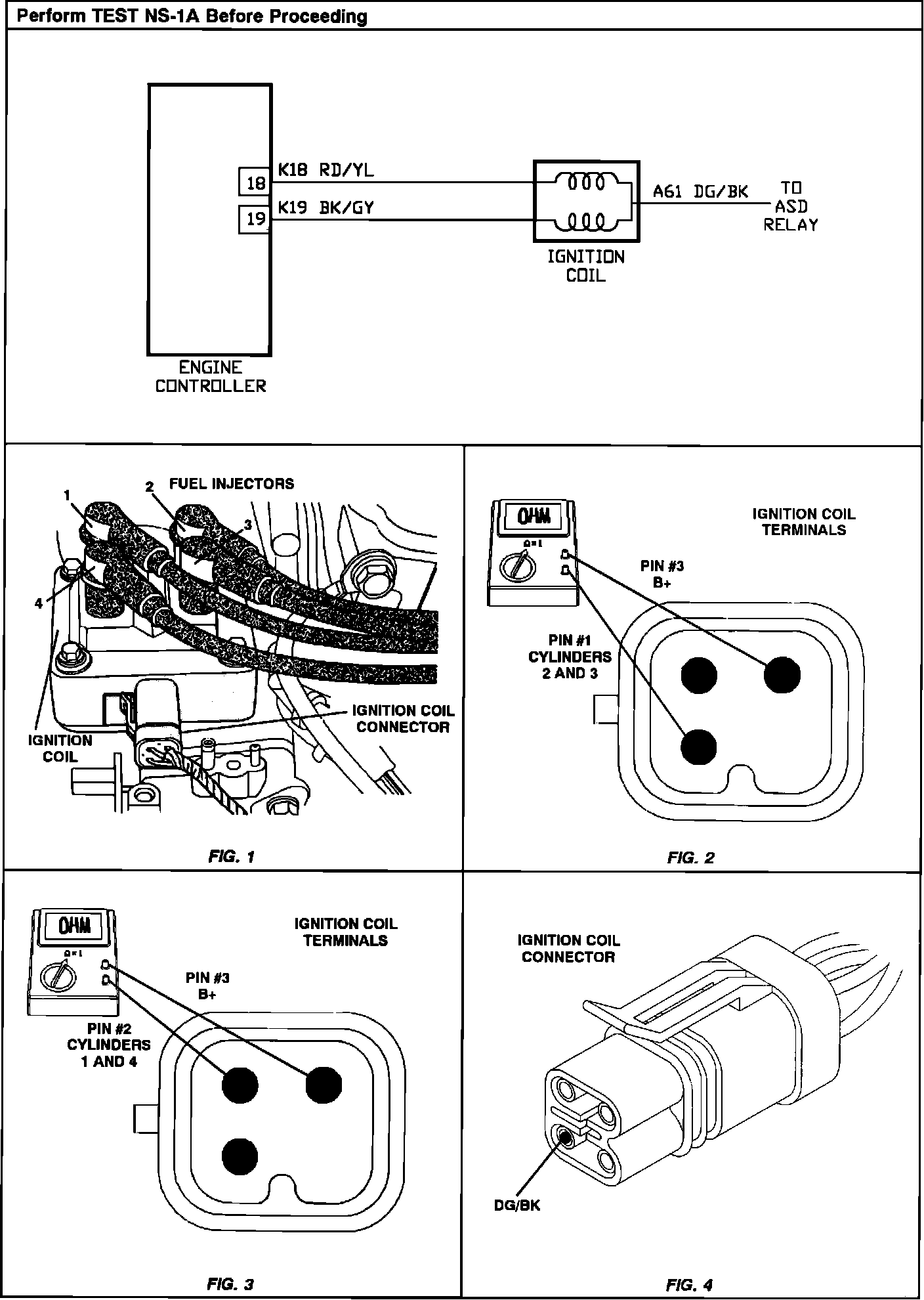

Test NS-10A - Repairing Ignition Coil Circuit:



Test NS-10A - Repairing Ignition Coil Circuit:
