Tachometer Drive Module: Locations

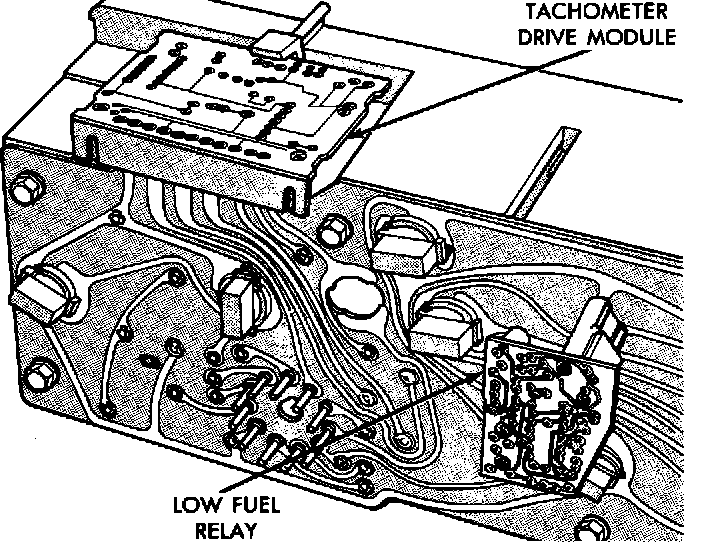

Tachometer Drive Module And Low Fuel Relay:





The tachometer drive module is located on the top right corner of the instrument cluster assembly.
