No Start Test
>>
No Start (NS) Tests
>>
NS-8A Checking For High Fuel Pressure at Pressure Regulator
>>
Part 1 of 2
Part 1 of 2

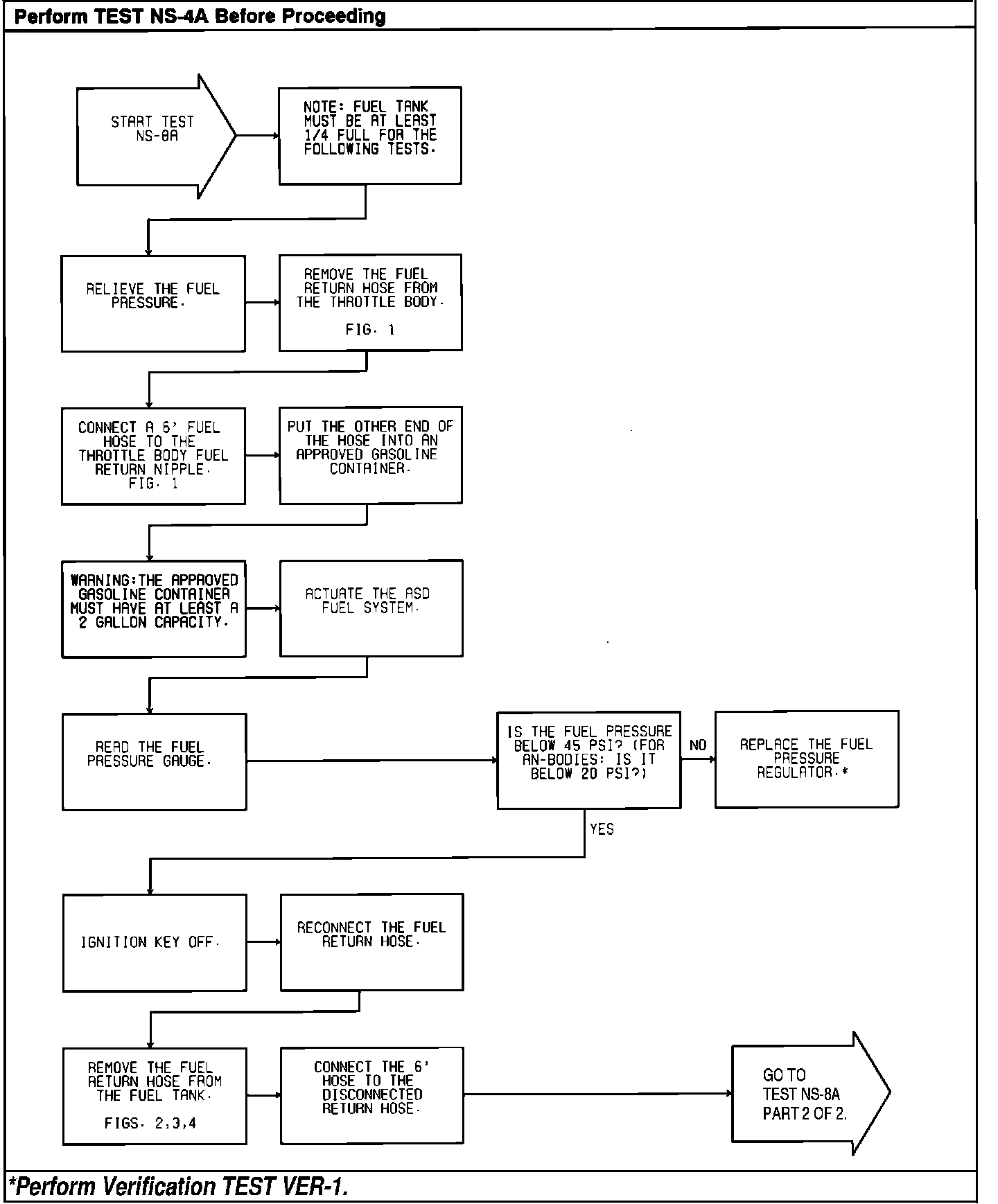

Test NS-8A - Checking For High Fuel Pressure At Pressure Regulator And Fuel Tank:
Checking For High Fuel Pressure At Pressure Regulator And Fuel Tank:
