Home >> Dodge >> 1991 >> Shadow Convertible L4-153 2.5L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No Start Test >> No Start (NS) Tests >> NS-7B Checking Flooding Injector/Fuel System Restriction >> Part 1 of 2

Part 1 of 2

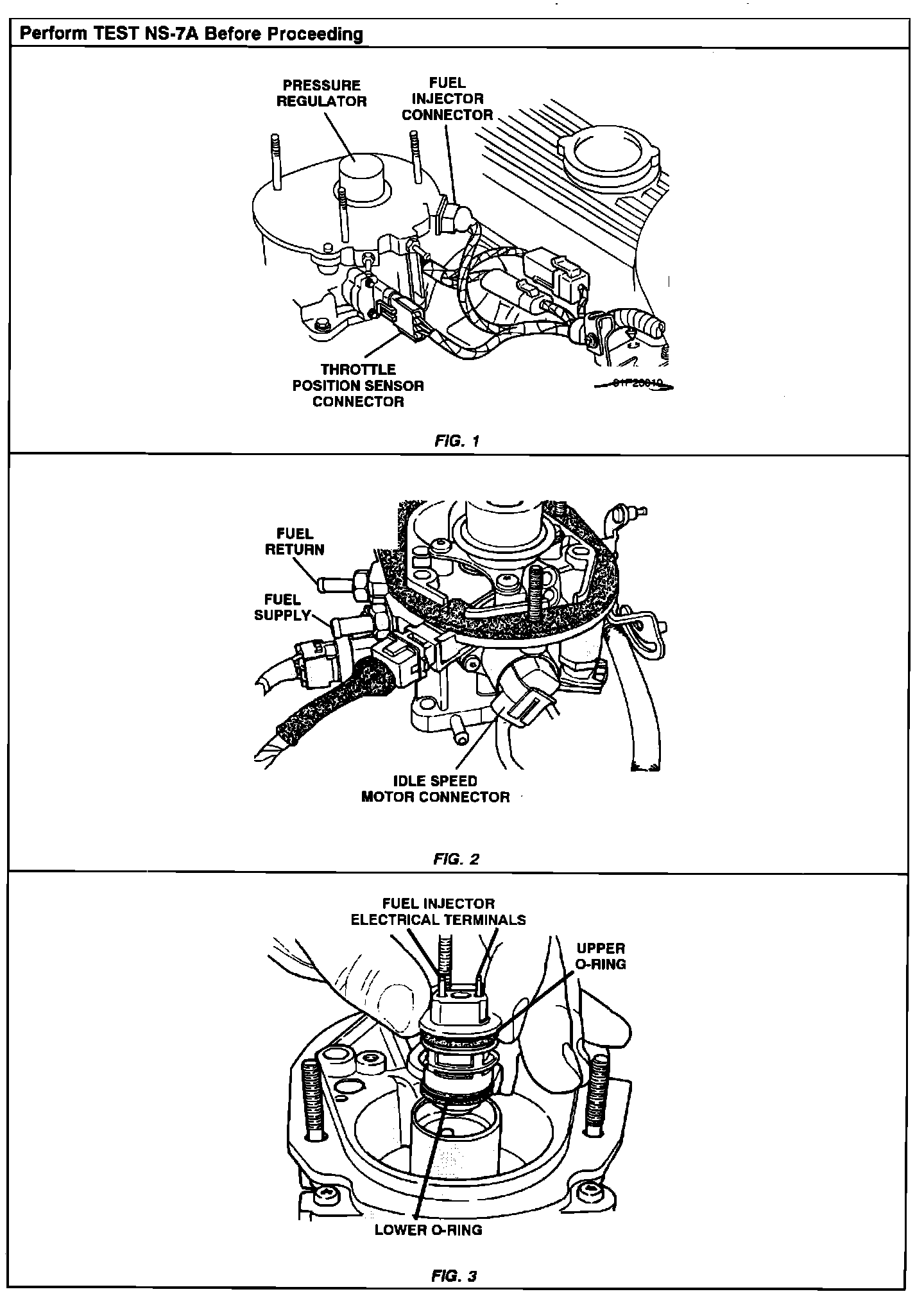

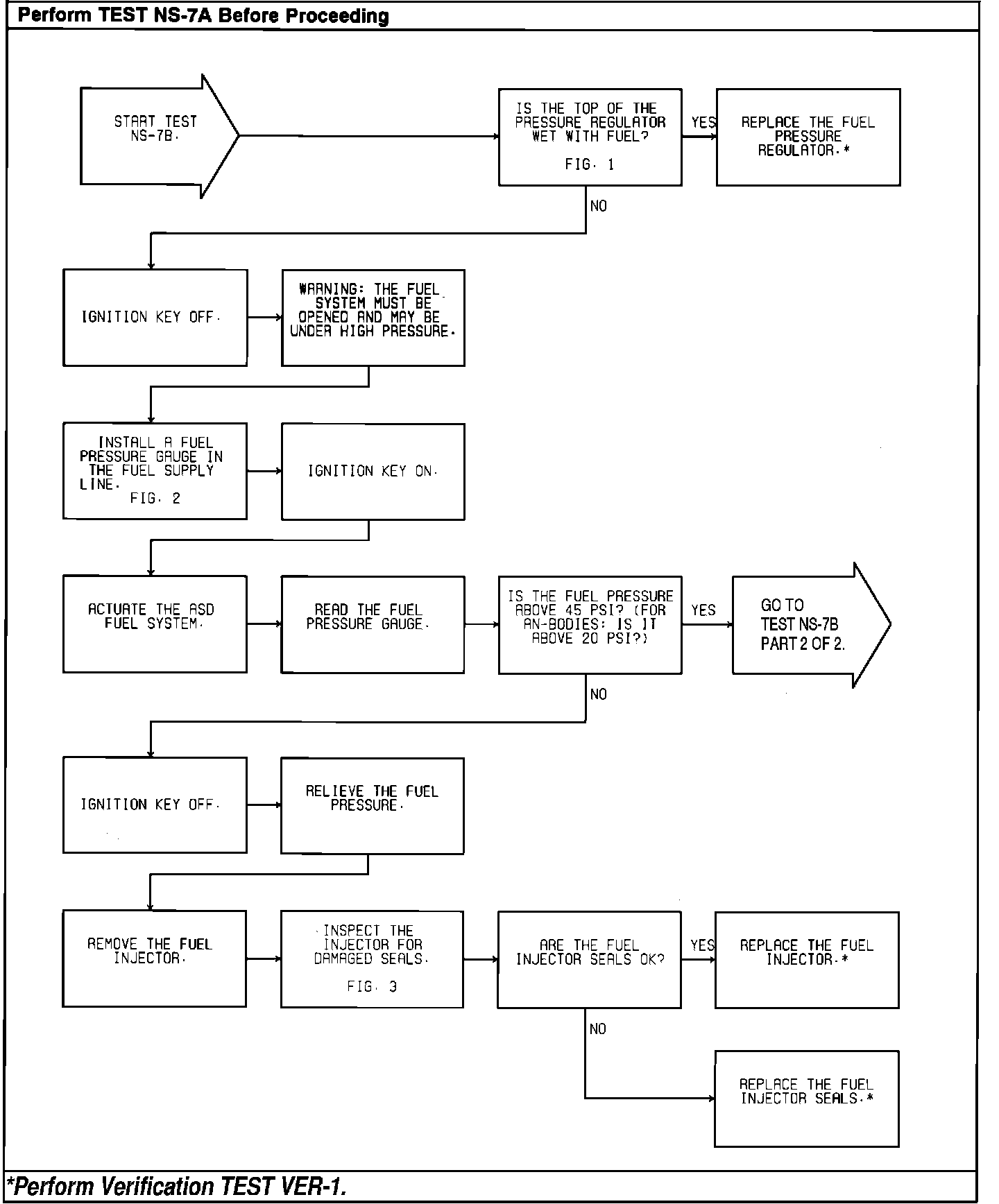

Test NS-7B - Checking For Flooding Fuel Injector, Kinked Fuel Lines, Pressure Regulator Operation:



Test NS-7B - Checking For Flooding Fuel Injector, Kinked Fuel Lines, Pressure Regulator Operation:
