No Start Test
>>
No Start (NS) Tests
>>
NS-2A Checking For Fuel Spray & Fault Messages
NS-2A Checking For Fuel Spray & Fault Messages

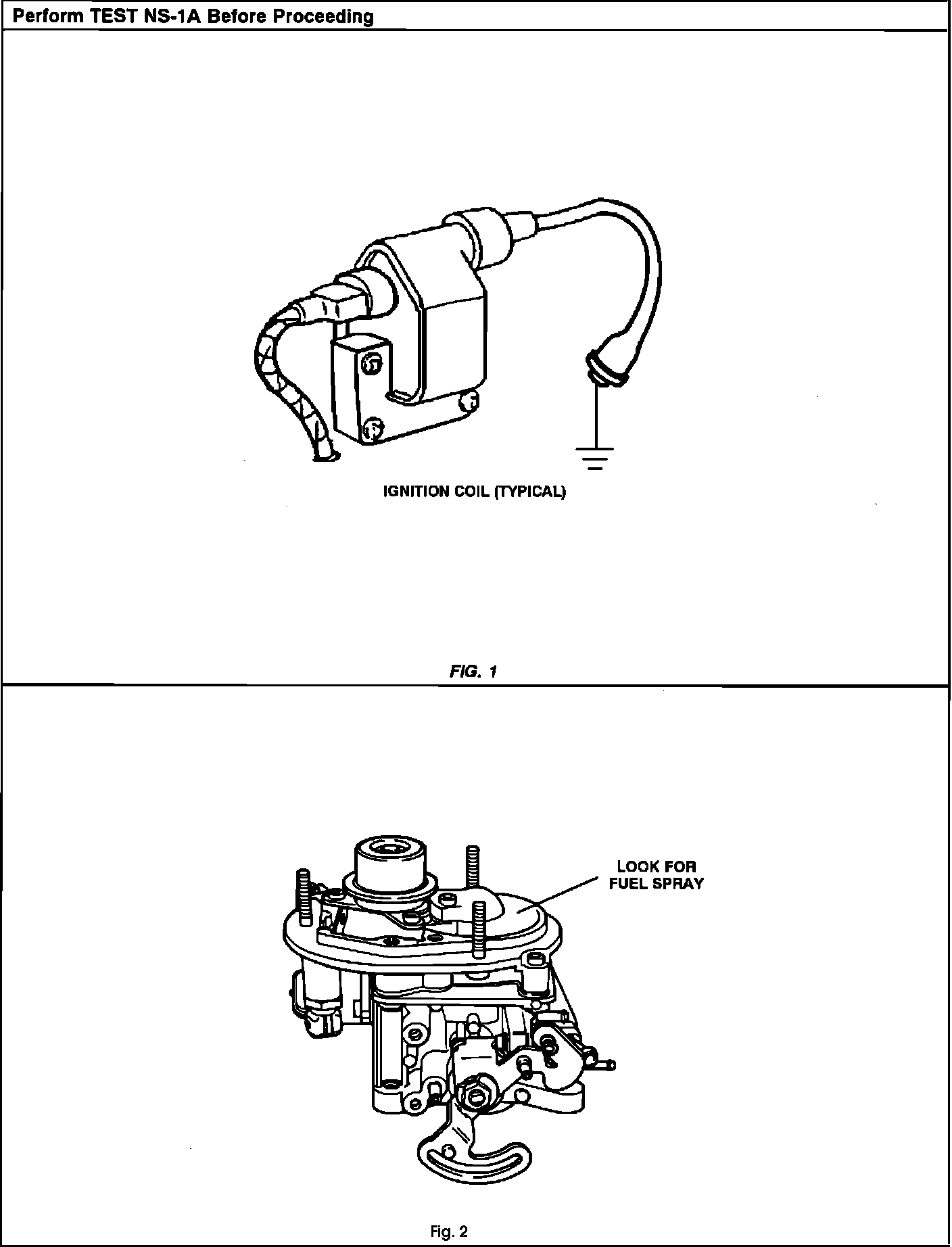

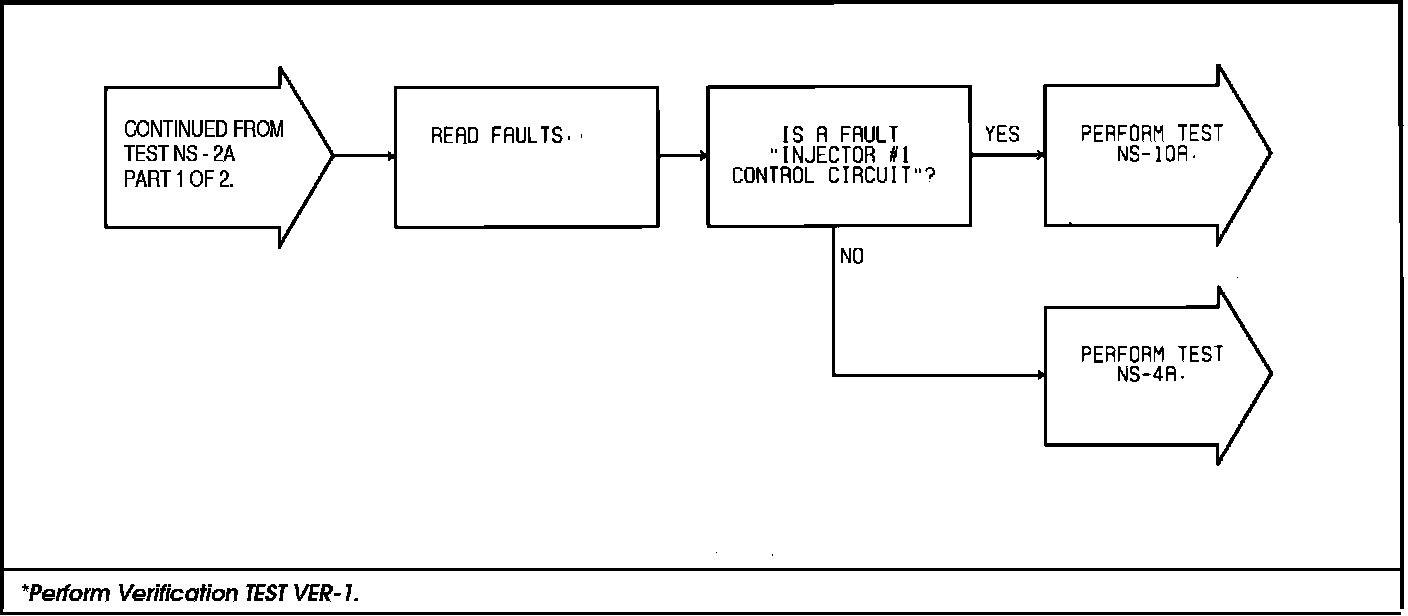

Test NS-2A - Checking For Fuel Spray and Fault Messages:
Test NS-2A - Checking For Fuel Spray and Fault Messages:
Test NS-2A - Checking For Fuel Spray and Fault Messages:
