No Start Test
>>
No Start (NS) Tests
>>
NS-15A Checking ASD Relay Fuel Pump O2 Sensor & Injectors
>>
Part 1 of 3
Part 1 of 3

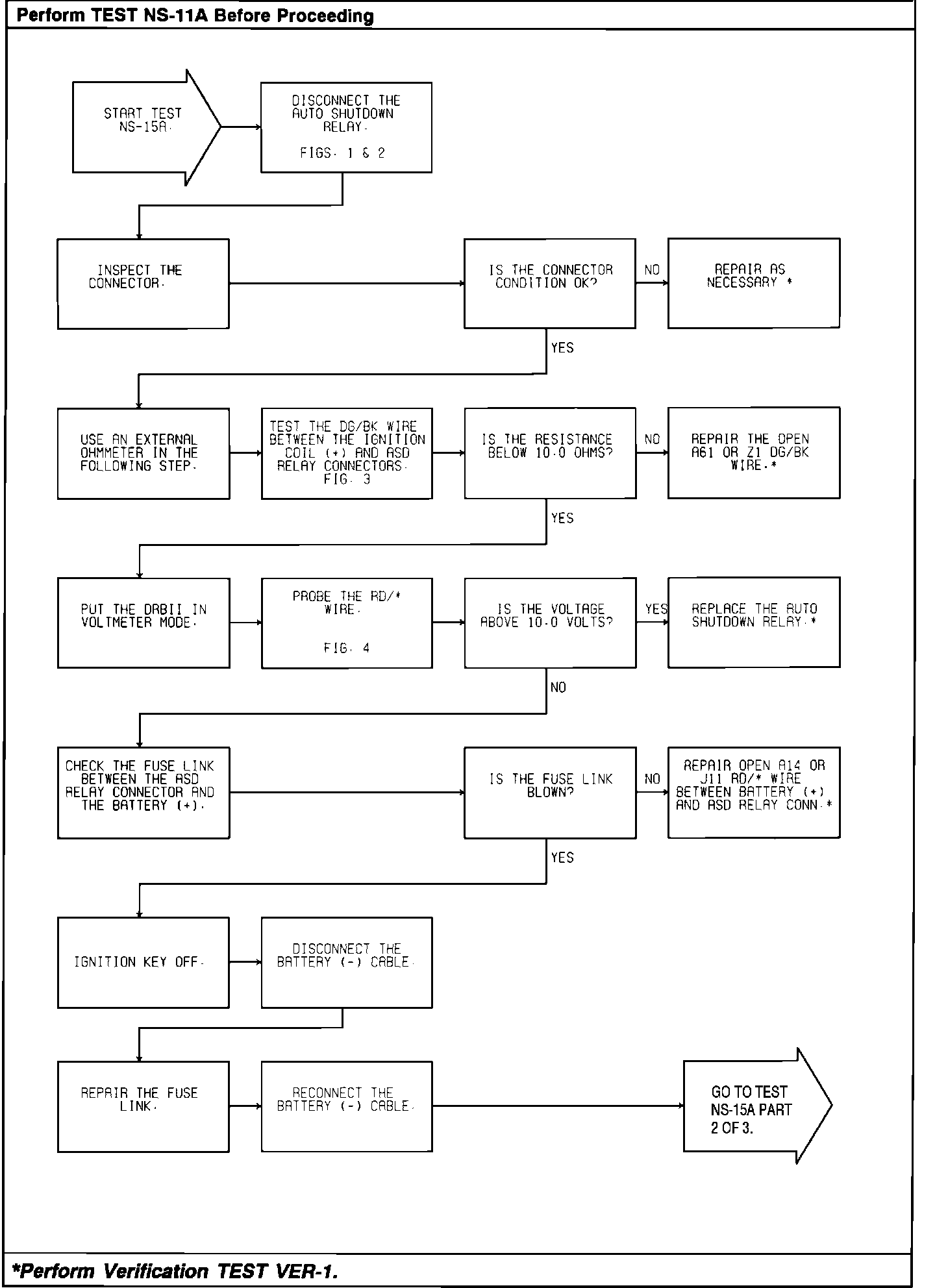

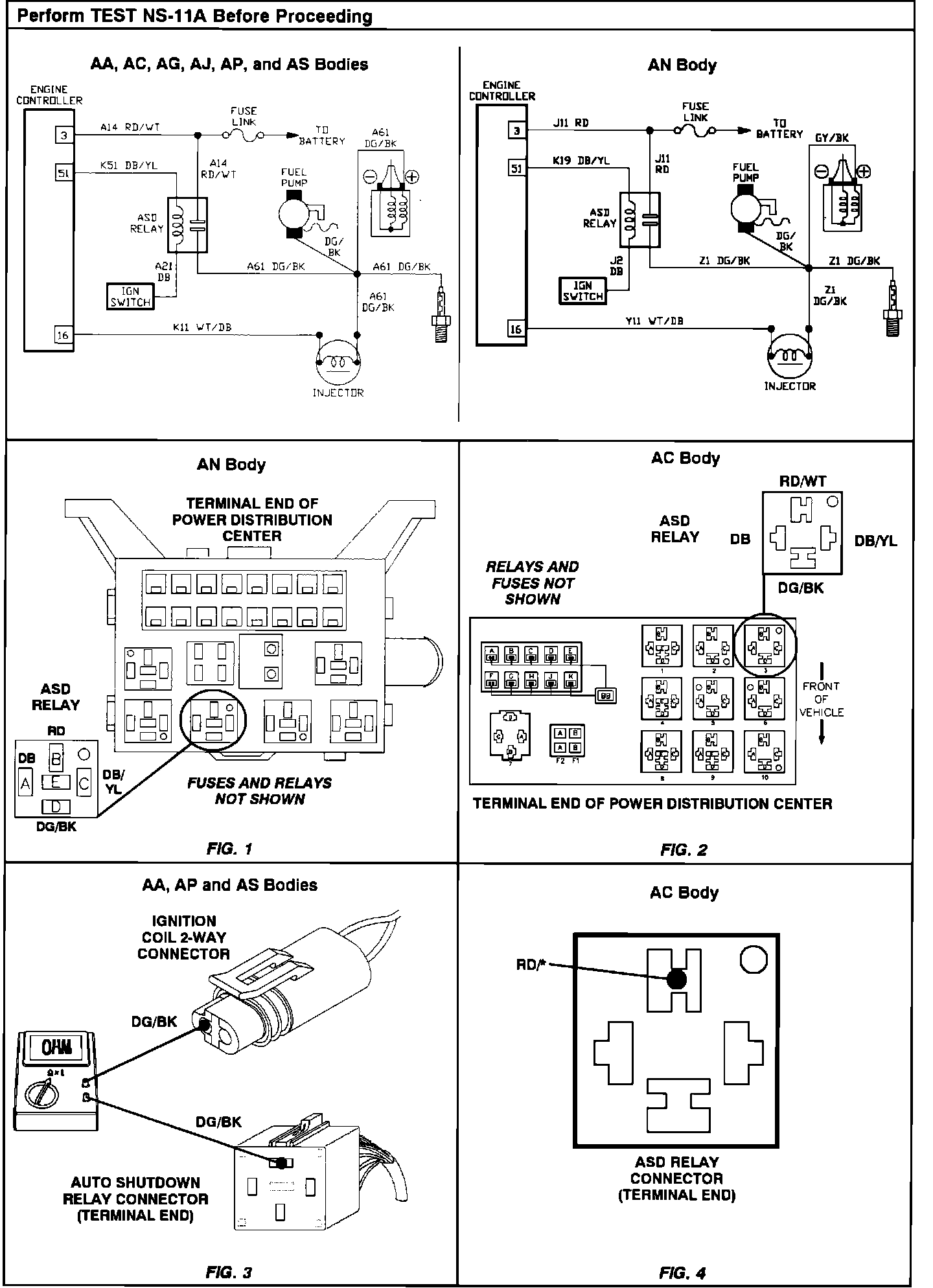

Test NS-15A - CHK. ASD Relay And Power Feed To Fuel Pump, Oxygen Sensor, And Injectors:
Test NS-15A - CHK. ASD Relay And Power Feed To Fuel Pump, Oxygen Sensor, And Injectors:
