Home >> Dodge >> 1991 >> Shadow Convertible L4-153 2.5L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No Start Test >> No Start (NS) Tests >> NS-14A Reparing "ASD Shutdown Relay Control Circuit Fault >> Part 1 of 2

Part 1 of 2

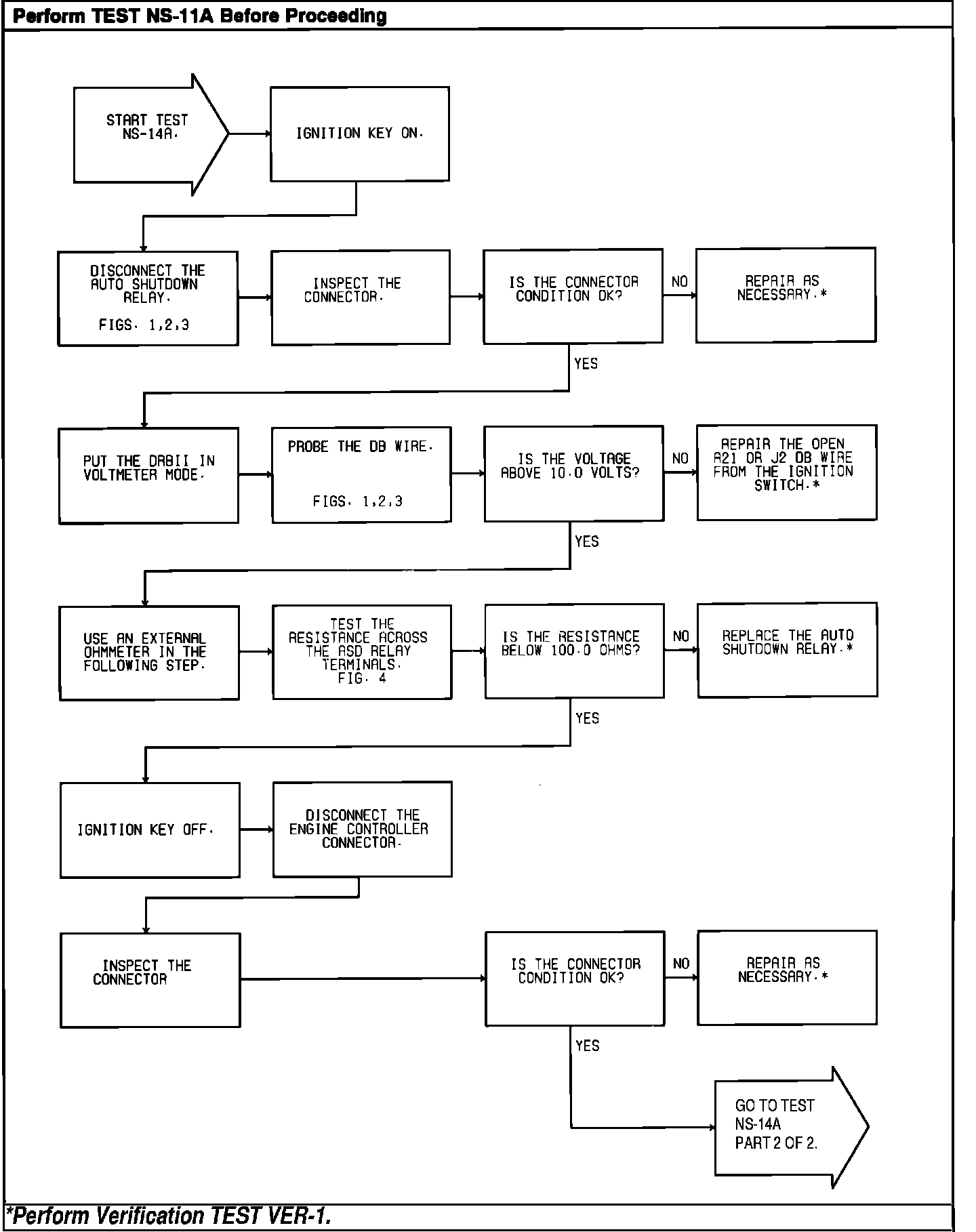

Test NS-14A - "ASD Shutdown Relay Control Circuit":

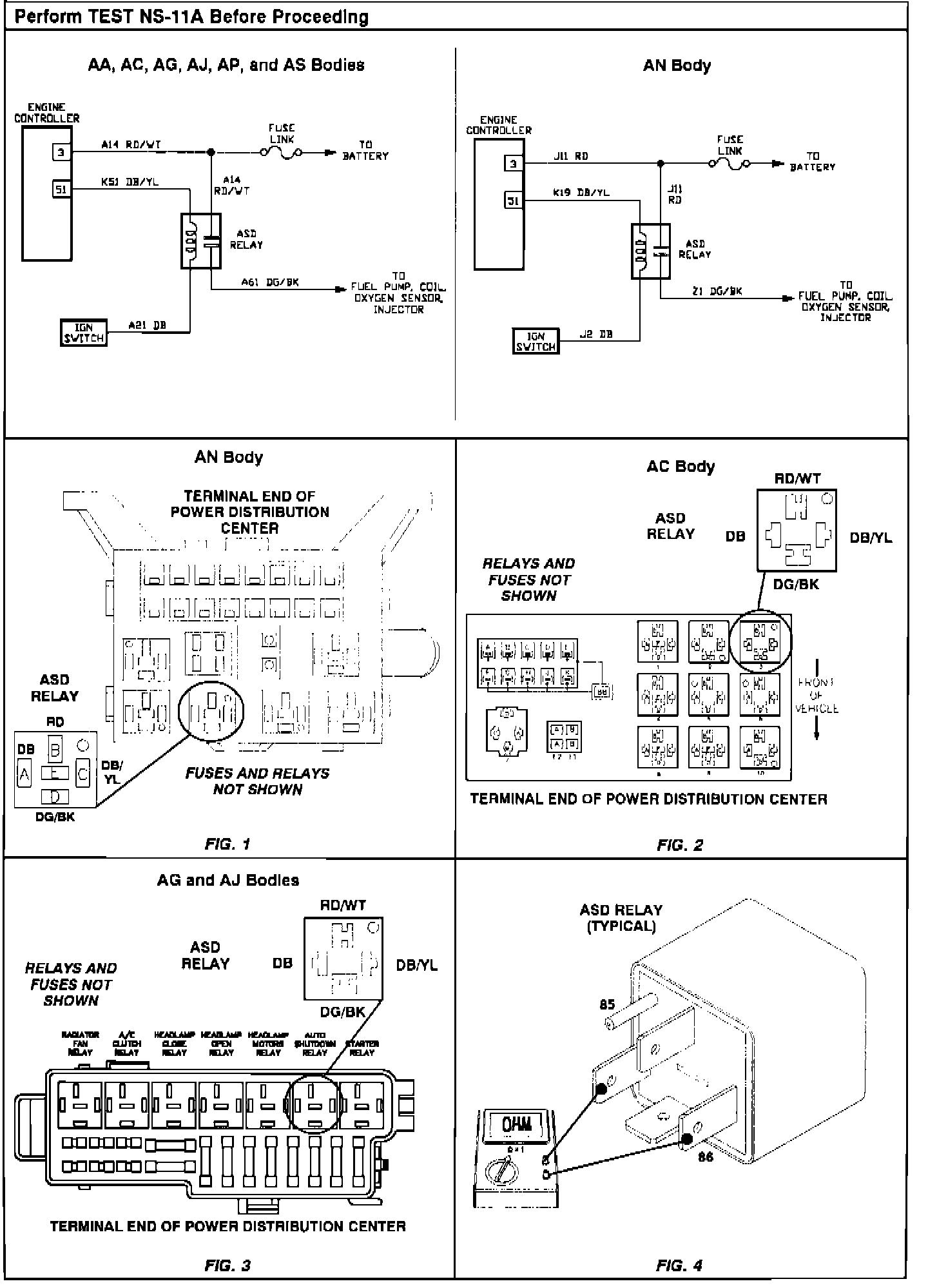

Test NS-14A - "ASD Shutdown Relay Control Circuit":
