FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Dodge
>>
1991
>>
Shadow Convertible L4-153 2.5L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
No Start Test
>>
No Start (NS) Tests
>>
NS-12B Checking System Ground & Engine Controller
>>
Part 2 of 2
Part 2 of 2

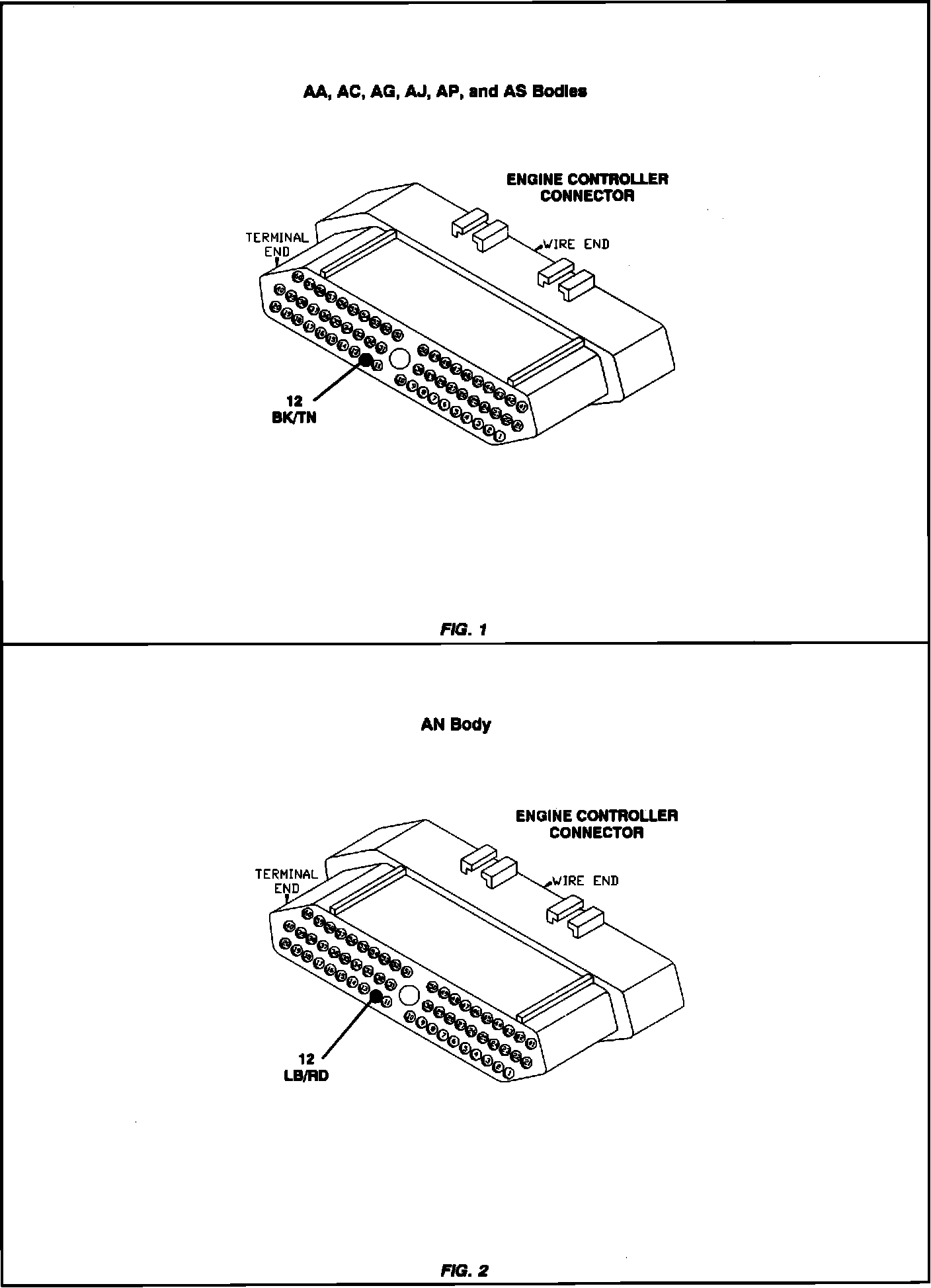

Test NS-12B - Checking System Ground And Engine Controller:
Test NS-12B - Checking System Ground And Engine Controller:
