Home >> Dodge >> 1991 >> Shadow Convertible L4-153 2.5L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No Start Test >> No Start (NS) Tests >> NS-12B Checking System Ground & Engine Controller >> Part 1 of 2

Part 1 of 2

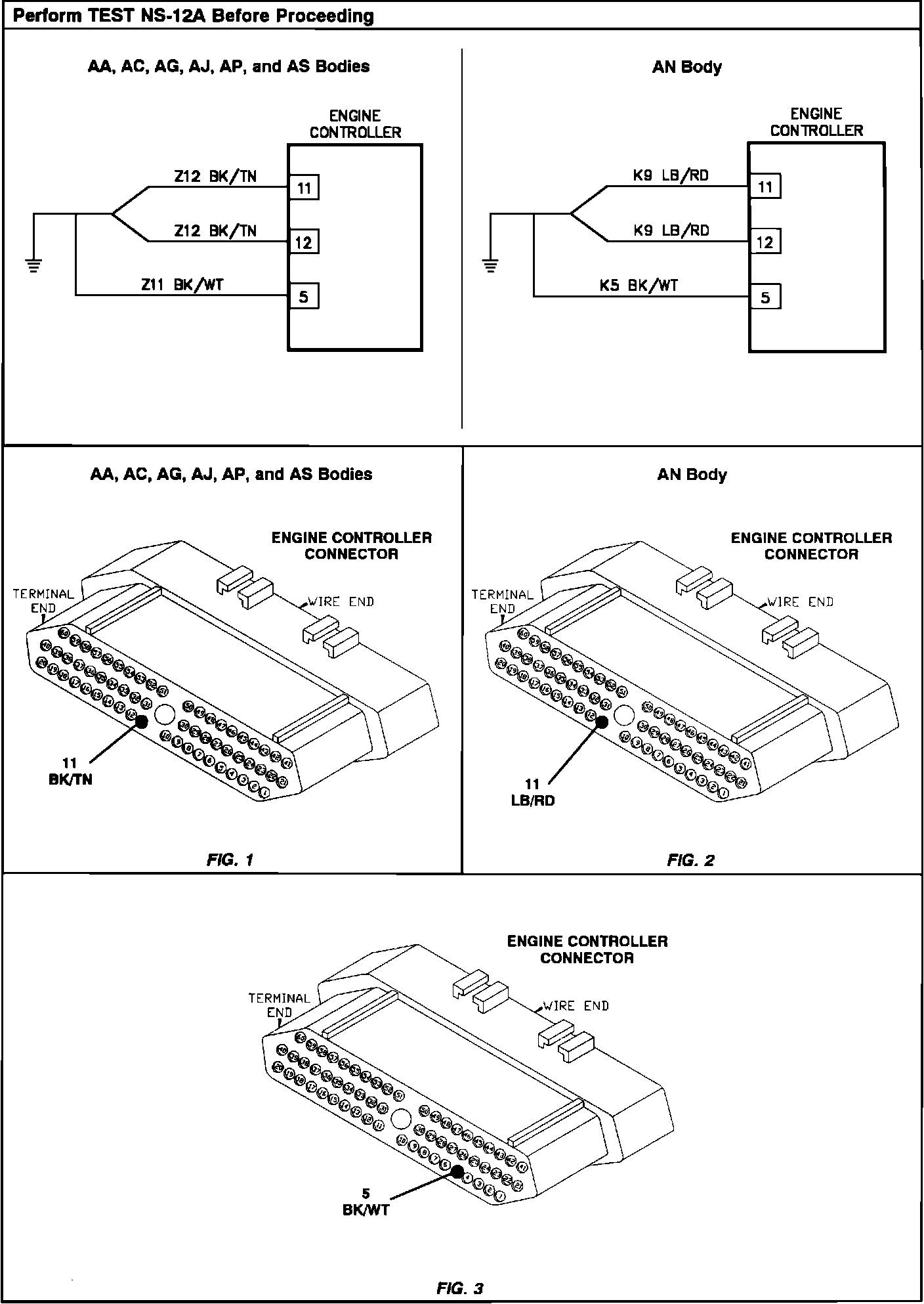

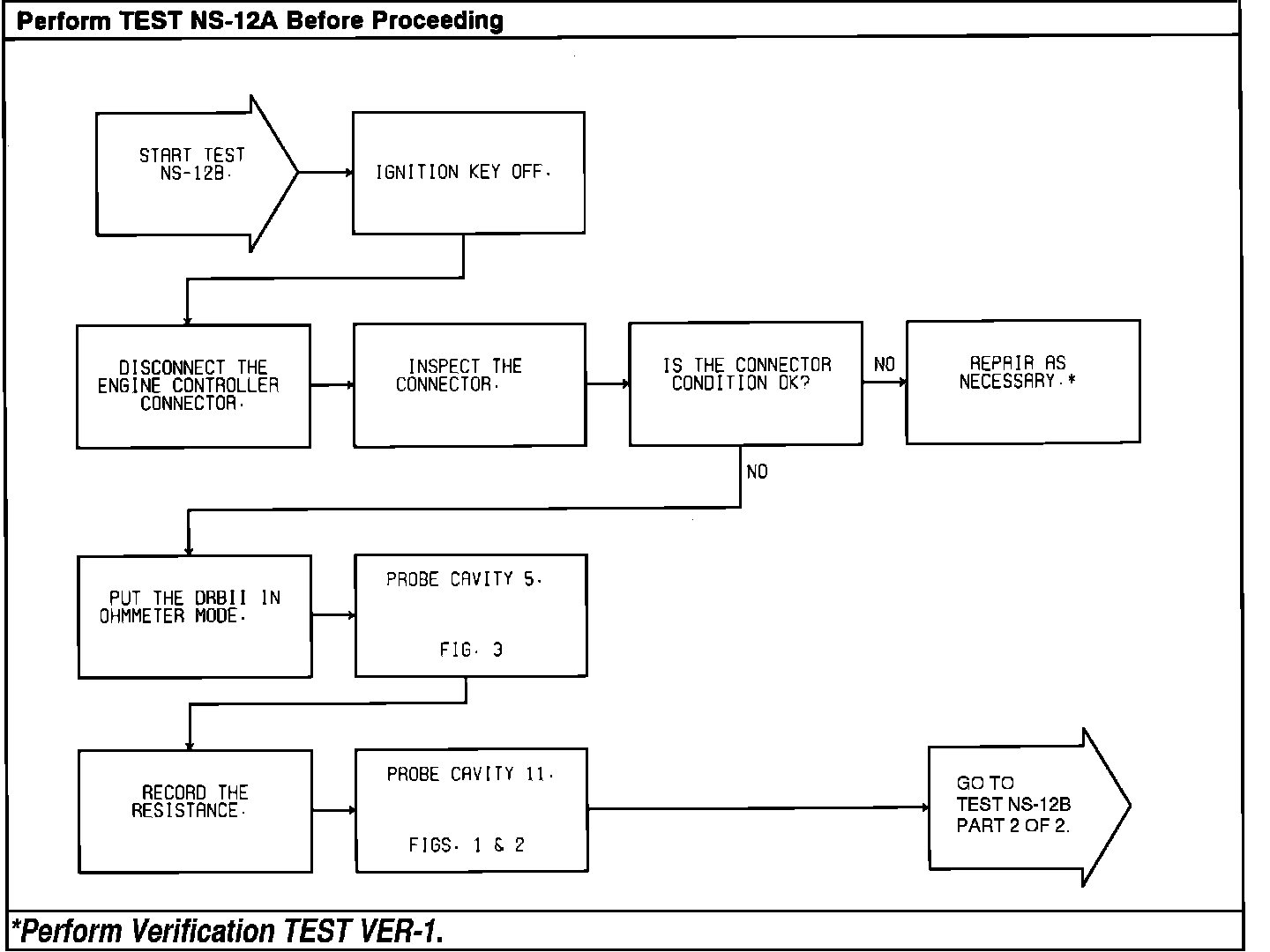

Test NS-12B - Checking System Ground And Engine Controller:



Test NS-12B - Checking System Ground And Engine Controller:
