No Start Test
>>
No Start (NS) Tests
>>
NS-12A Checking System Power MAP Sensor & SBEC
>>
Part 1 of 2
Part 1 of 2

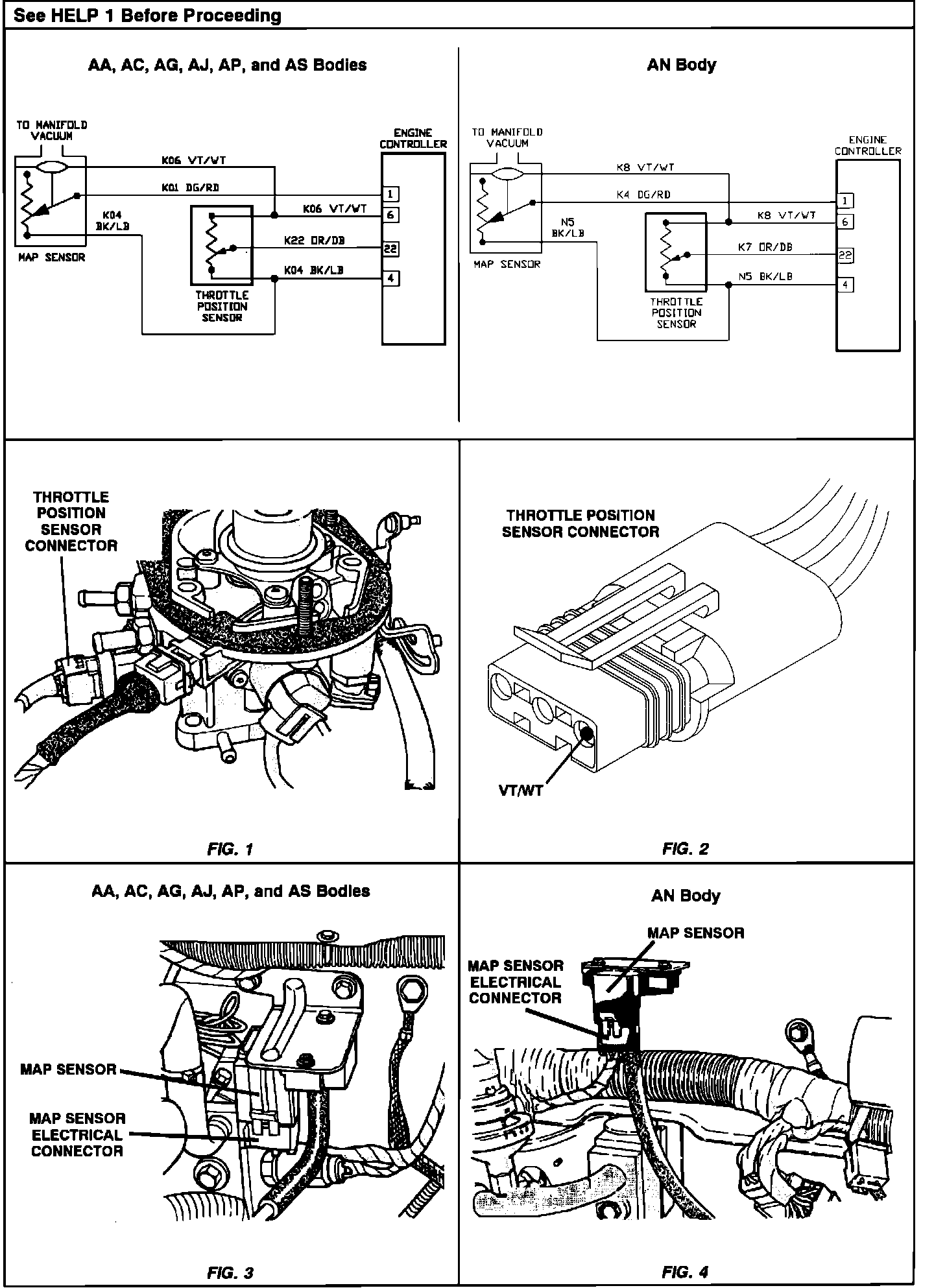

Test NS-12A - CHK. System Power And Operation Of MAP Sensor and Engine Controller:
Test NS-12A - CHK. System Power And Operation Of MAP Sensor and Engine Controller:
