No Start Test
>>
No Start (NS) Tests
>>
NS-11A Checking DRBII & System Faults
NS-11A Checking DRBII & System Faults

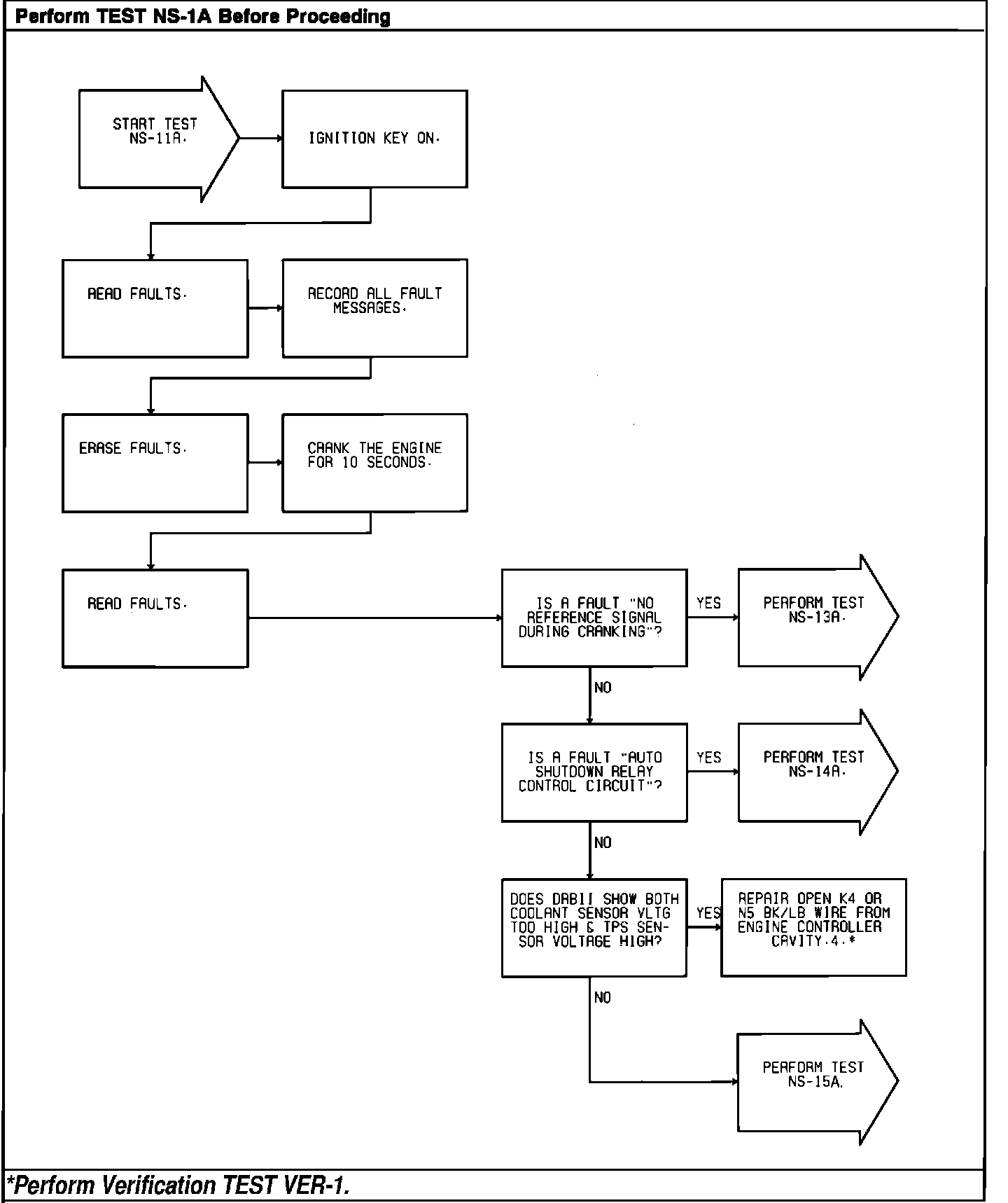

Test NS-11A - Checking Scanner And System Faults:
