Home >> Dodge >> 1991 >> Shadow Convertible L4-153 2.5L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Wiring Diagrams >> Part 3

Part 3

Electronic Fuel Injection, Ignition System:

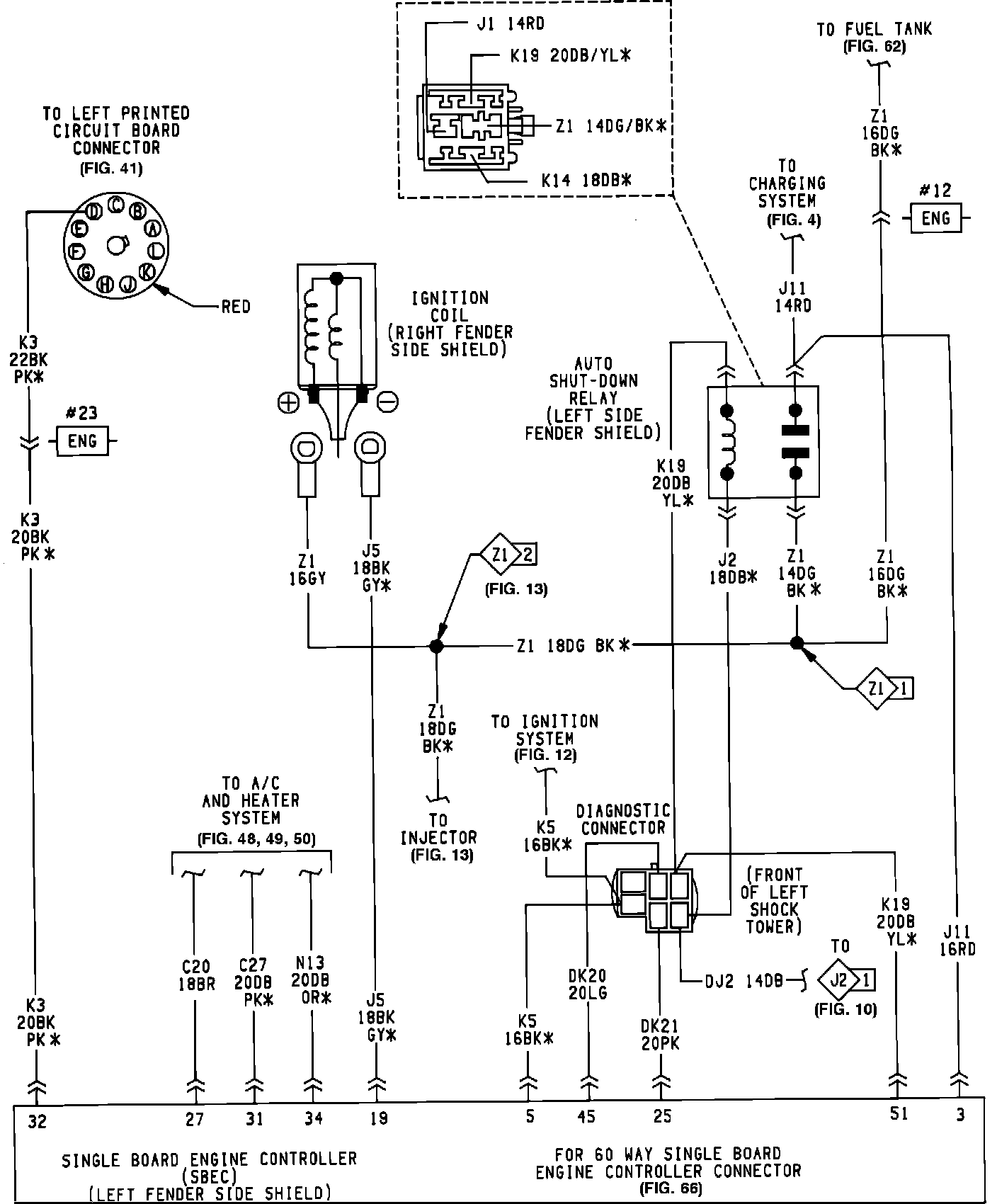

Fuel Injection/Ignition System Less Turbo:
