Part 3 of 5

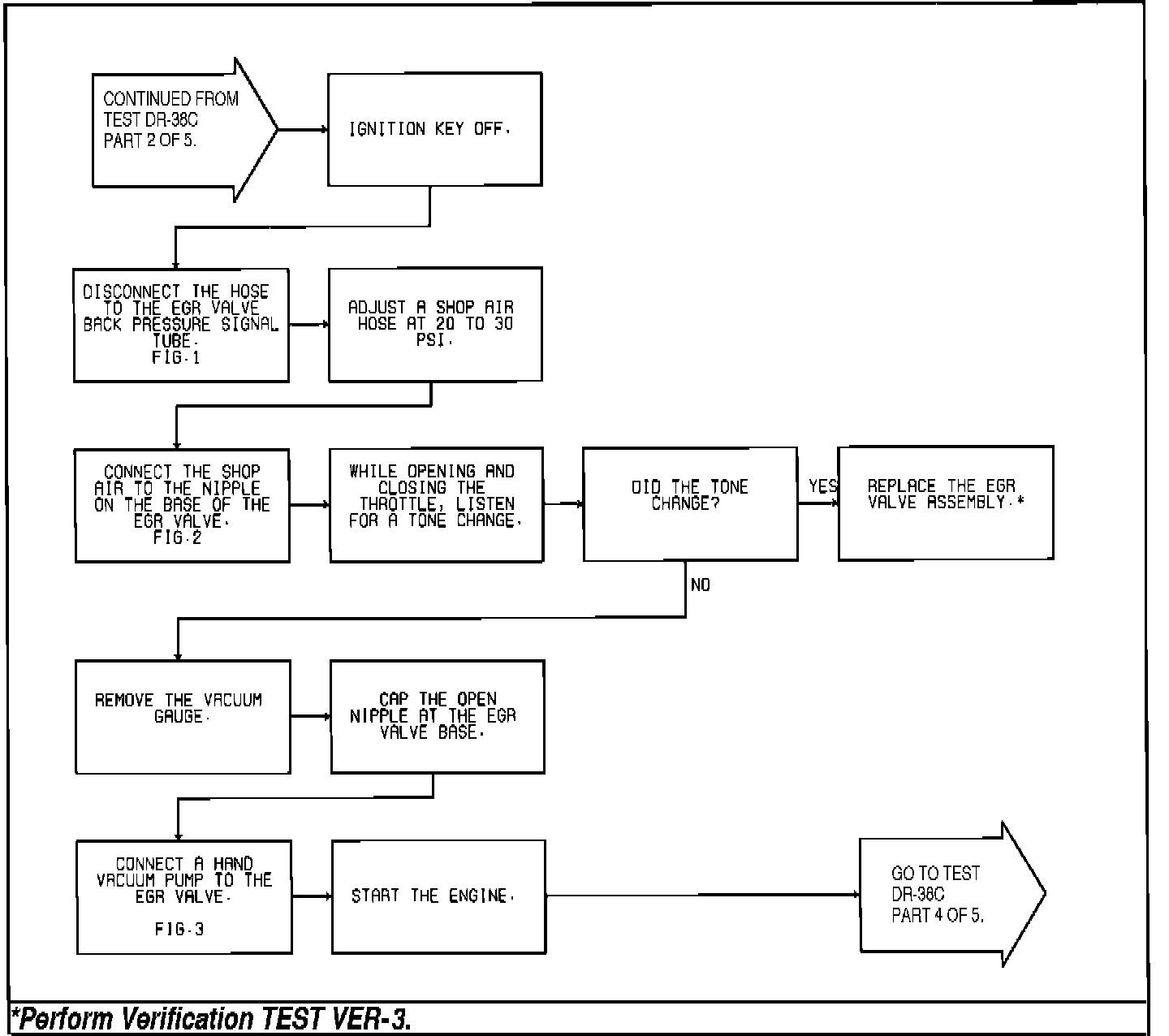

Test DR-38C - Checking EGR Operation (Federal Emissions):

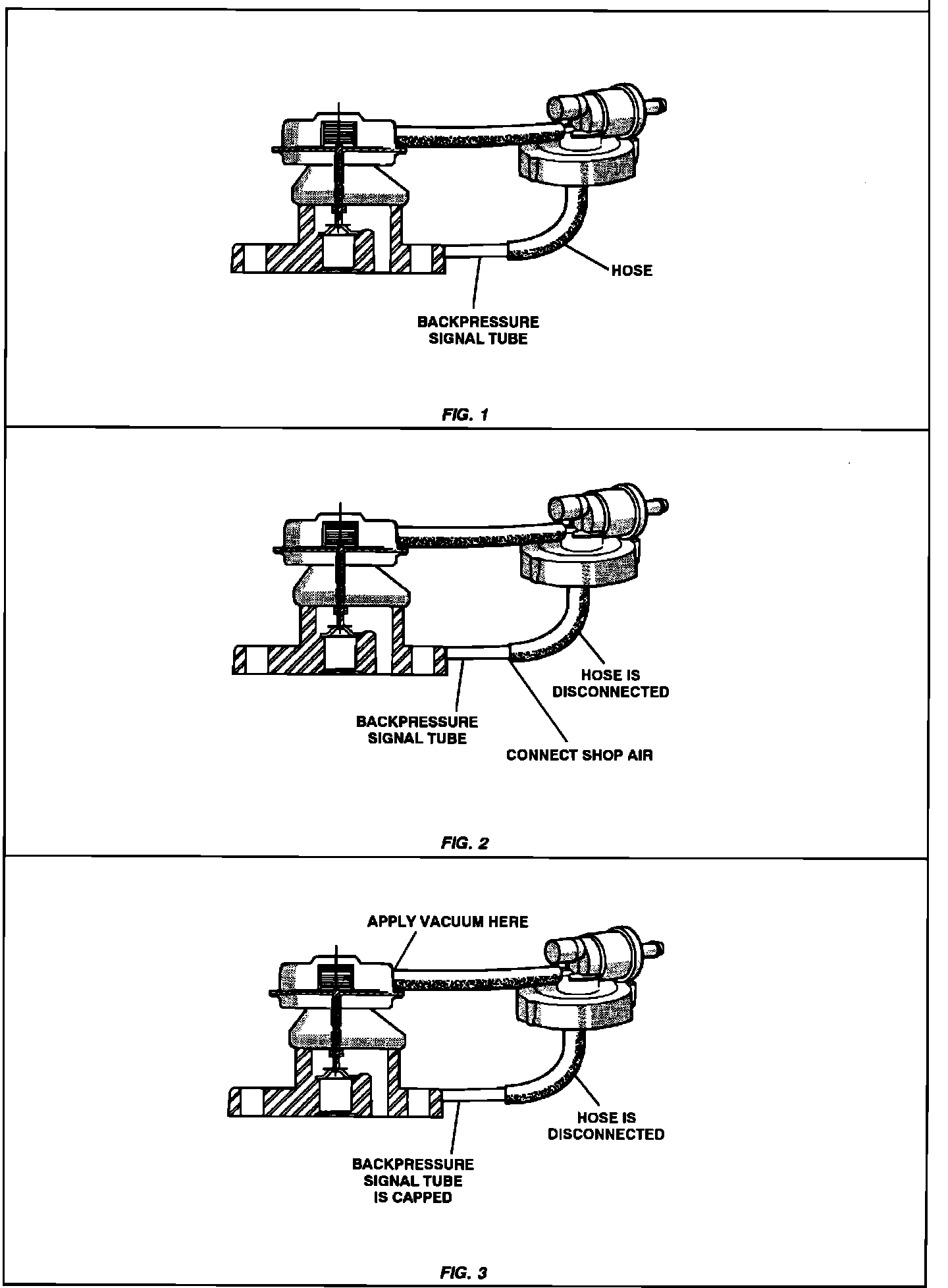

Checking EGR Operation (Federal Emissions):
