Home >> Dodge >> 1991 >> Shadow Convertible L4-153 2.5L SOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-19A Repairing "A/C Clutch Relay Circuit" Fault >> Part 1 of 4

Part 1 of 4

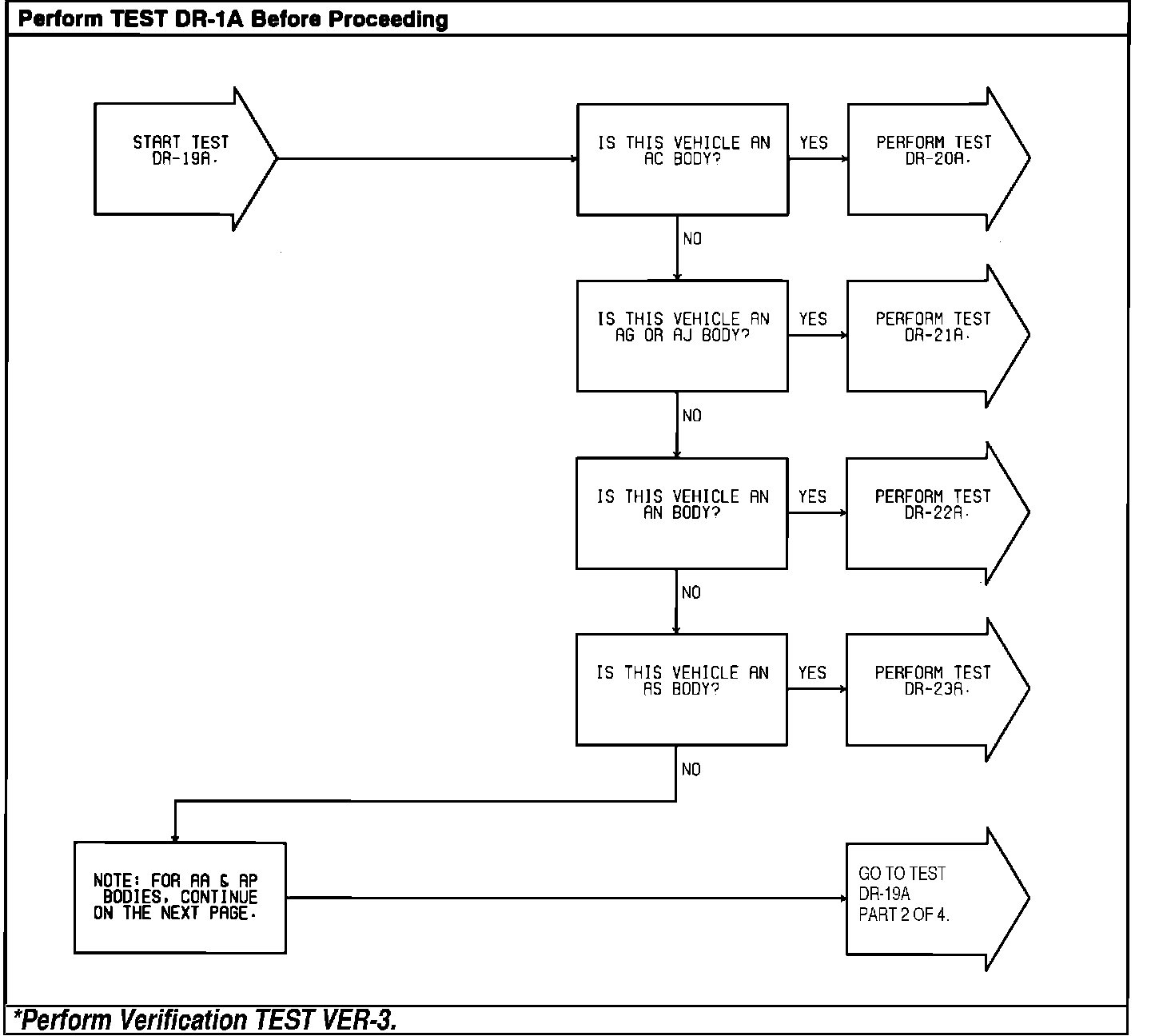

Test DR-19A - "A/C Clutch Relay Circuit":
