Home >> Dodge >> 1991 >> Shadow Convertible L4-153 2.5L SOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brakes / Traction Control Systems >> Test 5 - Low Fluid/Parking Brake Fault >> Test 5D

Test 5D

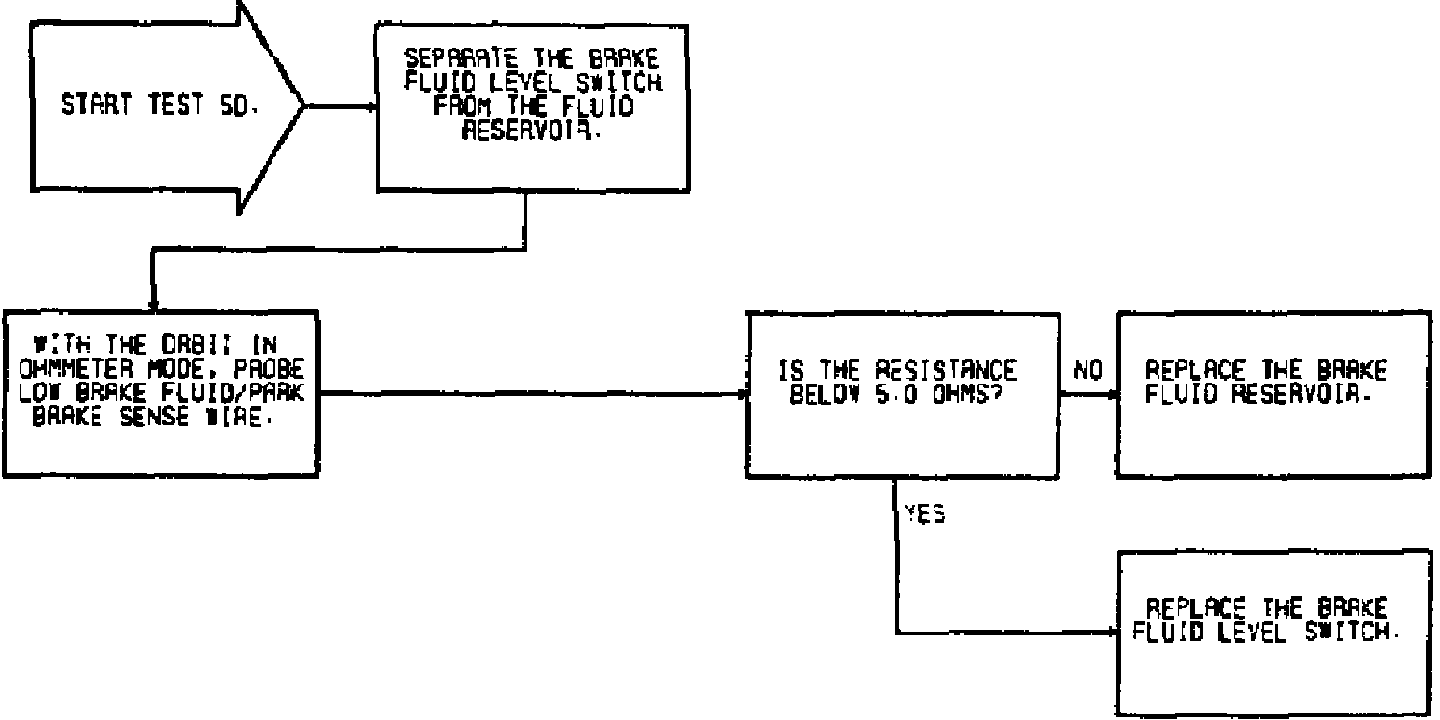

Fig. 108 Test 5D:
