Power Window Motor: Locations

Two Door Model

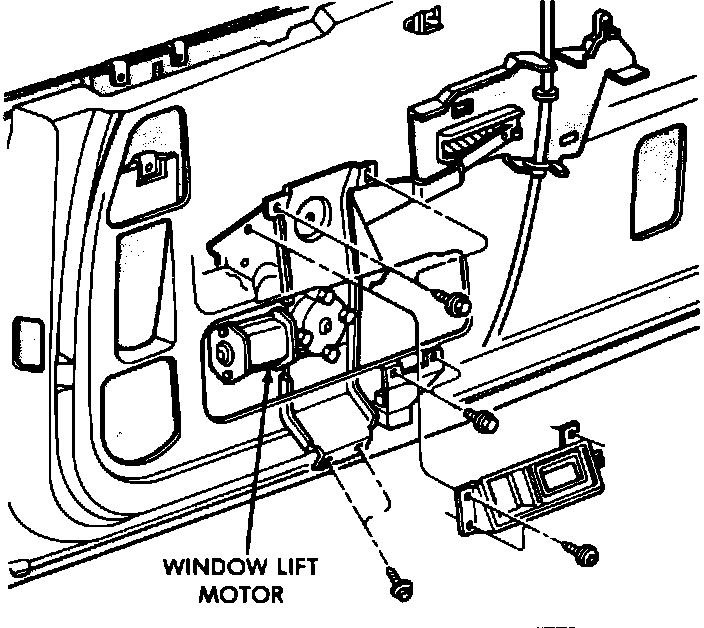

Power Window Motor Location:

The window regulator is a conventional sector gear design. The power window motor is attached to the window regulator. The window motor/regulator assembly is attached to the inner door panel of each front door.

Four Door Model

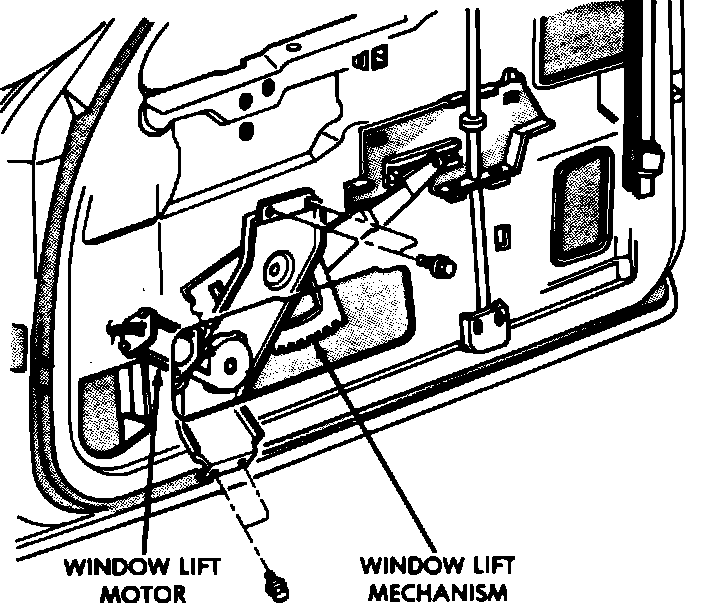

Power Window Motor Location:

Power Window Components:

The front window regulator is a conventional sector gear design. The rear window regulator is a flex drive design. The power window motor is attached to the window regulator. The window motor/regulator assembly is attached to the inner door panel of each door.
