Seat Belt: Service and Repair

Front Seat Belt Retractor:

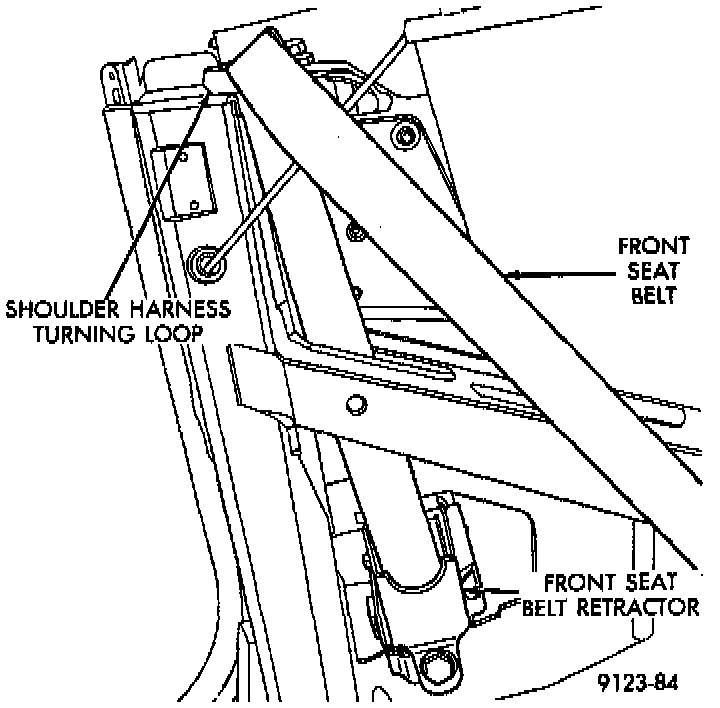

FRONT SEAT BELT RETRACTOR REMOVAL
1. Remove quarter trim panel as necessary to gain access to seat belt retractor.
2. Remove bolt holding shoulder harness turning loop to inner quarter panel.
3. Remove bolt holding seat belt retractor to inner quarter panel.
4. Separate seat belt from vehicle.
5. Reverse the preceding operation for installation.

Rear Seat Belt Retractor:

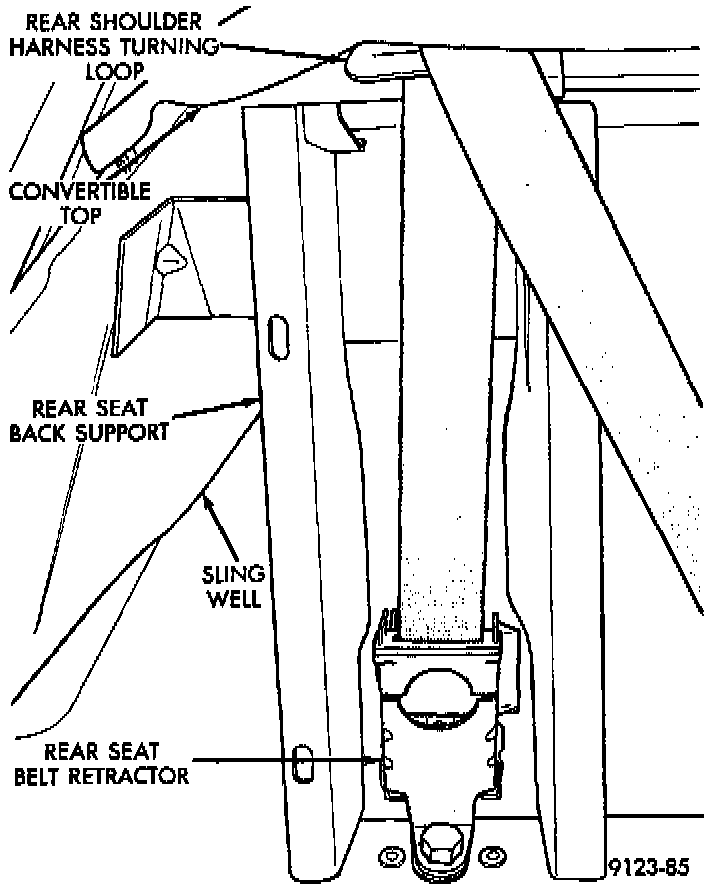

REAR SEAT BELT RETRACTOR REMOVAL
1. Remove quarter trim panel as necessary to gain access to the rear seat belt retractor.
2. Remove snap-on cover from shoulder harness turning loop.
3. Remove bolt holding turning loop to rear seat back support reinforcement.
4. Remove bolt holding retractor to rear seat back support reinforcement.
5. Separate retractor from vehicle.
6. Reverse the preceding operation for installation.
