Ignition Coil: Locations

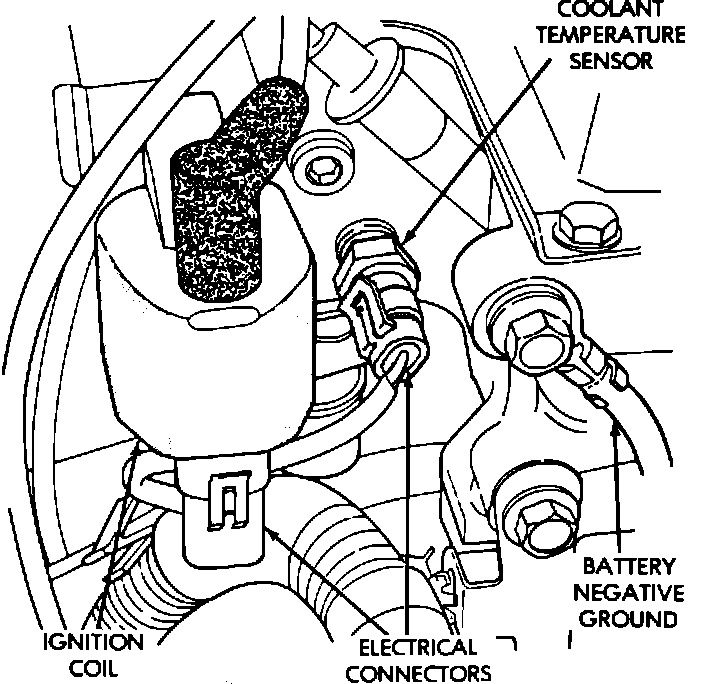

Coolant Temperature Sensor And Ignition Coil:
The Ignition Coil is mounted on the side of the engine.
